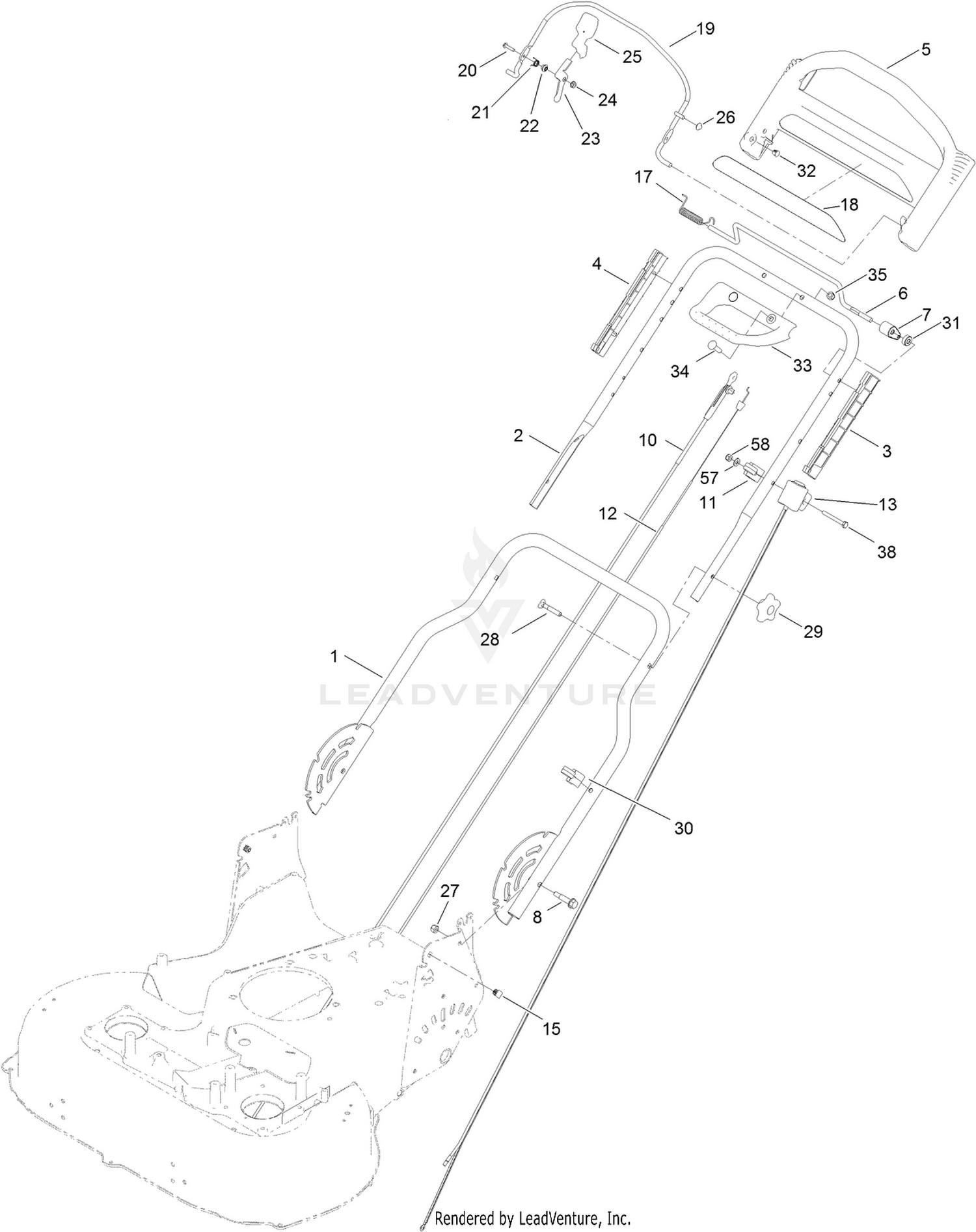

Handle and Electrical Assembly
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-5204-05 | HANDLE-LOWER Price: $93.99 |
| 2 | 132-4484-05 | HANDLE-UPPER Price: $50.99 |
| 3 | 105-6842 | GUIDE-LH Price: $7.99 |
| 4 | 105-6841 | GUIDE-RH Price: $7.99 |
| 5 | 104-8678 | HANDLE-CONTROL Price: $78.99 |
| 6 | 136-7150 | BAR-CONTROL, TRACTION Price: $15.99 |
| 7 | 127-6842 | LEVER-TRACTION Price: $3.99 |
| 8 | 139-1694 | BOLT-SHOULDER, HHF Price: $3.09 |
| 10 | 133-1998 | CABLE-BRAKE Price: $41.99 |
| 11 | 136-5864 | ANCHOR-CABLE Price: $2.69 |
| 12 | 127-6867 | CABLE-TRACTION Price: $25.99 |
| 13 | 117-5975 | SWITCH HOUSING ASM Price: $18.99 |
| 15 | 132-4516 | PLUG-SQUARE Price: $0.89 |
| 17 | 136-7166 | SPRING-TORSION Price: $2.99 |
| 18 | 120-3911 | DECAL-HANDLE Price: $14.99 |
| 19 | 108-3788-03 | BAIL-BRAKE Price: $40.99 |
| 20 | 106-9169 | SCREW-HWH Price: $7.29 |
| 21 | 107-7462 | SPRING-TORSION Price: $7.89 |
| 22 | 107-7463 | SPACER Price: $3.19 |
| 23 | 138-3220 | LEVER Price: $2.59 |
| 24 | 139-1712 | NUT-HEX FLANGE Price: $0.79 |
| 25 | 112-8884 | KNOB Price: $6.09 |
| 26 | 3290-337 | NUT-SPEED Price: $1.19 |
| 27 | 119-4038 | NUT-HEX Price: $0.31 |
| 28 | 137-3107 | SCREW-HANDLE Price: $1.69 |
| 29 | 117-5976 | KNOB-HANDLE Price: $2.49 |
| 30 | 114-7988 | GUIDE-CABLE Price: $2.59 |
| 31 | 130-2343 | SPACER Price: $0.89 |
| 32 | 104-9368 | PLUG-DOME Price: $0.19 |
| 33 | 131-0847 | HANDLE-ASSIST, TRACTION Price: $13.99 |
| 34 | 139-1702 | BOLT-CARRIAGE Price: $1.29 |
| 35 | 137-4808 | NUT-ACORN Price: $1.59 |
| 38 | 137-3034 | SCREW-HH Price: $0.89 |
| 57 | 139-1699 | WASHER-FLAT Price: $0.89 |
| 58 | 137-3094 | NUT-HEX Price: $0.39 |
