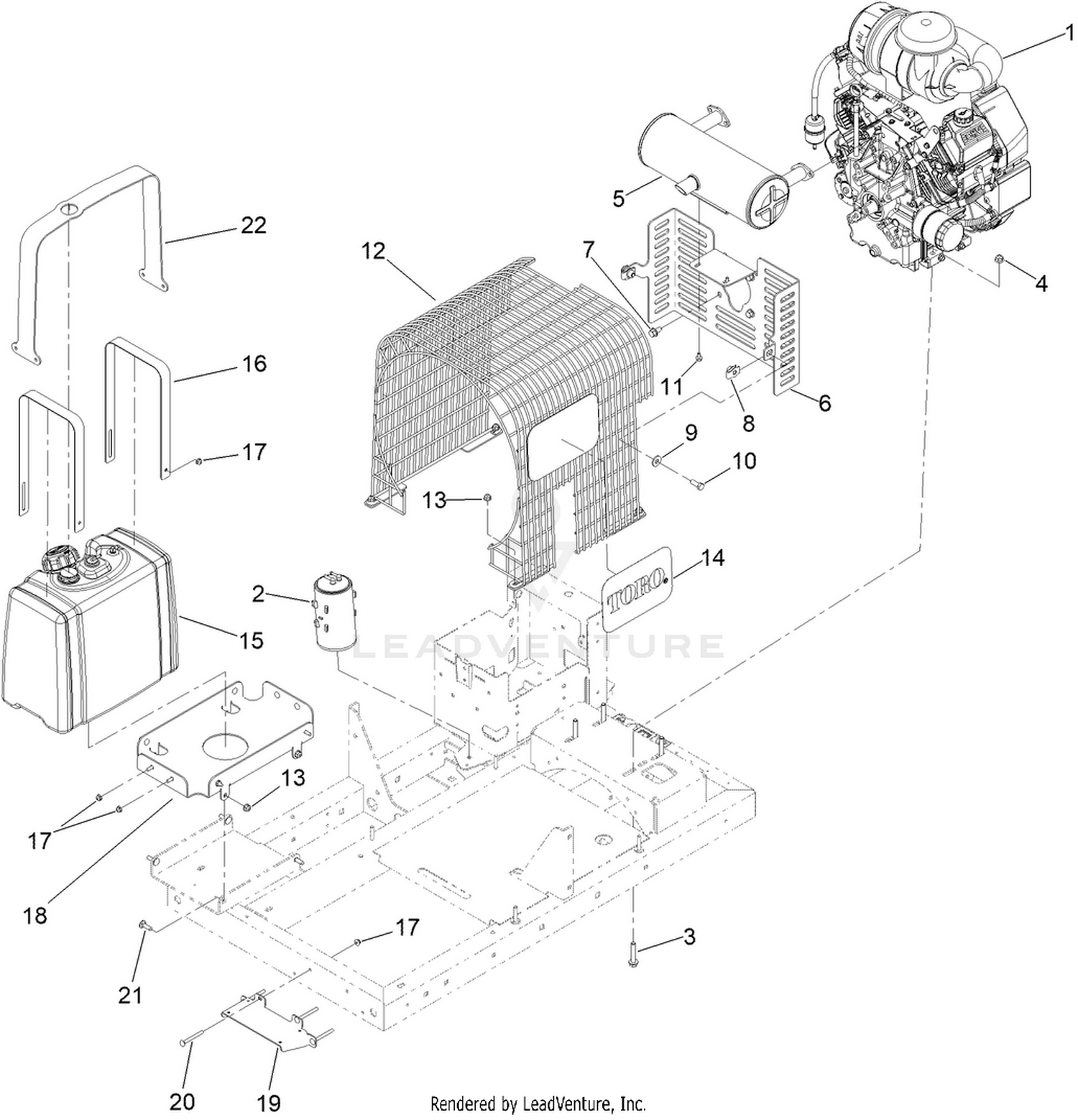

Engine, Muffler and Fuel Tank Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 127-8685 | CANISTER-CARBON Price: $46.53 |
| 3 | 66-9302 | SCREW-HHF, WHIZ Price: $4.49 |
| 4 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 5 | 112-6862 | MUFFLER Price: $187.77 |
| 6 | 119-6171-03 | MOUNT-MUFFLER Price: $148.84 |
| 7 | 110-1718 | SCREW-HHF Price: $1.84 |
| 8 | 105-4886 | NUT-TINNERMAN Price: $2.37 |
| 9 | 80-6990 | WASHER-HARDENED Price: $3.06 |
| 10 | 323-6 | SCREW-HH Price: $0.66 |
| 11 | 33103-012 | SCREW-HHF Price: $3.21 |
| 12 | 112-6876 | GRILL-TOP Price: $231.74 |
| 13 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 14 | 92-1242 | DECAL Price: $20.82 |
| 15 | 115-9048 | FUEL TANK ASM Price: $656.46 |
| 16 | 119-6285 | STRAP-HOLD DOWN, TANK Price: $23.28 |
| 17 | 104-7201 | NUT-HF Price: $0.69 |
| 18 | 145-7461-01 | MOUNT-TANK, 5GA [RED] Price: $79.74 |
| 19 | 140-6766-01 | PLATE-MOUNT Price: $32.50 |
| 20 | 3229-8 | SCREW-CARR Price: $2.99 |
| 21 | 3230-2 | BOLT-CARR Price: $0.47 |
