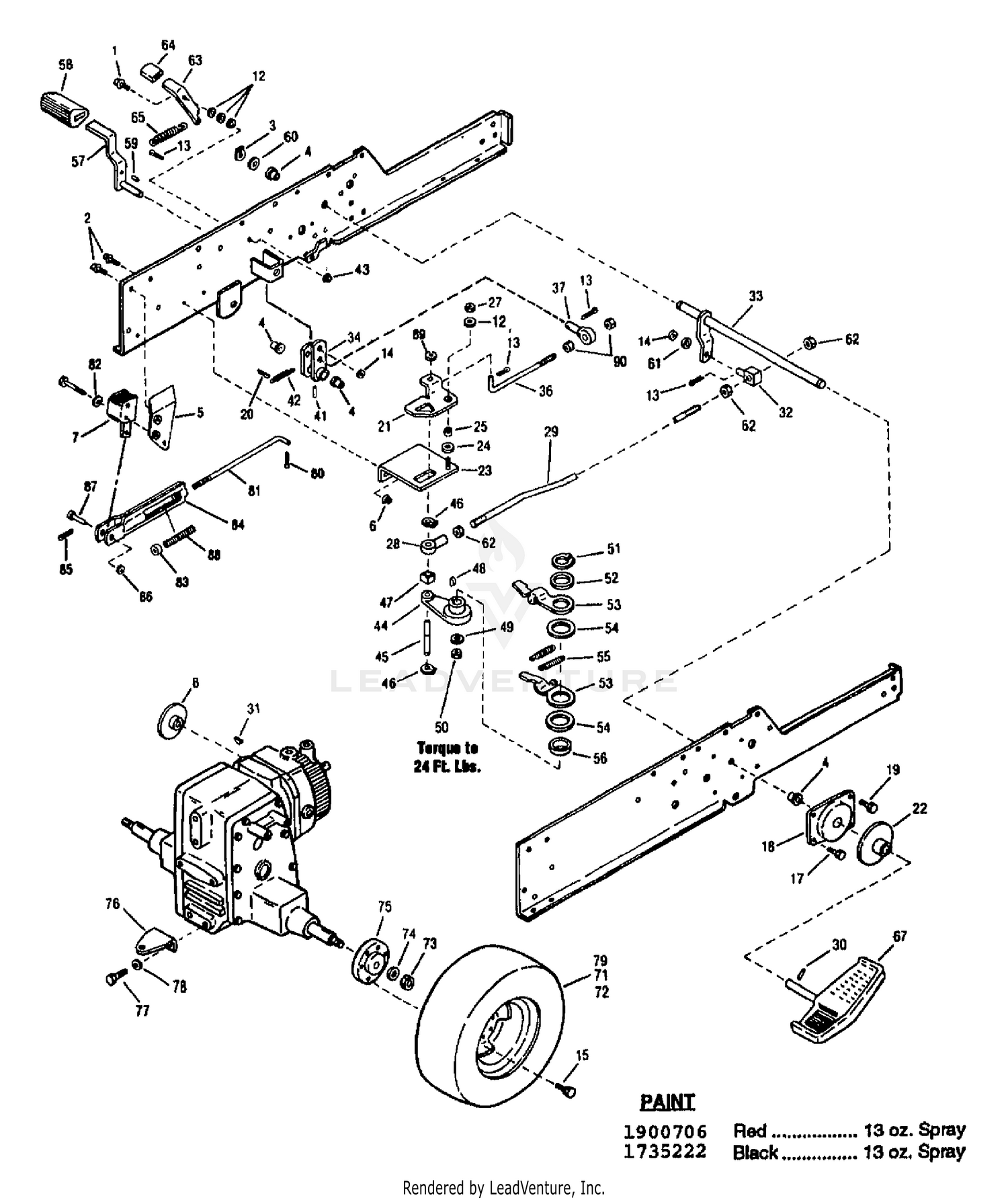

| Ref | Part Number | Description |
|---|
| 1 |
710-04042 |
Hex Flange Screw, 3/8-16 This part replaces 1186347. Price: $4.05 |
| 2 |
1186345 |
SCREW Not Available Price: |
| 3 |
1118808 |
RETAINING RING Not Available Price: |
| 4 |
1185802 |
BEARING-FL Not Available Price: |
| 5 |
1757390001 |
BRKT-TRANS SUPPORT Price: Call Us |
| 6 |
1186393 |
NUT-HFLK 3/8-16 ZP Price: $2.63 |
| 7 |
1763497 |
KIT-BRAKE Not Available Price: |
| 8 |
1756816 |
DISC-BRAKE {13062} Price: Call Us |
| 8 |
1758018 |
DISC-BRAKE {13060} Price: Call Us |
| 12 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 13 |
914-0507 |
Cotter Pin, 3/32 x .75 This part replaces 1100346. Price: $3.93 |
| 14 |
736-0275 |
FLAT WASHER This part replaces 1107382. Price: $5.99 |
| 15 |
0101085 |
BOLT-HUB Not Available Price: |
| 17 |
1738463 |
SCREW Not Available Price: |
| 18 |
1738462 |
CLUTCH Not Available Price: |
| 19 |
1185130 |
SCREW HEX Not Available Price: |
| 20 |
714-0115 |
Pin, Cotter, 1/8 x 1.00 This part replaces 1100350. Price: $3.48 |
| 21 |
1729213 |
PLATE Not Available Price: |
| 22 |
1738447 |
CONTROL DISC ASSEMBLY Not Available Price: |
| 23 |
1729445 |
PLATE Not Available Price: |
| 24 |
1703052 |
WASHER-1.75X.39X.0 Not Available Price: |
| 25 |
1732369 |
SPACER-.62 Not Available Price: |
| 27 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. This part replaces 1110108. Price: $4.02 |
| 28 |
1721612 |
ROD END Not Available Price: |
| 29 |
1747514 |
ROD-SPEED Not Available Price: |
| 30 |
915-0246 |
Pin, Spring, 3/16 x 1.25 Not Available This part replaces 1185232. Price: |
| 31 |
914-0868 |
KEY-WOODRUFF .188X.75 This part replaces 1104436. Price: $3.50 |
| 32 |
1751848 |
SWIVEL Not Available Price: |
| 33 |
1754085 |
SHAFT-SPEED CONTROL Price: Call Us |
| 34 |
1756812 |
ARM Not Available Price: |
| 36 |
1759491 |
BRAKE ROD CONTROL Not Available Price: |
| 37 |
1747507 |
SWIVEL Not Available Price: |
| 41 |
715-0120 |
Spiral Pin This part replaces 1732147. Price: $9.14 |
| 42 |
1746769 |
SPRING EXTENSION Price: $14.30 |
| 43 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 44 |
1722151 |
SPEED CONTROL ARM Not Available Price: |
| 45 |
1734563 |
CONTROL PIN Not Available Price: |
| 46 |
1118802 |
RING-RETAI Not Available Price: |
| 47 |
1720699 |
BLOCK Price: Call Us |
| 48 |
1104435 |
KEY-WOODRUFF 1/8 x 5/8 Not Available Price: |
| 49 |
736-0326 |
Flat Washer,.510 x 1.00 This part replaces 1107385. Price: $3.89 |
| 50 |
912-0384 |
Hex Lock Nut, 1/2-13 This part replaces 1110110. Price: $6.07 |
| 51 |
1185732 |
RING-RET Not Available Price: |
| 52 |
736-0246 |
FLAT WASHER 1.25 ID x 2.0 OD x .060 Not Available This part replaces 1720529. Price: |
| 53 |
1720523 |
ARM NEUTRALIZER Not Available Price: |
| 54 |
1720361 |
THRUST WASHER Not Available Price: |
| 55 |
1720928 |
EXTENSION SPRING Not Available Price: |
| 56 |
1720706 |
BEARING Not Available Price: |
| 57 |
1755510 |
PEDAL BRAK Not Available Price: |
| 58 |
1728694 |
FOOT REST Not Available Price: |
| 59 |
1120209 |
ROLL PIN . Not Available Price: |
| 60 |
1715301 |
WASHER-1.115X.637X.06 Price: $8.45 |
| 61 |
936-0117 |
FLAT WASHER This part replaces 1705108. Price: $6.20 |
| 62 |
1186246 |
NUT-JAM:SPECIAL Not Available Price: |
| 63 |
1729683001 |
LOCK-BRAKE Not Available Price: |
| 64 |
1734553 |
GRIP Not Available Price: |
| 64 |
1754210 |
GRIP Not Available Price: |
| 65 |
1726640 |
SPRING Not Available Price: |
| 67 |
1754597001 |
PEDAL-FOOT Not Available Price: |
| 71 |
1764747 |
TIRE 23X10 Not Available Price: |
| 72 |
934-0255 |
TUBELESS VALVE This part replaces 1718086. Price: $3.83 |
| 73 |
1120390 |
NUT-HK 3 Not Available Price: |
| 74 |
1708599 |
SPACER-1.812X.765X Not Available Price: |
| 75 |
1726679 |
HUB-WHEEL Not Available Price: |
| 75 |
1747088 |
HUB-WHEEL {13062} Price: Call Us |
| 76 |
1724698001 |
DRAWBAR HITCH Not Available Price: |
| 77 |
710-3032 |
Hex Cap Screw, 1/2-13 x 1.25 This part replaces 1100055. Price: $5.66 |
| 78 |
736-0921 |
Lock Washer, 1/2 This part replaces 1100245. Price: $3.90 |
| 79 |
1766131 |
RIM-WHEEL Not Available Price: |
| 80 |
714-0474 |
Cotter Pin This part replaces 1100349. Price: $4.08 |
| 81 |
1757504 |
BRAKE ROD Not Available Price: |
| 82 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 1100243. Price: $3.33 |
| 83 |
1757246 |
NUT SPECIA Not Available Price: |
| 84 |
1757503 |
SPRING-YOKE ASSM Not Available Price: |
| 85 |
1187385 |
COTTER PIN Not Available Price: |
| 86 |
736-3020 |
Flat Washer .271 ID x .630 OD This part replaces 1107381. Price: $5.94 |
| 87 |
1757599 |
CLEVIS PIN Not Available Price: |
| 88 |
1757501 |
SPRING COM Not Available Price: |
