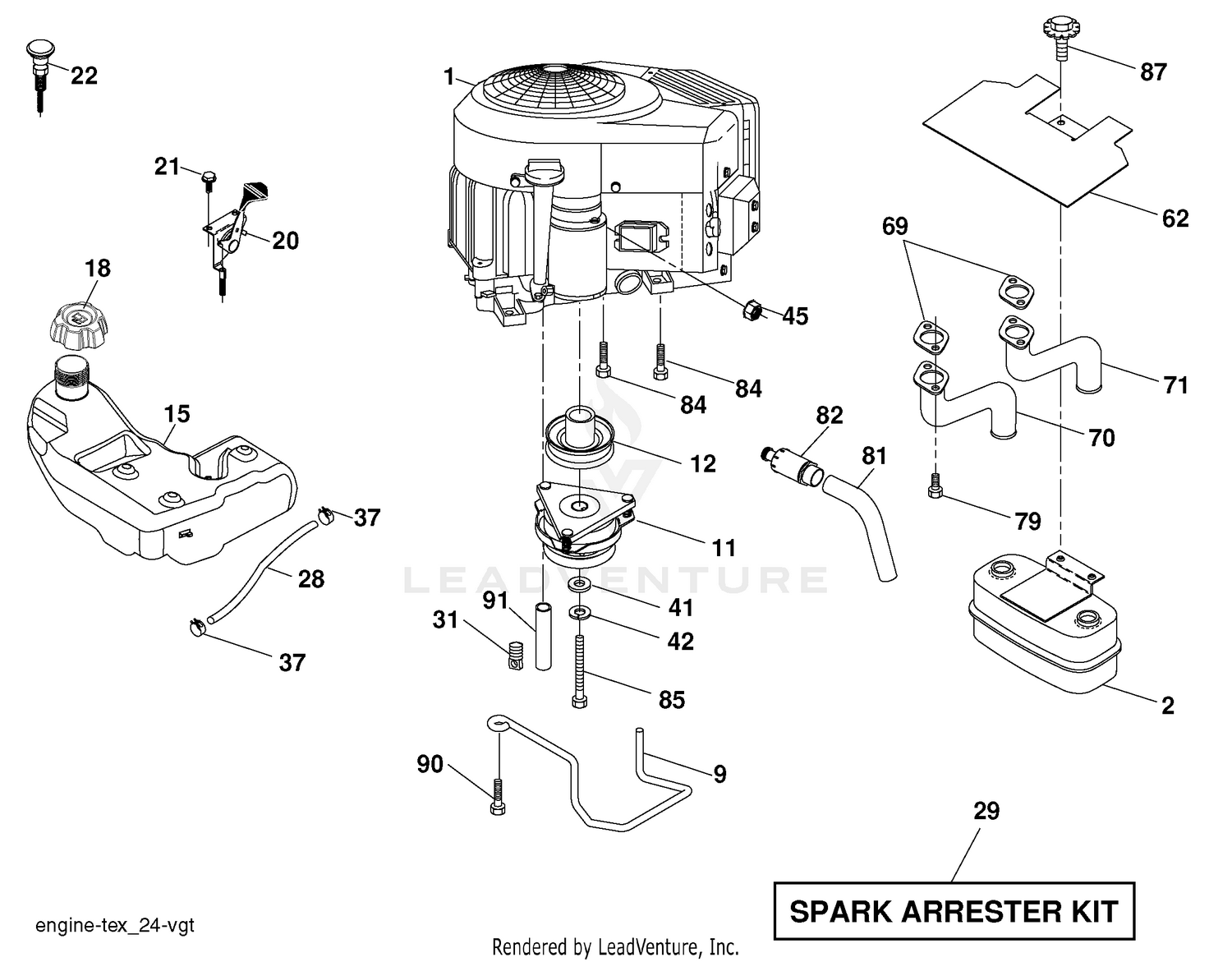

| Ref | Part Number | Description |
|---|
| 1 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 2 |
149723 |
Muffler Price: Call Us |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 3 |
325-12 |
SCREW-HH Price: $2.27 |
| 4 |
3289-25 |
SCREW-SFH Price: $25.39 |
| 6 |
92-2987-03 |
ROPS ASM Price: $3,178.31 |
| 7 |
112-0169 |
SEATBELT ASM-SERVICE This part replaces 21-4191. Price: $283.31 |
| 8 |
324-5 |
SCREW-HH Price: $0.54 |
| 9 |
194320 |
Keeper Asm. Belt Engine Price: Call Us |
| 9 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 10 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 11 |
179335 |
Clutch Electric Price: Call Us |
| 11 |
92-6050-03 |
GUARD ASM Price: $204.68 |
| 12 |
194343 |
Pulley Engine Price: Call Us |
| 12 |
92-6052-03 |
BUMPER-REAR Price: $95.54 |
| 13 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 14 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 15 |
193499 |
Tank Fuel 4.0 Price: Call Us |
| 18 |
195951 |
Cap Asm Price: Call Us |
| 20 |
175437X428 |
Control Throttle Price: Call Us |
| 21 |
191611 |
Screw 10 x 3/4 Single Lead-Hex Price: Call Us |
| 22 |
187767X428 |
Control Choke Price: Call Us |
| 28 |
401135 |
Fuel Line Price: Call Us |
| 29 |
137180 |
Spark Arrester Kit Price: Call Us |
| 31 |
145006 |
Clip Push-In Hinged Price: Call Us |
| 37 |
123487X |
Clamp Hose Price: Call Us |
| 41 |
126197X |
Washer 1-1/2 OD x 15/32 ID x .250 Price: Call Us |
| 42 |
STD551143 |
Washer Lock 7/16 Price: Call Us |
| 45 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 62 |
146629 |
Shield Heat Muffler Price: Call Us |
| 69 |
165391 |
Gasket Price: Call Us |
| 70 |
159955 |
Tube Exhaust LH Price: Call Us |
| 71 |
160589 |
Tube Exhaust RH Price: Call Us |
| 79 |
183906 |
Screw Socket Head Price: Call Us |
| 81 |
148456 |
Tube Drain Oileasy Price: Call Us |
| 82 |
181654 |
Plug Drain Oil Price: Call Us |
| 84 |
17060620 |
Screw 3/8-16 x 1-1/2 Price: Call Us |
| 85 |
179953 |
Bolt Hex 7/16-20 x 3.75 Gr. 5 Price: Call Us |
| 87 |
198239 |
Bolt 5/16-18 unc x 1 w/Sems Price: Call Us |
| 90 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
