| Ref | Part Number | Description |
|---|
| 1 |
3220-3 |
NUT-HJ Price: $0.28 |
| 1 |
537205101 |
CONTROL Price: $5.99 |
| 2 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 2 |
537202701 |

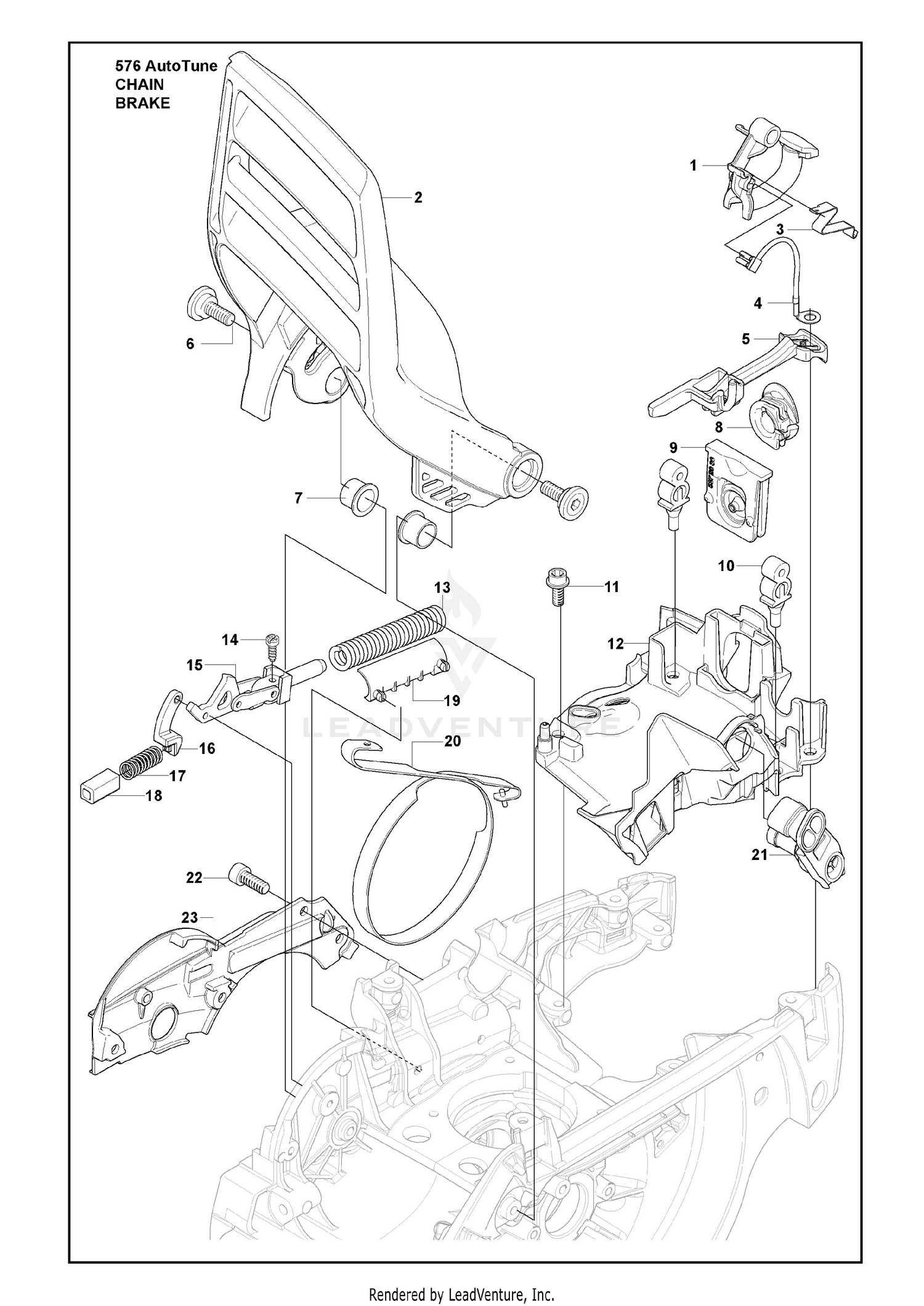

CHAIN BRAKE Price: $19.99 |
| 3 |
323-8 |
SCREW-HH Price: $1.20 |
| 3 |
503869702 |
SPRING Price: $3.99 |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 4 |
537208701 |
CABLE Price: $5.99 |
| 5 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 5 |
537205201 |
CHOKE CONTROL Price: $7.99 |
| 6 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 6 |
537209001 |
SCREW Price: $3.99 |
| 7 |
537202801 |
BUSHING Price: $4.99 |
| 7 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 8 |
537205301 |
SEALING Price: $4.99 |
| 8 |
75-3270-03 |
HUB-PIVOT, TRACTION This part replaces 75-3270. Price: $144.73 |
| 9 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 9 |
537203801 |
GROMMET Price: $8.99 |
| 10 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 10 |
597909701 |
DAMPNER This part replaces 503869301. Price: $5.99 |
| 11 |
49-6440-03 |
PEDAL-FORWARD This part replaces 49-6440. Price: $84.90 |
| 11 |
503200712 |
SCREW Price: $4.99 |
| 12 |
49-6470 |
DISCONTINUED Price: Call Us |
| 12 |
537203501 |
BASE Price: $11.99 |
| 13 |
503709902 |
BRAKE SPRING This part replaces 503709901. Price: $5.99 |
| 13 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 14 |
49-6430 |
REVERSE PAD Price: $58.99 |
| 14 |
503212810 |
SCREW Price: $2.99 |
| 15 |
501875304 |
KNEE JOINT Price: $19.99 |
| 16 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 16 |
537203101 |
LEVER Price: $9.99 |
| 17 |
503436501 |
LOCK SPRING Price: $3.99 |
| 17 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 18 |
537210701 |
GUIDE Price: $3.99 |
| 18 |
75-6710 |
DECAL - FAST/SLOW Price: $5.87 |
| 19 |
233-42 |
KNOB Price: $12.88 |
| 19 |
503792702 |
SUPPORT This part replaces 503792701. Price: $4.99 |
| 20 |
503752202 |
BRAKE BAND Price: $9.99 |
| 20 |
75-6490 |
LEVER ASM Price: $78.45 |
| 21 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 21 |
537203601 |
SLEEVE Price: $7.99 |
| 22 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 22 |
503217072 |
SCREW Price: $2.99 |
| 23 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 24 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 26 |
7-3900 |
PAD-BRAKE Price: $27.35 |
| 28 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 29 |
63-7733 |
LH BRAKE CABLE ASM Price: $210.39 |
| 30 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 31 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 32 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 33 |
75-1440-03 |
PEDAL-BRAKE, LH This part replaces 75-1440. Price: $207.74 |
| 34 |
256-42 |
BUSHING Price: $7.03 |
| 35 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 36 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 37 |
75-2170-03 |
TUBE-CONTROL, PUMP This part replaces 75-2170. Price: $103.73 |
| 38 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 39 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 40 |
3272-10 |
PIN-COTTER Price: $0.25 |
