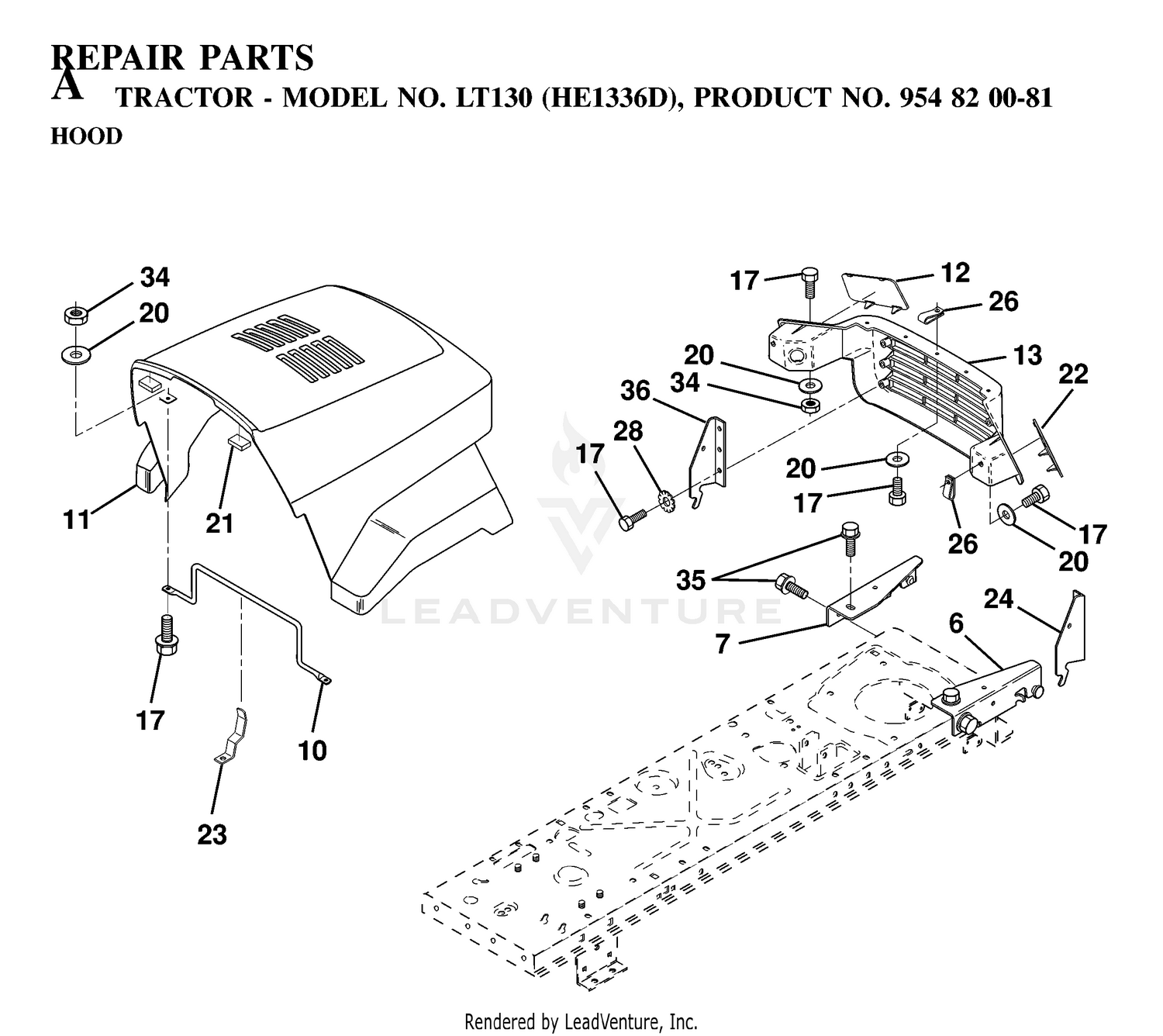

| Ref | Part Number | Description |
|---|
| 1 |
321-8 |
SCREW-HH Price: $0.34 |
| 2 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 3 |
13-6070 |
BUSHING Price: $231.61 |
| 4 |
13-6030 |
SHEAVE Price: $456.80 |
| 5 |
13-2240 |
KEY-SQUARE Price: $14.31 |
| 6 |
13-3790 |
FAN SHAFT Price: $671.39 |
| 6 |
532140051 |
BRACKET ASSY HOOD Price: $3.68 |
| 7 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 7 |
532140050 |
BRACKET ASSY Price: $3.99 |
| 8 |
3217-7 |
NUT-HEX Price: $0.28 |
| 9 |
13-2810 |
SQUARE KEY Price: $31.13 |
| 10 |
13-3350-01 |
MOUNTING BRKT This part replaces 13-3350. Price: $59.51 |
| 10 |
532130850 |
BRACE HOOD Price: $2.99 |
| 11 |
532140142 |
HOOD - LR Price: $339.99 |
| 11 |
67-5360 |
DECAL-DANGER This part replaces 13-6470. Price: $14.99 |
| 12 |
13-3850-01 |
BOOT-BLOWER This part replaces 13-3850. Price: $344.08 |
| 12 |
532130986 |
LENS.LR.LH.HUSQV. Price: $12.99 |
| 13 |
121-2839 |
DECAL-CAUTION This part replaces 13-6410. Price: $25.19 |
| 13 |
532404673 |
GRILLE.KIT.SERVICE.HUSQ.LR This part replaces 532130984. Price: $449.99 |
| 14 |
321-2 |
SCREW-HH Price: $2.79 |
| 15 |
323-7 |
SCREW-HH Price: $0.65 |
| 16 |
3244-14 |
SCREW-SET, SQH Price: $7.19 |
| 17 |
3218-5 |
NUT-JAM Price: $0.27 |
| 17 |
596582501 |
Bolts This part replaces 874780410. Price: $2.99 |
| 21 |
532126938 |
BUMPER HOOD T Price: $3.99 |
| 22 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 22 |
532130985 |
LENS RH Price: $13.22 |
| 23 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 23 |
532139969 |
HOOD LATCH Price: $3.45 |
| 24 |
325-6 |
SCREW-HH Price: $1.42 |
| 24 |
532142873 |
BRACKET PIVOT Price: $2.99 |
| 25 |
56-6220 |
BEARING This part replaces 251-243. Price: $122.98 |
| 26 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 26 |
532052921 |
CLIP TINNERMAN Price: $2.68 |
| 27 |
3217-9 |
NUT-HH Price: $0.37 |
| 28 |
3247-2 |
SCREW-SET, HSH Price: $0.68 |
| 28 |
811050400 |
Washer, Lock, External Tooth 1/4 Price: $5.99 |
| 29 |
251-233 |
DISCONTINUED Price: Call Us |
| 30 |
13-1420-01 |
COVER-INSPECTION This part replaces 13-1420. Price: $31.70 |
| 31 |
32103-12 |
NUT-WING Price: $1.15 |
| 32 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 33 |
119-6263 |
BLOWER AND THROAT ASM This part replaces 13-6280. Price: $7,479.09 |
| 34 |
323-6 |
SCREW-HH Price: $0.66 |
| 34 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 35 |
13-6390-01 |
HANDLE-FLAP This part replaces 13-6390. Price: $134.01 |
| 35 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 36 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 36 |
532128445 |
BRACKET HOOD Price: $2.99 |
| 37 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 38 |
13-6360 |
ROD-LIFT, FLAP Price: $118.60 |
| 39 |
3218-6 |
NUT-JAM Price: $0.61 |
| 40 |
13-0330 |
BLOCK-PIVOT Price: $112.26 |
| 41 |
323-9 |
SCREW-HH Price: $1.29 |
| 42 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 43 |
321-3 |
SCREW-HH Price: $0.28 |
| 44 |
13-4760 |
DISCONTINUED Price: Call Us |
| 45 |
13-3130 |
END-FLAP Price: $26.55 |
| 46 |
321-5 |
SCREW-HH Price: $0.22 |
| 47 |
13-4700 |
LOWER FLAP ASM Price: $1,182.39 |
| 48 |
13-4560-03 |
WEIGHT-FLAP This part replaces 13-4560. Price: $25.30 |
| 49 |
321-8 |
SCREW-HH Price: $0.34 |
| 50 |
13-1390-01 |
RETAINER-FLAP This part replaces 13-1390. Price: $96.90 |
| 51 |
3217-5 |
NUT-HEX Price: $0.25 |
| 52 |
13-6090-01 |
SIDE GUARD WA This part replaces 13-6090. Price: $157.49 |
| 53 |
321-4 |
SCREW-HH Price: $0.99 |
| 54 |
322-1 |
SCREW-HH Price: $0.22 |
| 55 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 56 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 57 |
13-4800-01 |
BELT GUARD WA This part replaces 13-4800. Price: $1,224.67 |
| 58 |
32104-109 |
SCREW-HWH Price: $0.87 |
| 59 |
13-2640 |
V-BELT, ENGINE FAN Price: $355.29 |
