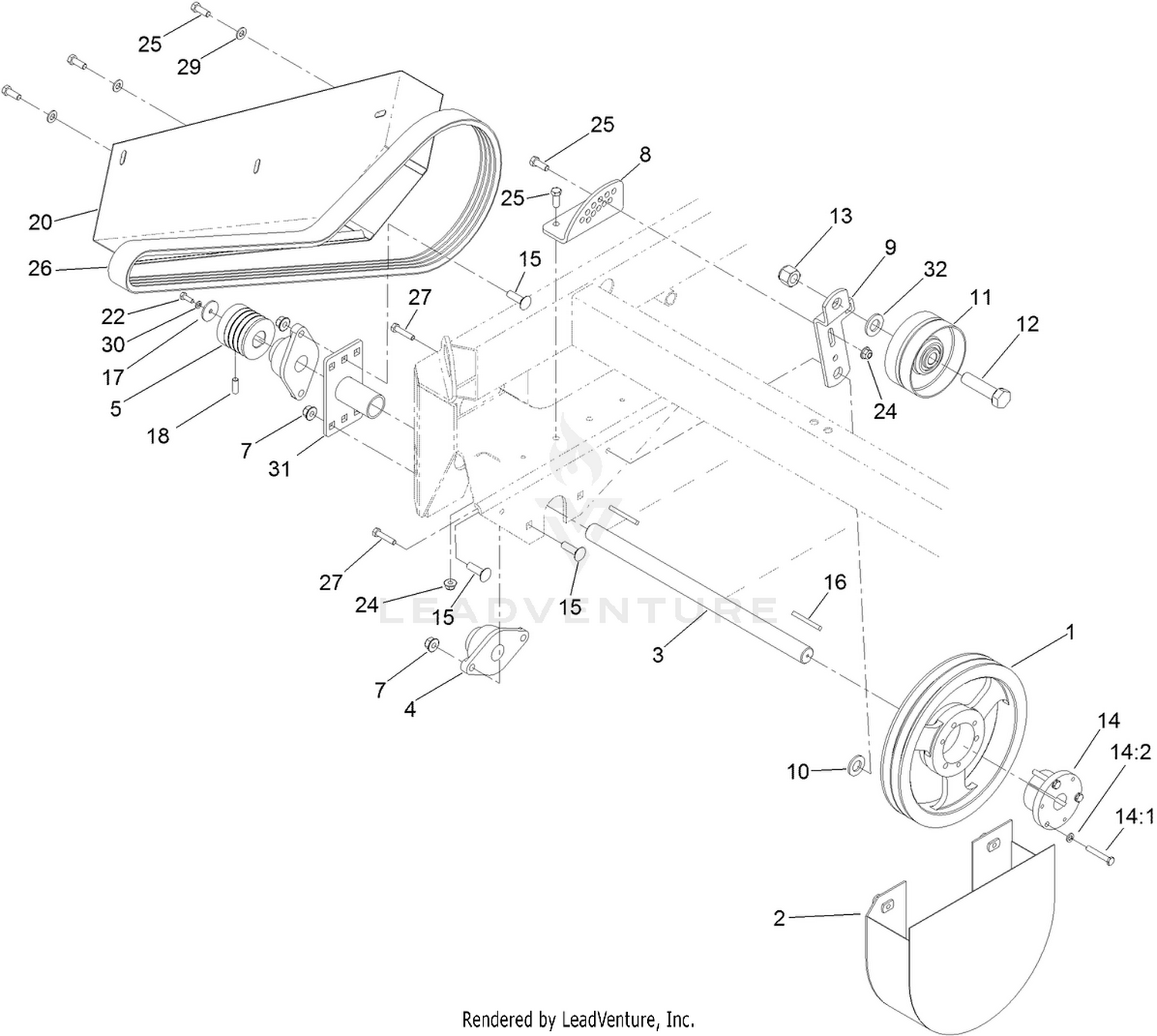

| Ref | Part Number | Description |
|---|
| 1 |
13-2670-01 |
SHEAVE This part replaces 13-2670. Price: $1,182.76 |
| 2 |
120-5914-03 |
GUARD-SHEAVE Price: $581.15 |
| 3 |
93-4032 |
SHAFT-JACK Price: $245.00 |
| 4 |
56-6230 |
BEARING-ROLLER Price: $72.34 |
| 5 |
140-2208 |
PULLEY-DRIVE This part replaces 93-4033-01. Price: $163.75 |
| 7 |
114-8417 |
NUT-HF, NI Price: $0.87 |
| 8 |
117-8538-03 |
BRACKET-IDLER ARM Price: $44.63 |
| 9 |
117-8469-03 |
BRACKET-PULLEY Price: $20.10 |
| 10 |
3-8448 |
WASHER-THRUST Price: $2.58 |
| 11 |
100-7631 |
PULLEY-IDLER Price: $146.29 |
| 12 |
328-25 |
SCREW-HH Price: $4.07 |
| 13 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 14 |
13-2680 |
BUSHING Price: $217.68 |
| 15 |
3232-3 |
BOLT-CARR Price: $2.14 |
| 16 |
68-3220 |
KEY-STOCK Price: $4.60 |
| 17 |
13-3710 |
WASHER Price: $3.05 |
| 18 |
3247-6 |
SCREW-SET Price: $1.02 |
| 20 |
121-2780-03 |
GUARD-LOWER, BELT Price: $142.41 |
| 22 |
321-4 |
SCREW-HH Price: $0.99 |
| 24 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 25 |
323-6 |
SCREW-HH Price: $0.66 |
| 26 |
93-4034 |
V-BELT Price: $204.67 |
| 27 |
322-7 |
SCREW-HH Price: $0.89 |
| 29 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 30 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 31 |
117-8506-03 |
MOUNT-GUARD Price: $49.01 |
