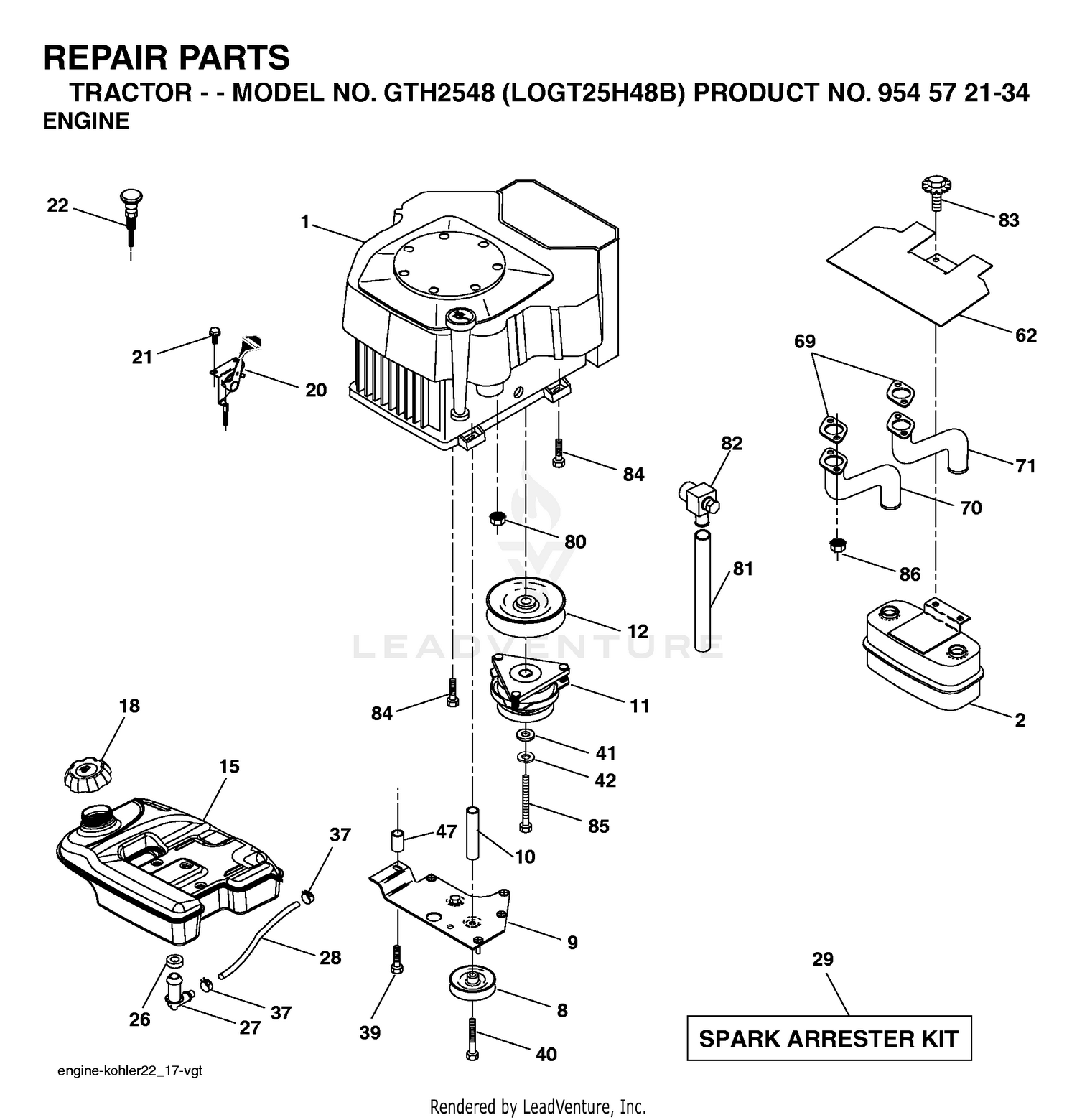

| Ref | Part Number | Description |
|---|
| 1 |
131-1821 |
MOUNT-ENGINE Price: $105.39 |
| 2 |
117-0667-0P |
BRACKET ASM-LH [PRIMED] This part replaces 117-0667-03. Price: $86.10 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 3 |
117-0666-0P |
BRACKET ASM-RH [PRIMED] This part replaces 117-0666-03. Price: $86.10 |
| 4 |
117-0669-0P |
BRACKET ASM-REAR MOUNT [PRIMED] This part replaces 117-0669-03. Price: $57.28 |
| 5 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 6 |
139-9940 |
SCREW-HH This part replaces 99-5132. Price: $1.99 |
| 7 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 8 |
532139123 |
PULLEY.IDLER.V. This part replaces 532121361. Price: $32.99 |
| 8 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 9 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 9 |
532177748 |
KEEPER ASM BELT ENGINE Price: $12.99 |
| 10 |
325-5 |
SCREW-HH Price: $1.20 |
| 10 |
532175287 |
BUSHING Price: $17.99 |
| 11 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 11 |
532179335 |
CLUTCH MZ ZTR GT.48/54"1.125" Price: $299.99 |
| 12 |
532143996 |
PULLEY ENG VGT ELECT CLUTCH Price: $37.99 |
| 12 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 13 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 14 |
323-7 |
SCREW-HH Price: $0.65 |
| 15 |
119-6039 |
PLUG-PLASTIC Price: $1.31 |
| 15 |
532179115 |
TANK.FUEL.5.0 LEFT.FILL.YTGT Price: $89.99 |
| 16 |
33114-030 |
SCREW-HH Price: $0.50 |
| 17 |
33114-020 |
SCREW-HH Price: $0.28 |
| 18 |
532179124 |
FUEL CAP This part replaces 532181803. Price: $29.99 |
| 18 |
56-2140 |
SCREW-HH Price: $4.17 |
| 19 |
92-0285 |
COUPLING ASM Price: $481.76 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 21 |
532189747 |
SCREW.HI-LO#13-16X5/8 This part replaces 532171875. Price: $14.99 |
| 22 |
532175441 |
CHOKE CONTROL This part replaces 532178148. Price: $24.99 |
| 25 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 26 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 27 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 28 |
532008542 |
FUEL LINE 42" This part replaces 532124703. Price: $5.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532145006 |
PUSH CLIP Price: $2.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 39 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 40 |
817490664 |
Screw TT 3/8-16 x 4 unc Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 47 |
532175288 |
BUSHING Price: $4.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 74 |
532162295 |
ELBOW STREET BRASS Price: $29.99 |
| 80 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
| 81 |
532188800 |
TUBE, DRAIN, OIL Price: $2.99 |
| 83 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
