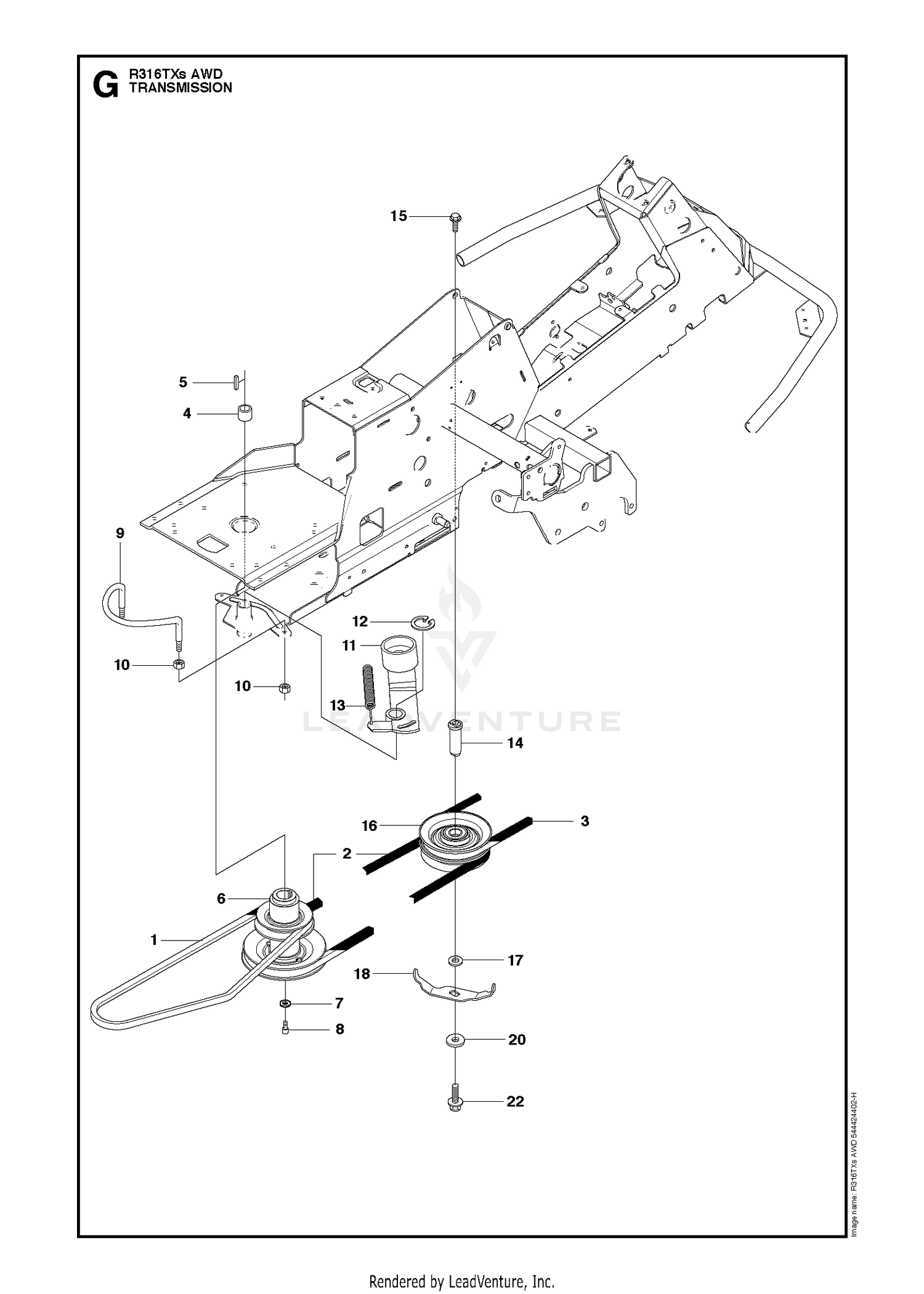

TRANSMISSION
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-8092 | SWASHPLATE Price: $863.05 |
| 1 | 589531201 | BELT Price: $27.99 |
| 2 | 599675902 | BELT KIT This part replaces 589530401. Price: $44.99 |
| 2 | 75-0400 | PLATE-THRUST Price: $41.27 |
| 3 | 110-6483 | BEARING KIT Price: $125.81 |
| 3 | 594978001 | BELT Price: $59.99 |
| 4 | 110-6471 | SEAL-LIP Price: $50.69 |
| 4 | 506509201 | SPACER Price: $9.99 |
| 5 | 506555901 | KEY Price: $3.99 |
| 5 | 95-4400 | WASHER-BACKUP Price: $7.74 |
| 6 | 535482401 | PULLEY Price: $69.99 |
| 6 | 69-3200 | RING-RETAINING Price: $20.29 |
| 7 | 111-9640 | SHAFT-AUXILIARY Price: Call Us |
| 7 | 506597501 | WASHER Price: $6.99 |
| 8 | 110-6472 | CYLINDER BLOCK KIT ASM Price: $1,735.97 |
| 8 | 506556002 | SCREW Price: $5.99 |
| 9 | 110-6473 | PLATE-VALVE (CLOCKWISE) Price: $593.29 |
| 9 | 506664501 | BELT GUIDE Price: $19.99 |
| 10 | 131-3800 | PIN-SLOTTED Price: Call Us |
| 10 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 11 | 535484401 | TENSIONER Price: $54.99 |
| 13 | 506665601 | SPRING Price: $24.99 |
| 14 | 581916401 | SHAFT This part replaces 544426101. Price: $19.99 |
| 15 | 506675402 | BOLT Price: $5.99 |
| 16 | 535482201 | PULLEY Price: $64.99 |
| 17 | 506775701 | WASHER Price: $4.99 |
| 18 | 544405301 | BELT GUIDE Price: $6.99 |
| 20 | 506597501 | WASHER Price: $6.99 |
| 22 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 25 | 69-3170 | RING-RETAINING Price: $11.40 |
| 26 | 75-0460 | BEARING-BALL Price: $175.71 |
| 29 | 110-6497 | NEUTRAL RETURN ARM ASM Price: $301.72 |
| 46 | 110-6481 | SEAL KIT Price: $140.87 |
