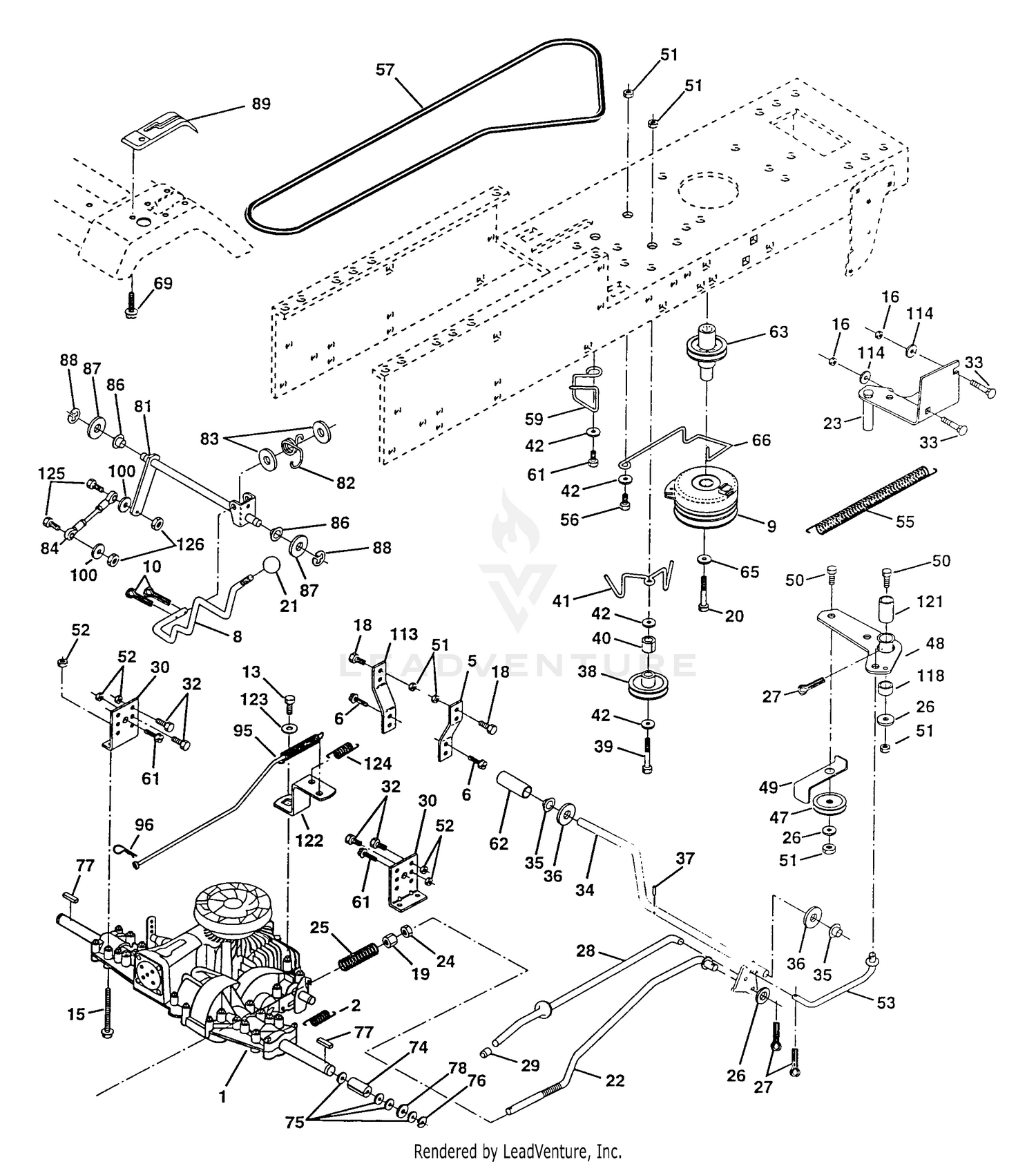

| Ref | Part Number | Description |
|---|
| 2 |
146682 |
Spring, Return, Brake Price: Call Us |
| 5 |
121520X |
Strap Torque R Price: Call Us |
| 6 |
17490512 |
Screw Thdrol 5/16-18 x 3/4 Price: Call Us |
| 8 |
141003 |
Rod Shift Fender STLT Price: Call Us |
| 9 |
145028 |
Clutch Elecric Price: Call Us |
| 10 |
76020416 |
Pin Cotter 1/8 x 1 CAD Price: Call Us |
| 13 |
74550412 |
Bolt 1/4-28 Unf Gr. 8 w/Patch Price: Call Us |
| 15 |
74490544 |
Bolt Hex 5/16-18 Unc Flghd Price: Call Us |
| 16 |
73800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P Price: Call Us |
| 18 |
74780616 |
Bolt Fin Hex 3/8-16 Unc x 1 Gr.5 Price: Call Us |
| 19 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 Unc Price: Call Us |
| 20 |
150280 |
Bolt, Hex 7/16-20 x 4-1/4 Ga. 5 Price: Call Us |
| 21 |
121274X |
Knob, Duckhead 1/2-13 Unc Blk Price: Call Us |
| 22 |
130804 |
Rod, Brake Price: Call Us |
| 23 |
154978 |
Bracket Asm Mtg CL Price: Call Us |
| 24 |
73350600 |
Nut Hex Jam 3/8-16 UNC Price: Call Us |
| 25 |
106888X |
Spring, Brake Rod Price: Call Us |
| 26 |
19131316 |
Washer Price: Call Us |
| 27 |
76020412 |
Pin Cotter 1/8 x 3/4 CAD. Price: Call Us |
| 28 |
145204 |
Rod, Parking Brake Price: Call Us |
| 29 |
71673 |
Cap,Parking Brake Price: Call Us |
| 30 |
130807 |
Bracket, Transaxle Price: Call Us |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18 Unc x 3/4 Price: Call Us |
| 33 |
72140506 |
Bolt Carriage 5/16-18 UNC x 3/4 Price: Call Us |
| 34 |
155071 |
Shaft, Foot Pedal Price: Call Us |
| 35 |
120183X |
Bearing, Nylon Price: Call Us |
| 36 |
19211616 |
Washer Price: Call Us |
| 37 |
1572H |
Pin, Roll (AYP part number) Price: Call Us |
| 38 |
123674X |
Pulley, Idler, Flat Price: Call Us |
| 39 |
74760644 |
Bolt Price: Call Us |
| 40 |
4470J |
Spacer Split Price: Call Us |
| 41 |
154777 |
Keeper, Belt Idler Price: Call Us |
| 42 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga Price: Call Us |
| 47 |
127783 |
Pulley, Idler, V-Groove Plastic (AYP part number) Price: Call Us |
| 48 |
154604 |
Bellcrank Assembly Price: Call Us |
| 49 |
123205X |
Retainer, Belt Style Spring Price: Call Us |
| 50 |
74760624 |
Bolt (AYP part number) Price: Call Us |
| 51 |
73680600 |
Nut Price: Call Us |
| 52 |
73680500 |
Nut Crown Lock 5/16-18 Price: Call Us |
| 53 |
105710X |
Link, Clutch Price: Call Us |
| 55 |
105709X |
Spring, Return, Clutch Price: Call Us |
| 56 |
74760620 |
Bolt, Fin Hex 3/8-16 UNC x 1 1/4 Price: Call Us |
| 57 |
156971 |
V-Belt, Ground Drive Price: Call Us |
| 59 |
532169691 |
KEEPER, BELT CENTER This part replaces 532140312. Price: $14.99 |
| 61 |
17490612 |
Screw Thdrol. 3/8-16 x 3/4 Ty. TT Price: Call Us |
| 62 |
8883R |
Cover, Pedal Price: Call Us |
| 63 |
145868 |
Pulley Clutch Electric EVX Price: Call Us |
| 65 |
10040700 |
Washer Lock Hvy HLCL Spr 7/16 Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Price: Call Us |
| 69 |
142432 |
Screw Hex Wsh Hi-Lo 1/4-1/2 unc Price: Call Us |
| 74 |
156972 |
Spacer, Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 76 |
12000001 |
E-Ring Price: Call Us |
| 77 |
123583X |
Key, Square Price: Call Us |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga Price: Call Us |
| 81 |
158461 |
Shaft Asm. Cross Price: Call Us |
| 82 |
123782X |
Spring Torsion T/A Price: Call Us |
| 83 |
19171216 |
Washer 17/32 x 3/4 x 16 Ga. Price: Call Us |
| 84 |
158286 |
Rod, Tie PVST 18" Price: Call Us |
| 86 |
71208 |
Bushing Rod Strig. 629/632 ID Price: Call Us |
| 87 |
19212016 |
Washer 21/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 88 |
12000008 |
Ring Klip #5304-62 Price: Call Us |
| 89 |
151147 |
Console, Hydro Shift STLT Price: Call Us |
| 95 |
156970 |
Rod Asm. Bypass Hydro Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Zinc/Cad Price: Call Us |
| 100 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga. Price: Call Us |
| 113 |
127285X |
Strap Torque Lh Price: Call Us |
| 114 |
19111214 |
Washer 11/32 x 3/4 x 14 Ga. Price: Call Us |
| 118 |
154774 |
Spacer Bellcrank Price: Call Us |
| 121 |
154419 |
Nyliner Clutching STL Price: Call Us |
| 122 |
156963 |
Plate Bypass PVST Price: Call Us |
| 123 |
19091016 |
Washer 9/32 x 5/8 x 16 Ga. Price: Call Us |
| 124 |
156967 |
Spring Return PVST Price: Call Us |
| 125 |
74780516 |
Bolt Fin Hex 5/16-18 Unc x 1.00 Price: Call Us |
