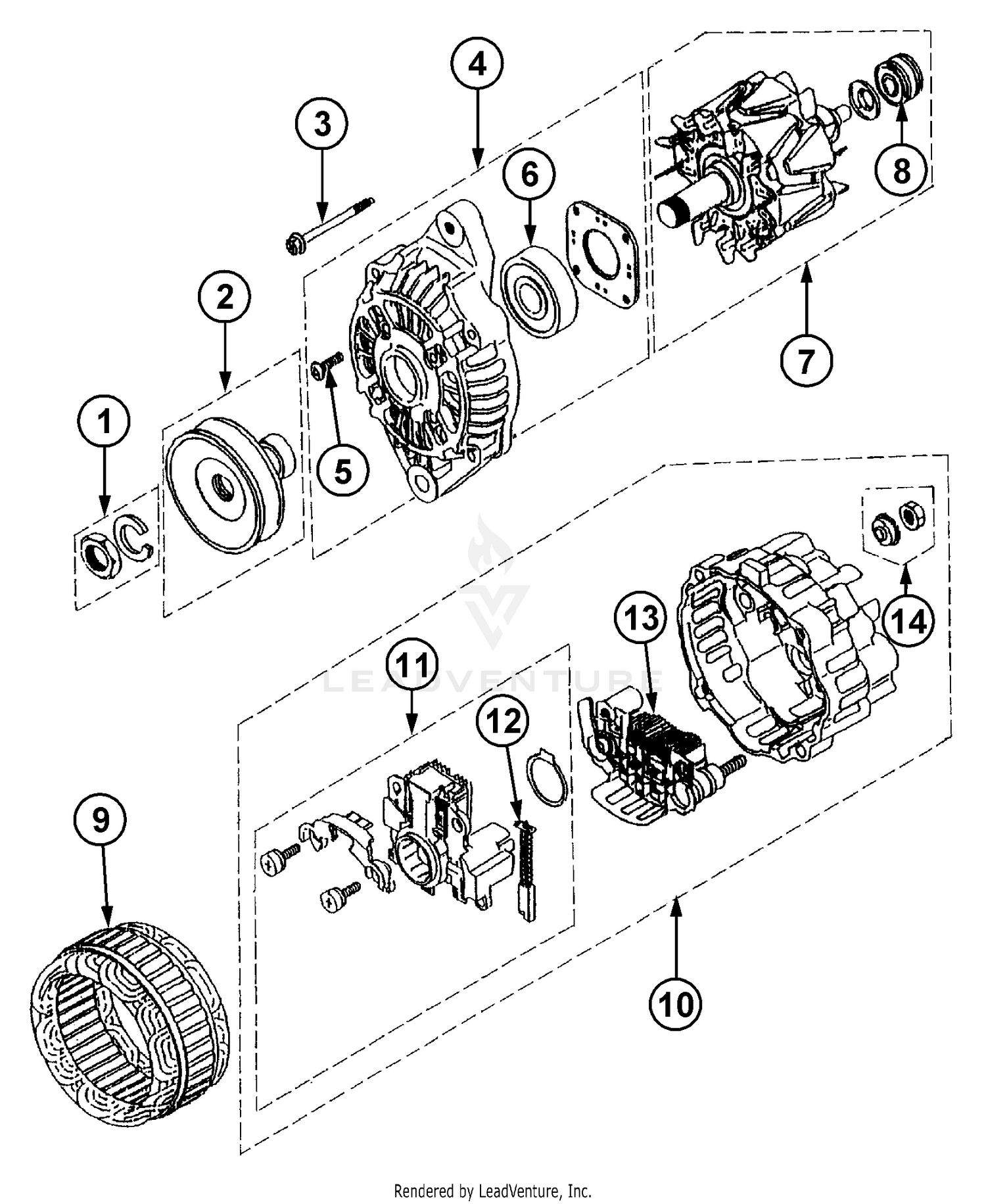

| Ref | Part Number | Description |
|---|
| 1 |
MA-A981X-20771 |
Nut Set Price: Call Us |
| 2 |
MA-A628T-62170 |
Pulley Assy Price: Call Us |
| 3 |
MA-A414X19271 |
BOLT SET-ALTERNATO Not Available Price: |
| 4 |
MA-A640T52770 |
HOUSING AS Not Available Price: |
| 5 |
MA-A414X21271 |
SCREW-SET Not Available Price: |
| 6 |
MA-S930P18870 |
BEARING, FRONT Not Available Price: |
| 7 |
MA-A880T65470 |
ROTOR ASSEMBLY-ALTERNAT Not Available Price: |
| 8 |
MA-S930P63670 |
BEARING-REAR ALTER Not Available Price: |
| 9 |
MA-A383T46370 |
ALTERNATOR STATOR Not Available Price: |
| 10 |
MA-A642X25570 |
HOUSING ASSEMBLY-REAR Not Available Price: |
| 11 |
MA-A866X28472 |
REGULATOR ASSEMBLY-ALT Not Available Price: |
| 12 |
MA-A647X50170 |
BRUSH ASSEMBLY-ALTERNAT Not Available Price: |
| 13 |
MA-A860T-40670 |
Rectifier Assy Price: Call Us |
| 503200216 |
503200216 |
SCREW Price: $3.99 |
| 503219008 |
503205508 |
SCREW This part replaces 503219008. Price: $2.99 |
| 503765201 |
536600501 |
MUFFLER ASSEMBLY 70CC This part replaces 503765201. Price: $99.99 |
| 503765301 |
536599001 |
MUFFLER ASY 70CC This part replaces 503765301. Price: $99.99 |
| 503765302 |
503765302 |
Muffler Price: $57.58 |
| 503765402 |
536600501 |
MUFFLER ASSEMBLY 70CC This part replaces 503765402. Price: $99.99 |
| 503766401 |
536601201 |
SPARK ARRESTER 70CC This part replaces 503766401. Price: $8.99 |
| 503766501 |
579025901 |
SUPPORT This part replaces 503766501. Price: $9.99 |
| 725537055 |
725537055 |
SCREW MC6S 6X20 Price: $4.99 |
