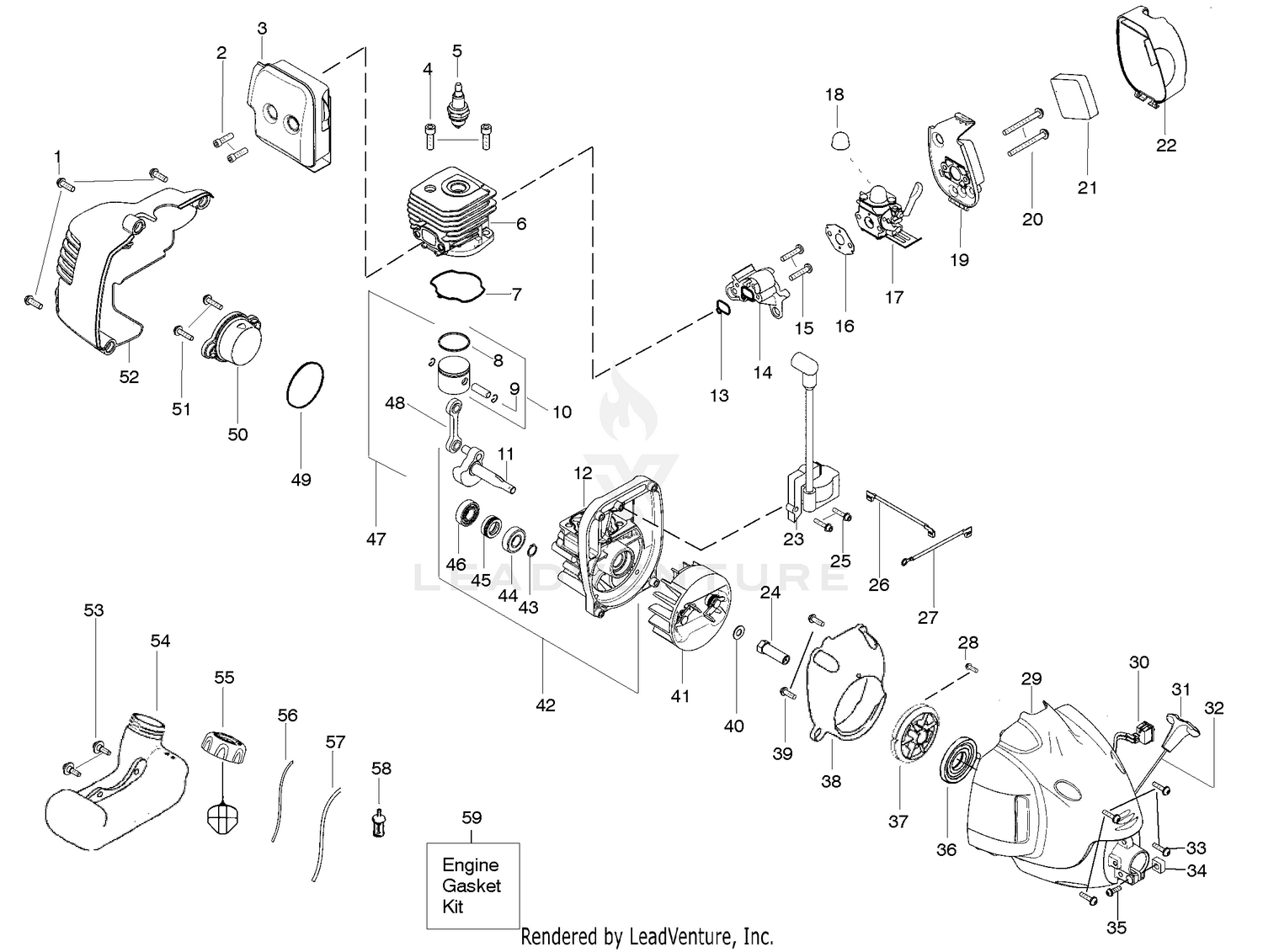

| Ref | Part Number | Description |
|---|
| 1 |
1975718 |
S.R.E. Frame (Incl. Ref. #9-14) Price: Call Us |
| 1 |
530015880 |
Screw Price: $1.99 |
| 2 |
1876163 |
Rotor Assembly Price: Call Us |
| 2 |
530058982 |
Bolt-Muffler Price: $1.99 |
| 3 |
1894594 |
Stator Assembly Price: Call Us |
| 4 |
1976808 |
Frame D.E. Price: Call Us |
| 4 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 5 |
1116392 |
Regulator Price: Call Us |
| 5 |
952030249 |
Spark Plug (RCJ 6Y) Price: $3.99 |
| 6 |
1971528 |
Diode Price: Call Us |
| 6 |
530012541 |
Cylinder Price: $11.99 |
| 7 |
1891055 |
Rectifier Bridge Price: Call Us |
| 7 |
530071750 |
Seal-Cylinder (kit) Price: $8.99 |
| 8 |
1894559 |
Brush Holder Brush Assy. Price: Call Us |
| 8 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 9 |
1974862 |
Roller Bearing S.R.E. Price: Call Us |
| 9 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 10 |
1974861 |
Ball Bearing D.E. Price: Call Us |
| 11 |
1971411 |
Capacitor Price: Call Us |
| 11 |
530012555 |
Assy-Crankshaft Price: $17.99 |
| 12 |
1869573 |
Bracket Price: Call Us |
| 13 |
1894568 |
Terminal-Relay Price: Call Us |
| 13 |
530071750 |
Seal-Cyl/Carb.(kit) Price: $8.99 |
| 14 |
1975471 |
Terminal Package Price: Call Us |
| 14 |
530057547 |
Adapter-Carb. Price: $7.99 |
| 15 |
530016441 |
Screw Price: $1.99 |
| 16 |
1971993 |
Bearing Retainer Price: Call Us |
| 16 |
530071750 |
Gasket-Carb. (kit) Price: $8.99 |
| 17 |
530071811 |
Kit-Carb. Zama (C1U-W18) Price: $32.99 |
| 18 |
1976138 |
Collar Shaft-Outside Price: Call Us |
| 18 |
530058709 |
Bulb - Purge Price: $4.99 |
| 19 |
574614701 |
BASE This part replaces 530059246. Price: $2.99 |
| 20 |
1956975 |
Bolt Price: Call Us |
| 20 |
530016429 |
Screw Price: $1.99 |
| 21 |
530036575 |
Foam-Air Filter Price: $1.99 |
| 22 |
530057545 |
Cover-Air Box This part replaces 530058912. Price: $3.99 |
| 23 |
545081826 |
Kit - Ignition Module This part replaces 530039234. Price: $32.99 |
| 24 |
530027953 |
Coupling-Drive Price: $1.99 |
| 25 |
530016357 |
Screw Price: $1.99 |
| 26 |
530014663 |
Assy-Leadwire Price: $5.99 |
| 27 |
1941978 |
Lockwasher Price: Call Us |
| 27 |
581425901 |
SWITCH, GROUND WIRE This part replaces 530014662. Price: $1.99 |
| 28 |
120622 |
Nut-Rectifier Bridge Price: Call Us |
| 28 |
530016391 |
Screw Price: $1.99 |
| 29 |
1915172 |
Nut Price: Call Us |
| 29 |
545008209 |
Assy.-Fan Hsg Price: $14.99 |
| 30 |
545081869 |
Kit-Switch Price: $1.99 |
| 31 |
1965104 |
Screw Price: Call Us |
| 31 |
530058742 |
Handle-Starter Price: $2.99 |
| 32 |
1894586 |
Screw Washer-Brush Holder Attaching (Ground) Price: Call Us |
| 32 |
530071798 |
Kit - Rope Price: $3.99 |
| 33 |
1876681 |
Screw Assy.-Brush Holder Attaching (Insulated) Price: Call Us |
| 33 |
530016386 |
Screw Price: $5.99 |
| 34 |
1974020 |
Screw-Brush Holder Attaching Pivot Price: Call Us |
| 34 |
530016382 |
Nut 12-24 Price: $2.99 |
| 35 |
1851612 |
Screw and Lockwasher Price: Call Us |
| 35 |
530016381 |
Screw 12-24 Price: $2.99 |
| 36 |
1851612 |
Screw and Lockwasher Price: Call Us |
| 36 |
545008011 |
KIT STARTER SPRING This part replaces 545213601. Price: $5.99 |
| 37 |
1876668 |
Screw Washer-Rectifier Bridge Attaching Price: Call Us |
| 37 |
545081852 |
Kit - Starter Pulley This part replaces 530071797. Price: $9.99 |
| 38 |
545080601 |
Baffle Price: $6.99 |
| 39 |
530015880 |
Screw Price: $1.99 |
| 40 |
530015828 |
Washer-Flat Price: $1.99 |
| 41 |
545221701 |
FLYWHEEL ASSY This part replaces 530054115. Price: $8.99 |
| 43 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 44 |
530055728 |
Outer Bearing Price: $6.99 |
| 45 |
530019264 |
Seal-C'case Price: $2.99 |
| 46 |
530032125 |
Inner Bearing Price: $11.99 |
| 48 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 49 |
530071750 |
O-Ring-C'case (kit) Price: $8.99 |
| 51 |
530016386 |
Screw Price: $5.99 |
| 52 |
530058737 |
Shroud-Rear Price: $7.99 |
| 53 |
530016445 |
Retainer-Tank Price: $1.99 |
| 55 |
530058743 |
Assy-Fuel Cap Price: $7.99 |
| 56 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 57 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
| 58 |
530095646 |
Assy-Fuel Pickup Price: $2.99 |
