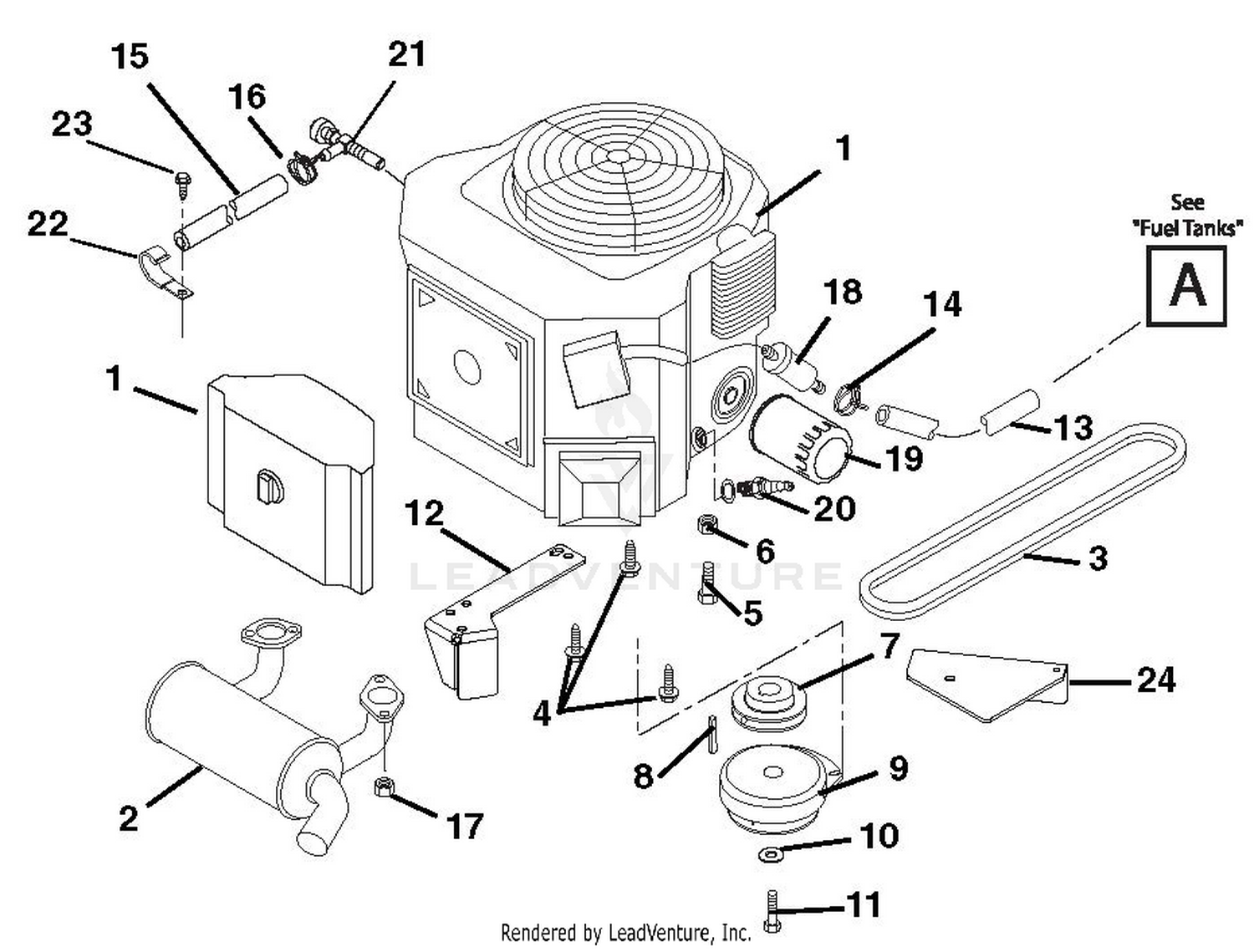

| Ref | Part Number | Description |
|---|
| 2 |
09298000 |
MUFFLER, KAW. (COMPACT-Z) Price: $201.45 |
| 3 |
07200010 |
V-BELT, HA-RAW EDGE Price: $32.95 |
| 4 |
07000104 |
BLT, TAP .38-16X1.5 PH TRX YZ Price: $3.45 |
| 5 |
05901804 |
BLT, HEX .31-18X1.75 G5 ZCC This part replaces 05957400. Price: $2.95 |
| 6 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 7 |
07327700 |
PLY-V 4.00 X 1.12 KEYWAY 1.54 Price: $67.45 |
| 8 |
06602700 |
KEY-SQ .25X.625X.25 SAE 8630 Price: $3.45 |
| 9 |
00867200 |
CLUTCH, ELECTRIC Price: $336.95 |
| 10 |
06443500 |
WSHR-FL-STL.463X1.375X.25 YWZC Price: $6.45 |
| 11 |
05902004 |
BLT- HEX .44-20X1.50 G5ZCCEP80 This part replaces 05900039. Price: $5.45 |
| 12 |
00395651 |
WMT, CLUTCH STOP Price: $76.45 |
| 13 |
00365900 |
HOSE, 5.75"-1/4" ID GAS LINE Price: $5.45 |
| 14 |
06939100 |
CLAMP-HOSE WIRE .490/.510X.116 Price: $3.45 |
| 15 |
00172900 |
HOSE, 1/2 X 6.00 Price: $8.45 |
| 16 |
06923500 |
CLAMP,.88 DIA. HOSE Price: $1.95 |
| 17 |
06500919 |
NUT-LK-TOP-FLG M8 ZCC This part replaces 06500018. Price: $1.95 |
| 18 |
21541500 |
FILTER, FUEL This part replaces 21410800. Price: $11.95 |
| 19 |
21535800 |
FILTER,OIL - KAW Price: $27.45 |
| 20 |
21536100 |
PLUG, SPARK Price: $8.95 |
| 21 |
00429000 |
DRAIN, 1/2" OIL Price: $35.95 |
| 22 |
06916000 |
J-CLAMP Price: $2.45 |
| 23 |
07400124 |
SCR,TAP .312-18X.50 HWH TR ZCC This part replaces 07415900. Price: $1.45 |
