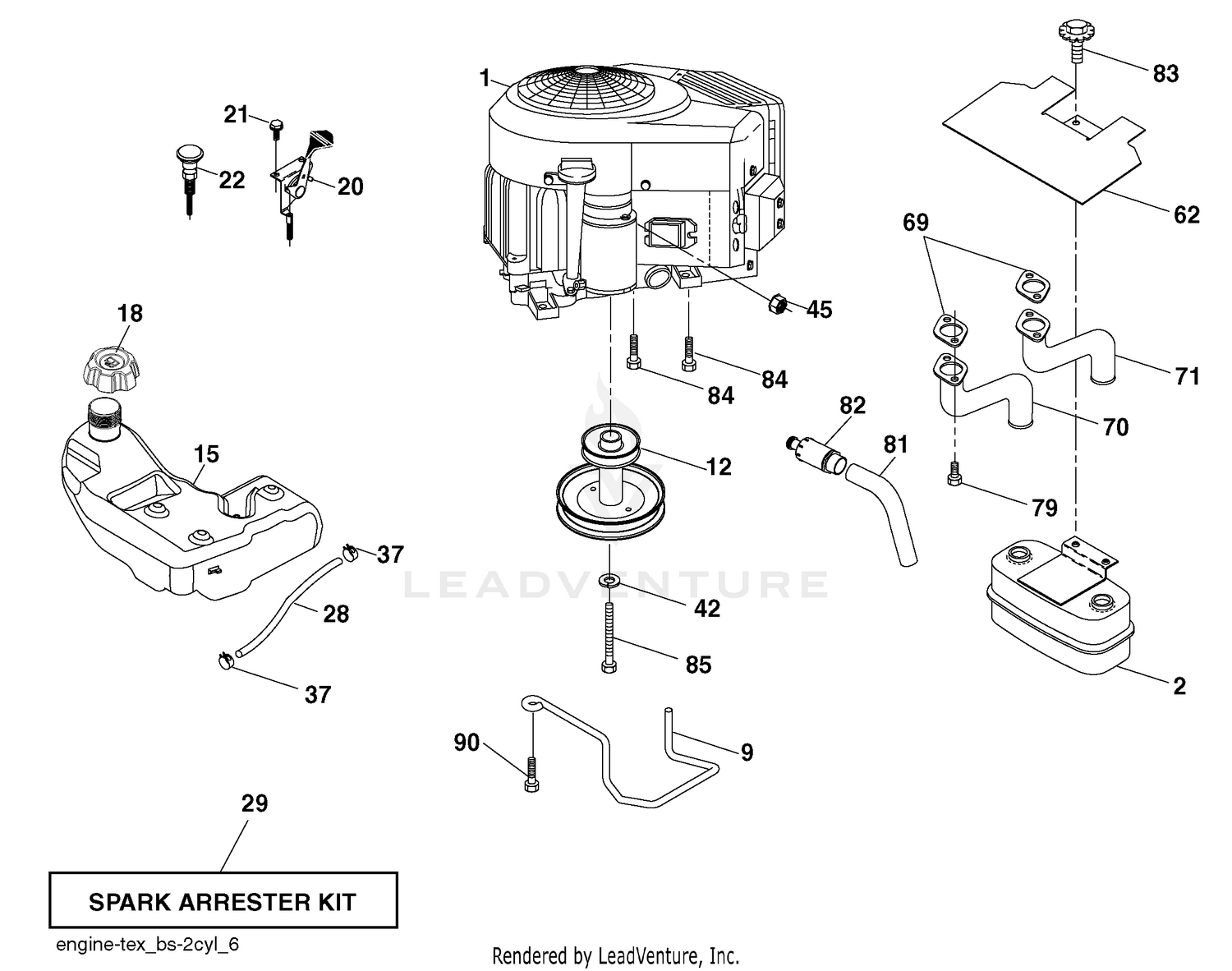

| Ref | Part Number | Description |
|---|
| 2 |
149723 |
Muffler Price: Call Us |
| 5 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 6 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 7 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 8 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 9 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 9 |
194319 |
Keeper Belt Engine Price: Call Us |
| 10 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 11 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 12 |
405140 |
Pulley Engine Price: Call Us |
| 13 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 14 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 15 |
12-5450 |
SCREW Price: $7.99 |
| 15 |
400021 |
Tank Fuel 3.0 Price: Call Us |
| 16 |
21-7830 |
COVER-GEAR Price: $26.87 |
| 17 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 18 |
195951 |
Cap Asm. Price: Call Us |
| 18 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 19 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 20 |
175437X428 |
Control Throttle Price: Call Us |
| 20 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 21 |
416358 |
Screw #10 x 0.750 BOS Thread Price: Call Us |
| 21 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 22 |
187767X428 |
Control Choke Price: Call Us |
| 22 |
86-7190 |
UPPER HOUSING ASM Price: $889.26 |
| 24 |
254-90 |
BEARING-CUP Price: $11.29 |
| 25 |
254-91 |
CONE-BEARING Price: $18.65 |
| 26 |
68-7010 |
FLANGE Price: $306.32 |
| 27 |
71-4340 |
WASHER Price: $15.47 |
| 28 |
401135 |
Fuel Line Price: Call Us |
| 28 |
72-3572 |
SHIM-BEARING, FRONT (.098) This part replaces 72-3570. Price: $23.68 |
| 28 |
72-3590 |
SHIM-BEARING, FRONT (.133) Price: $22.53 |
| 29 |
137180 |
Spark Arrester Kit Price: Call Us |
| 29 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 31 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 32 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 33 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 34 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 35 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 36 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 37 |
123487X |
Clamp Hose Price: Call Us |
| 37 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 38 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 42 |
10040700 |
Washer Lock 7/16 Price: Call Us |
| 45 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 47 |
71-4350 |
NUT Price: $3.46 |
| 48 |
71-4330 |
SEAL Price: $36.26 |
| 62 |
146629 |
Shield Heat Muffler Price: Call Us |
| 69 |
165391 |
Gasket Price: Call Us |
| 70 |
159955 |
Exhaust Tube RH Price: Call Us |
| 71 |
160589 |
Exhaust Tube LH Price: Call Us |
| 79 |
183906 |
Screw Socket Head 5/16-18 x 1 Price: Call Us |
| 81 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 82 |
181654 |
Plug Drain Oil Price: Call Us |
| 83 |
171877 |
Bolt 5/16-18 x 3/4 Price: Call Us |
| 84 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 85 |
173937 |
Bolt Hex 7/16-20 x 4 x 5 Ga.-1.5 Price: Call Us |
