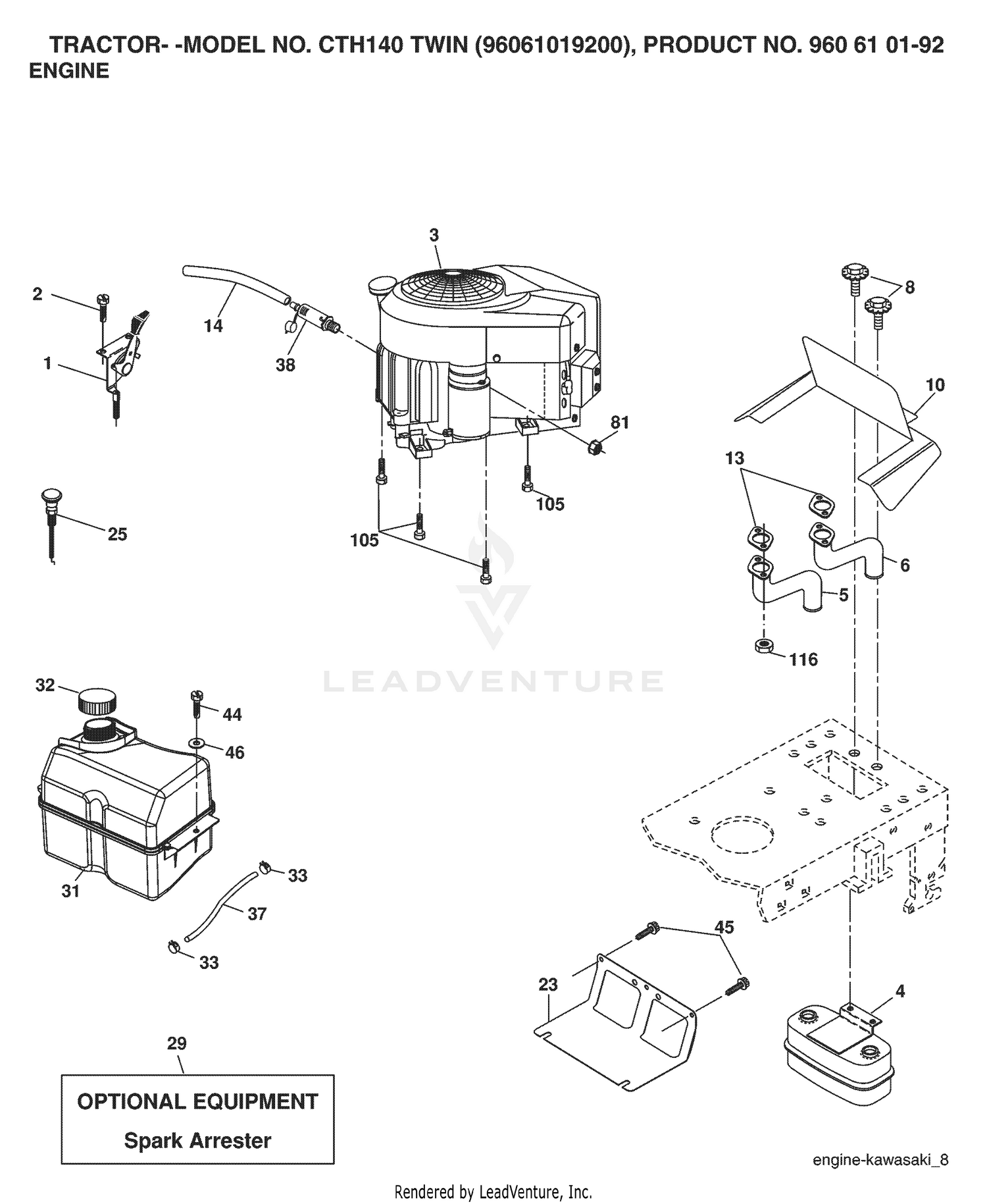

| Ref | Part Number | Description |
|---|
| 1 |
532412165 |
CONTROL.THROTTLE.COBRA.BLACK Price: $27.99 |
| 2 |
138-1204 |
SEAL-BOOT Price: $28.62 |
| 4 |
138-1205 |
BEARING-CUP Price: $22.22 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
138-1206 |
BEARING-CONE Price: $22.22 |
| 5 |
532181444 |
EXHAUST TUBE LH KAWI Price: $54.99 |
| 6 |
105-8124 |
STUD-WHEEL Price: $7.84 |
| 6 |
532181442 |
EXHAUST TUBE RH KAWI Price: $59.99 |
| 7 |
138-1207 |
SCREW-SOCKET HEAD Price: $2.58 |
| 8 |
138-1208 |
WASHER-LOCK Price: $2.71 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 10 |
105-8121 |
PIN-DOWEL Price: $0.41 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 12 |
138-6928 |
SPACER Price: $22.26 |
| 13 |
138-6929 |
WASHER Price: $5.09 |
| 14 |
138-6930 |
NUT-LOCK Price: $40.36 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
138-1209 |
GEAR-RING Price: $837.28 |
| 16 |
138-1210 |
RING-SNAP Price: $25.99 |
| 17 |
353-990 |
PLUG ASM Price: $10.01 |
| 18 |
237-78 |
O-RING Price: $3.85 |
| 19 |
138-1211 |
PLUG-FLANGE, MAGNETIC Price: $7.25 |
| 20 |
138-1212 |
O-RING Price: $1.73 |
| 21 |
138-1213 |
CAP-END Price: $89.39 |
| 22 |
138-1214 |
WASHER-THRUST, SUN Price: $9.02 |
| 23 |
105-8131 |
RING-RETAINING Price: $3.05 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 25 |
138-1215 |
GEAR-PRIMARY, SUN Price: $97.58 |
| 25 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 26 |
138-1216 |
SHAFT-DRIVE Price: $300.56 |
| 27 |
138-1217 |
PRIMARY CARRIER ASM Price: $917.18 |
| 28 |
138-1218 |
SECONDARY CARRIER ASM Price: $802.56 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532407545. Price: $44.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532197725. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 116 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
