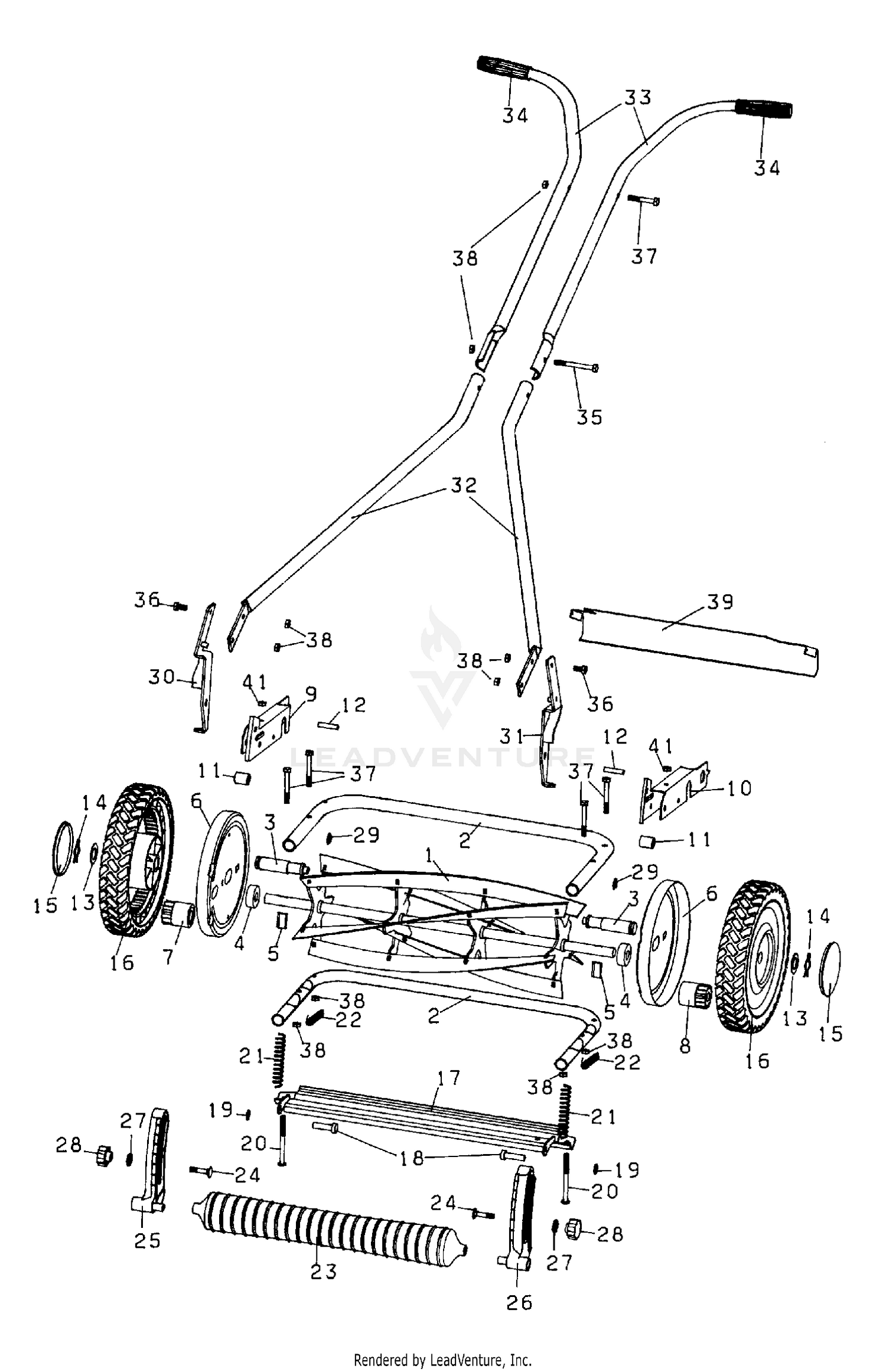

64 Novocut Reel Mower (1999-01)
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 371397522 | CUTTING REEL Price: $94.42 |
| 2 | 371396303 | FRAME Price: $18.62 |
| 3 | 295647301 | SHAFT Price: $7.95 |
| 4 | 295655801 | BEARING This part replaces 371913101. Price: $14.99 |
| 5 | 371379101 | PAWL Price: $3.99 |
| 6 | 371926415 | PROTECTOR Price: $20.77 |
| 7 | 371906101 | GEAR ** Price: $17.99 |
| 8 | 371906201 | GEAR ** Price: $27.99 |
| 9 | 295646701 | BRACKET Price: $29.32 |
| 10 | 295646702 | BRACKET Price: $29.76 |
| 11 | 295647601 | SPACER Price: $2.49 |
| 12 | 371900101 | P/N NOT AVAILABLE Price: $4.00 |
| 13 | 371914401 | WASHER Price: $2.99 |
| 14 | 371914201 | SPRING Price: $3.99 |
| 15 | 295613305 | HUBCAP This part replaces 295613301. Price: $7.99 |
| 16 | 295696301 | WHEEL This part replaces 295613202. Price: $19.99 |
| 17 | 371913322 | BLADE Price: $54.99 |
| 18 | 371900701 | BOLT Price: $2.81 |
| 19 | 371902101 | LOCKING WASHER Price: $5.99 |
| 20 | 295647201 | BOLT Price: $5.26 |
| 21 | 295647101 | SPRING Price: $3.99 |
| 22 | 295646801 | SPRING Price: $14.99 |
| 23 | 295656901 | ROLLER This part replaces 371392603. Price: $27.99 |
| 24 | 727737401 | SCREW Price: $6.99 |
| 25 | 295646601 | HEIGHT GAUGE Price: $27.99 |
| 26 | 295646602 | HEIGHT GAUGE Price: $49.99 |
| 27 | 531007890 | FLANGE/BOSS This part replaces 295648101. Price: $19.99 |
| 28 | 295647401 | KNOB Price: $7.99 |
| 29 | 735311321 | P/N NOT AVAILABLE Price: $3.94 |
| 30 | 295646901 | BRACKET Price: $18.38 |
| 31 | 295646902 | BRACKET Price: $18.38 |
| 32 | 295647701 | LOWER HANDLE Price: $24.99 |
| 33 | 371379603 | HANDLE Price: $22.99 |
| 34 | 295700001 | HANDLE This part replaces 371902001. Price: $9.99 |
| 35 | 725238051 | SCREW M6X50 Price: $2.99 |
| 36 | 725236651 | SCREW Price: $2.99 |
| 37 | 725237951 | SCREW Price: $4.99 |
| 38 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 39 | 295651501 | P/N NOT AVAILABLE Price: $64.62 |
