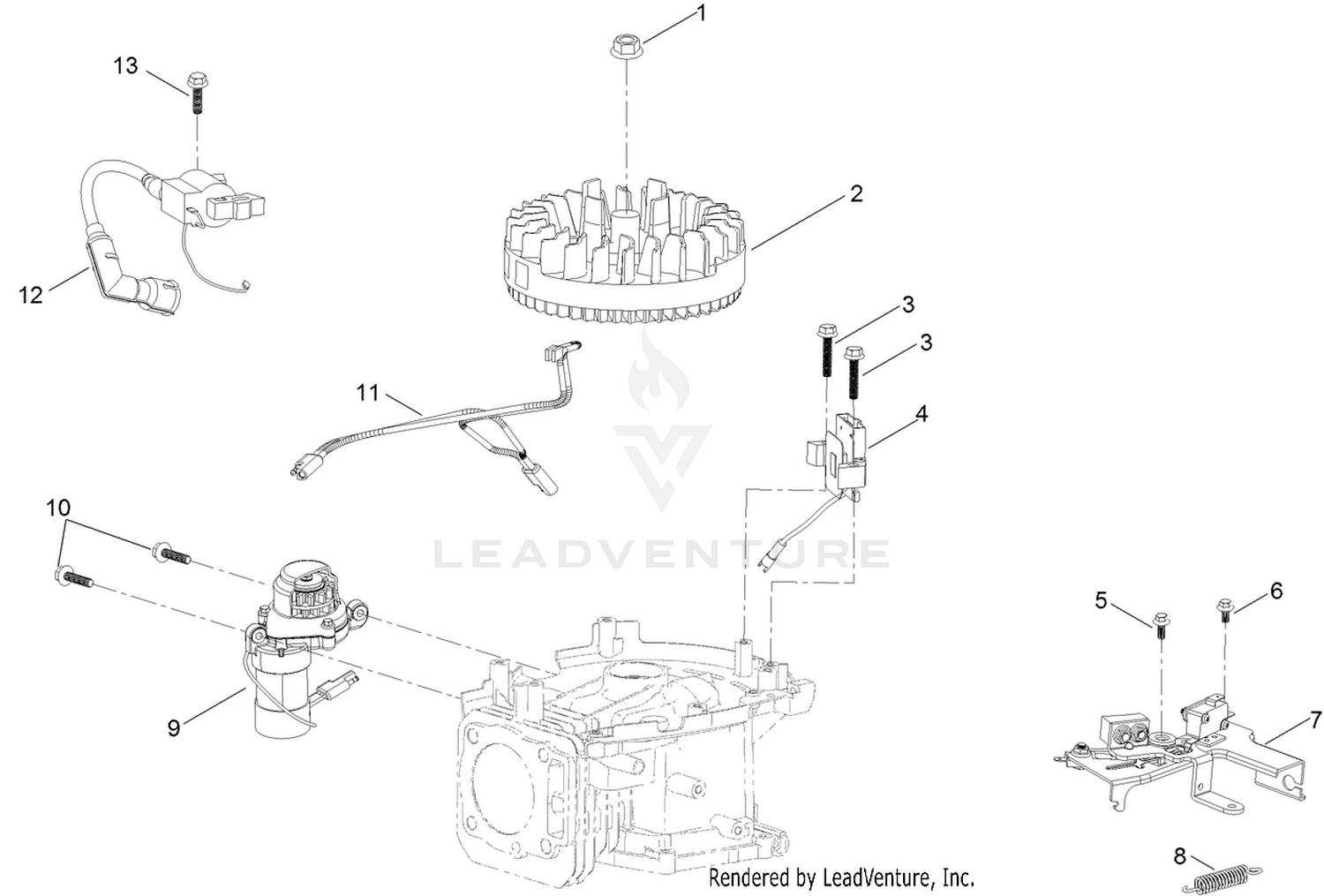

Ignition and Electrical Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-0047 | NUT-FLANGE Price: $3.69 |
| 2 | 139-0619 | FLYWHEEL Price: $94.99 |
| 3 | 120-4223 | SCREW-HHF Price: $2.69 |
| 4 | 136-7861 | ALTERNATOR Price: $41.99 |
| 5 | 121-0007 | BOLT-FLANGE Price: $1.19 |
| 6 | 120-4232 | SCREW-HHF Price: $1.29 |
| 7 | 136-7873 | BRAKE ASM Price: $27.99 |
| 8 | 133-9890 | SPRING-BRAKE Price: $0.89 |
| 9 | 139-0617 | MOTOR-STARTER Price: $224.99 |
| 10 | 120-4225 | SCREW-HHF Price: $1.59 |
| 11 | 133-9921 | HARNESS-MOTOR, STARTER Price: $28.99 |
| 12 | 136-7870 | IGNITION COIL ASM Price: $61.99 |
