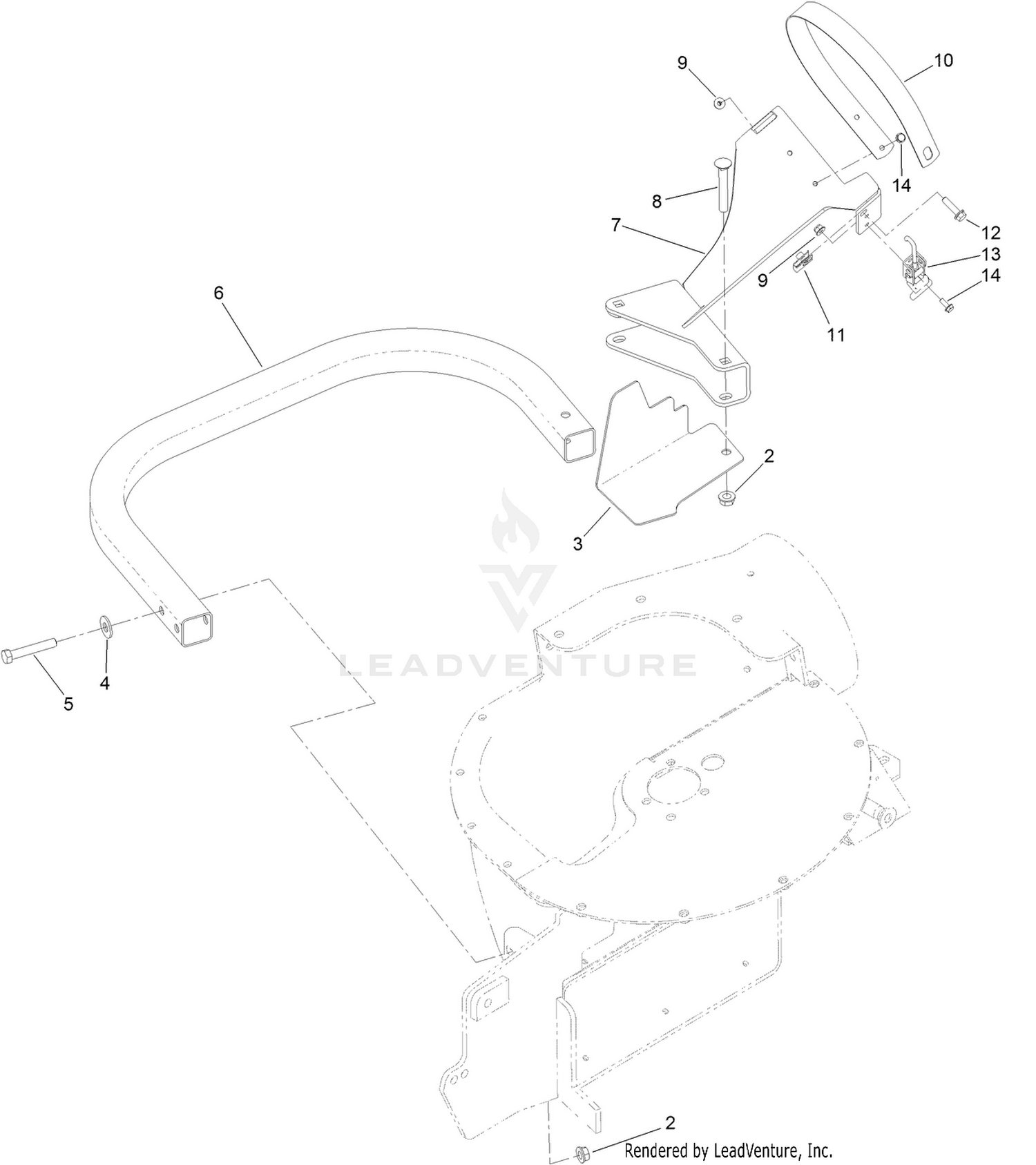

Bumper and Lower Guard Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 3 | 132-7999-03 | GUARD-LOWER Price: $40.86 |
| 4 | 3256-4 | WASHER-FLAT Price: $0.28 |
| 5 | 323-11 | SCREW-HH Price: $1.08 |
| 6 | 103-0458-01 | BUMPER Price: $116.99 |
| 7 | 132-8165-03 | SUPPORT Price: $272.40 |
| 8 | 3231-31 | SCREW-CARR Price: $1.29 |
| 9 | 120-4578 | NUT-HF Price: $0.41 |
| 10 | 132-8168-03 | STRAP Price: $87.46 |
| 11 | 107069 | CLIP Price: $1.79 |
| 12 | 120-4654 | SCREW-HHF Price: $0.34 |
| 13 | 132-8164 | LATCH-DRAW Price: $149.79 |
