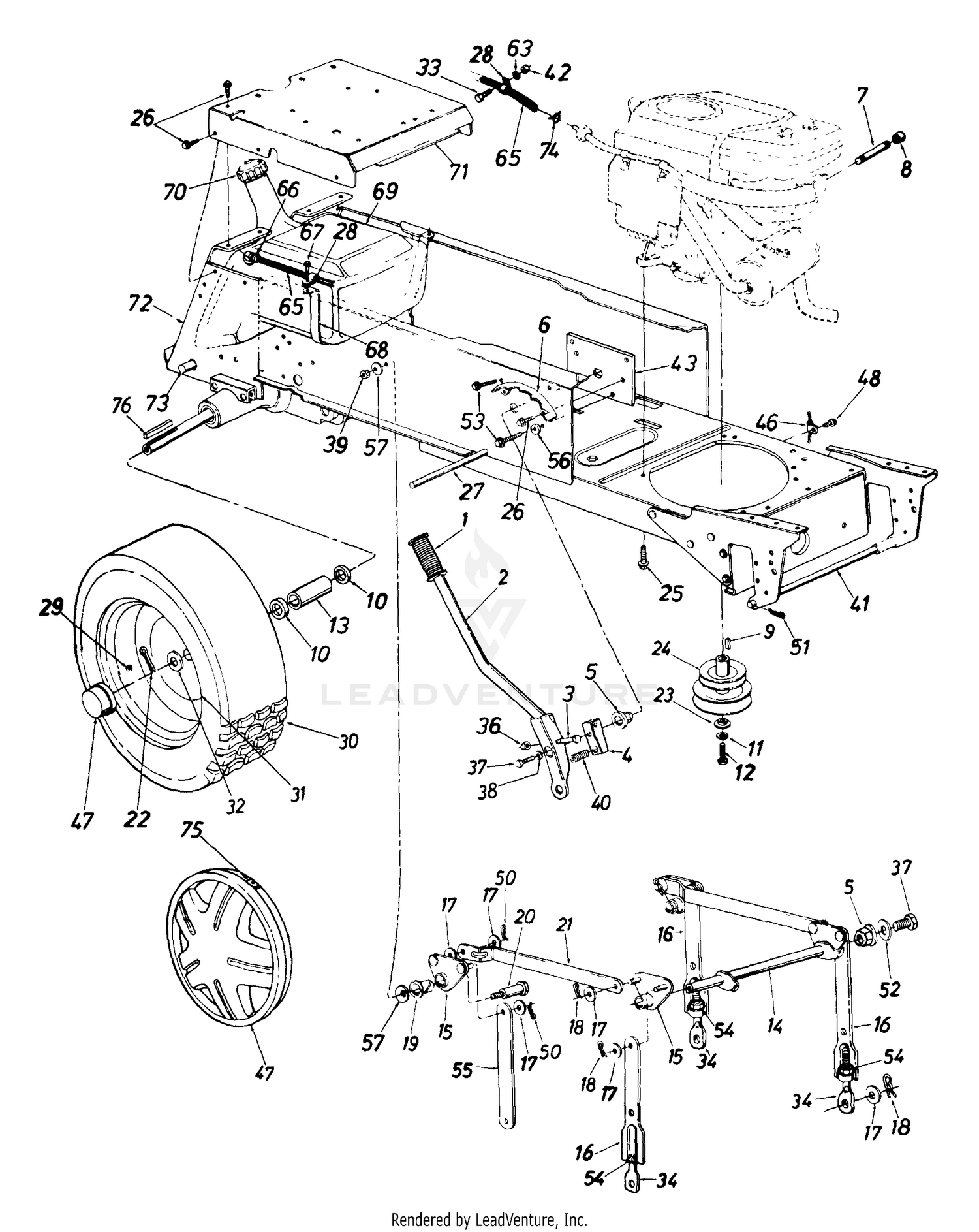

| Ref | Part Number | Description |
|---|
| 1 |
720-0233 |
LIFT HANDLE GRIP Not Available Price: |
| 2 |
17282 |
LIFT HANDLE ASS Y. Not Available Price: |
| 4 |
748-0274A |
LIFT SHAFT Not Available Price: |
| 5 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 6 |
14231-0637 |
BRACKET-INDEX-DECK Not Available This part replaces 14231. Price: |
| 7 |
937-0164 |
PIPE NIPPLE Not Available This part replaces 737-0164. Price: |
| 8 |
737-0143 |
CAP - OIL DRAIN Not Available Price: |
| 9 |
714-0118 |
Sq. Key 1/4" x 1/4" x 1.50" Lg. Price: $6.06 |
| 10 |
736-0163 |
Fl-Wash. 1.03" I.D. x 1.62" O.D. Price: $4.05 |
| 11 |
736-0171 |
L-Wash. 7/16" I.D. Price: $3.86 |
| 12 |
710-0757 |
Hex Scr. 7/16-20 x 1.50" Lg. Price: $8.83 |
| 13 |
750-0762 |
SPACER Not Available Price: |
| 14 |
13889 |
LIFT SHAFT Not Available Price: |
| 15 |
13895 |
LIFT BRACKET PIV0T Not Available Price: |
| 16 |
17303-0637 |
Adj. Deck Lift Link This part replaces 17303. Price: $14.61 |
| 17 |
736-0192 |
Fl-Wash. 1/2" I.D. x 1.00" O.D. x .090" Price: $3.75 |
| 18 |
714-0101 |
Hairpin Cotter Price: $4.13 |
| 19 |
741-0591 |
Flanged Brg. 5/8" I.D. This part replaces 741-0295. Price: $4.02 |
| 20 |
738-0445 |
SHOULDER BOLT Not Available Price: |
| 21 |
13790-0637 |
LINK-CONNECTING Not Available This part replaces 13790. Price: |
| 22 |
714-0142 |
COTTER PIN-3/16 DIA x 1.50 Not Available Price: |
| 23 |
736-0322 |
Flat Wash. .44" I.D. x 1.25" O.D. x .17" Price: $8.42 |
| 24 |
756-0531A |
PULLEY Not Available Price: |
| 25 |
710-0502A |
Hex Wash. Hd. Scr. 3/8-16 x 1.25" Lg. Price: $5.71 |
| 26 |
710-0726 |
Hex Thd. Rolling Scr. 5/16-18 x .75" Lg. Price: $3.82 |
| 27 |
738-0435 |
ROD-RUNNING BOARD Not Available Price: |
| 28 |
726-0272 |
Clamp Price: $6.24 |
| 29 |
934-0255 |
TUBELESS VALVE This part replaces 734-0255. Price: $3.83 |
| 31 |
734-1015 |
WHEEL RIM Not Available Price: |
| 32 |
736-04605 |
Washer, 1.00 x 2.00 x .075 This part replaces 736-0345. Price: $3.74 |
| 33 |
710-0258 |
Hex Bolt 1/4-20 x .62" Lg. Price: $3.63 |
| 34 |
911-0817 |
Eye Bolt Adj. Link 1/2-13 Thd. This part replaces 711-0817. Price: $12.64 |
| 36 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 39 |
712-0181 |
Hex Top L-Nut 3/8-16 Thd. Price: $3.90 |
| 40 |
932-0369 |
SPRING This part replaces 732-0369. Price: $8.84 |
| 41 |
738-0777A |
ROD-DECK CONNECTING Not Available This part replaces 738-0777. Price: |
| 43 |
14170-0637 |
REINFORCEMENT PLATE Not Available This part replaces 14170. Price: |
| 46 |
726-0273 |
Mounting Clamp Price: $6.24 |
| 47 |
731-0556 |
Hub Cap Price: $4.22 |
| 48 |
710-0599 |
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 50 |
714-0111 |
Cotter Pin .09 Dia. x 1.0" Lg. Price: $4.20 |
| 51 |
714-0149B |
Int. Cotter Pin Price: $3.95 |
| 52 |
736-0231 |
Flat Wash. 34" I.D. x 1.12" O.D. x .125" Price: $4.02 |
| 53 |
710-0600 |
SCREW 5/16-24 x .500 Not Available Price: |
| 54 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
| 55 |
14399-0637 |
LINK-DECK Not Available This part replaces 14399. Price: |
| 56 |
736-0264 |
Fl-Wash. .344" I.D. Price: $5.99 |
| 57 |
936-0219 |
Bell-Wash. .400" I.D. x 1.13" O.D. This part replaces 736-0219. Price: $3.86 |
| 65 |
751-10349-54 |
Fuel Line 46" Lg. This part replaces 751-0535-46. Price: $47.01 |
| 66 |
726-0205 |
Hose Clamp Price: $3.71 |
| 67 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776A. Price: $3.86 |
| 68 |
17424 |
STRAP Not Available Price: |
| 69 |
751-0566 |
FUEL TANK Not Available Price: |
| 70 |
751-0531B |
Gas Gauge Price: $73.30 |
| 71 |
983-0108A-0637 |
PIVOT BRACKET ASSEMBLY Not Available This part replaces 16848C. Price: |
| 72 |
17343 |
HITCH PLATE Not Available Price: |
| 73 |
738-0482 |
HITCH ROD Not Available Price: |
| 74 |
726-0272 |
Hose Clamp Price: $6.24 |
