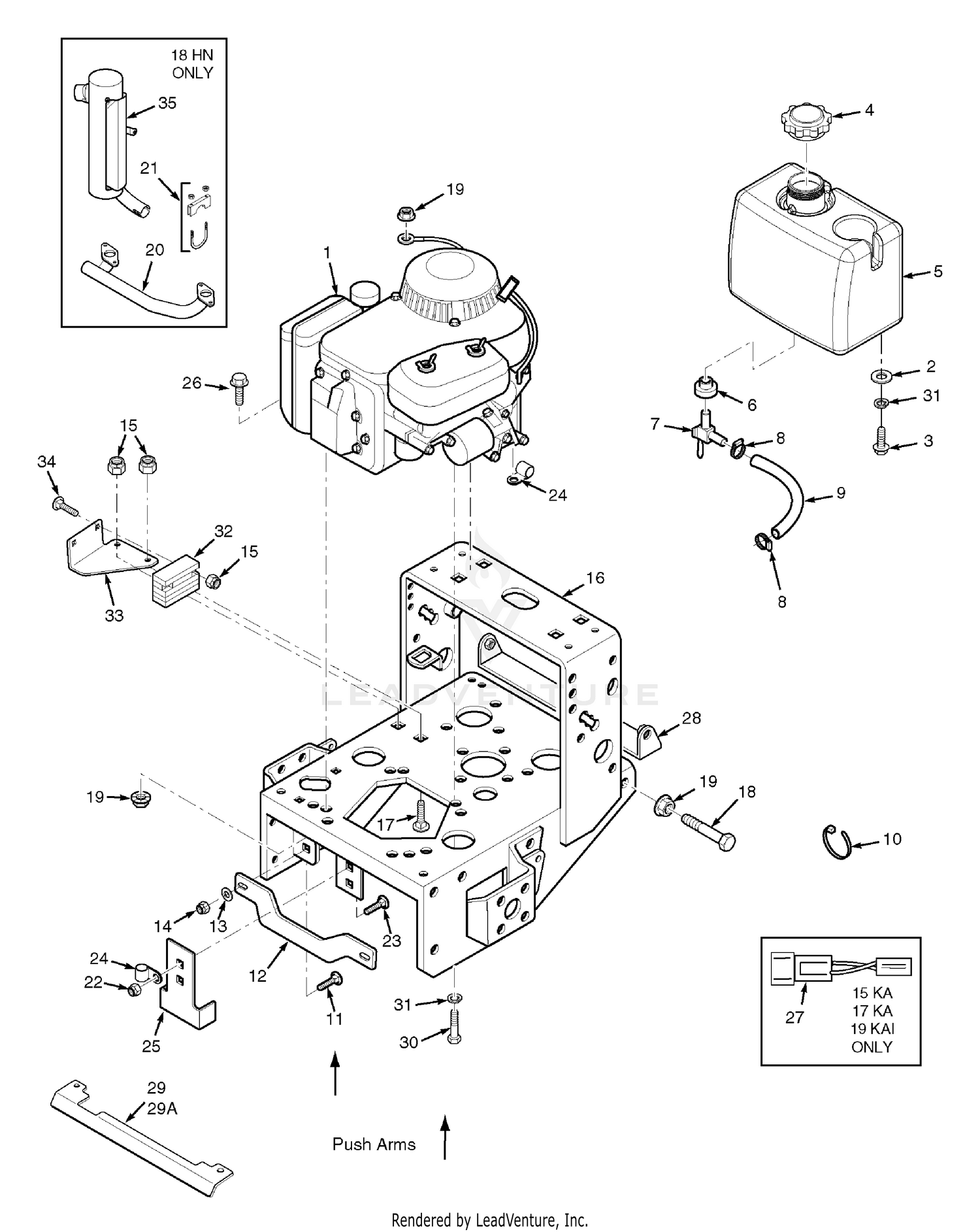

| Ref | Part Number | Description |
|---|
| 2 |
04040-15 |
Flatwasher, 5/16 (.375 x .875 x .083) Price: Call Us |
| 3 |
04001-09 |
Capscrew, 5/16-18 x 1" Hex Head Price: Call Us |
| 4 |
483792 |
Cap, Fuel Tank This part replaces 482547. Price: Call Us |
| 5 |
461729 |
Fuel Tank Assy. (incl. 8, 9) Price: Call Us |
| 6 |
482571 |
Bushing This part replaces 48309. Price: Call Us |
| 7 |
483747 |
Ball Valve w/Screen This part replaces 48308. Price: Call Us |
| 8 |
48059-01 |
Clamp, Fuel Hose Price: Call Us |
| 10 |
48028-05 |
Cable Tie Price: Call Us |
| 11 |
04003-11 |
Carriage Bolt, 3/8-16 X 1-1/4" Price: Call Us |
| 12 |
423748 |
Brace Price: Call Us |
| 13 |
04043-04 |
Flat Washer .391 x .938 x .105 Price: Call Us |
| 14 |
04021-09 |
Nut, 3/8-16 Elastic Stop Price: Call Us |
| 15 |
04021-08 |
Nut, 1/4-20 Elastic Stop Price: Call Us |
| 16 |
461745 |
Engine Deck, 16" Wide, w/decals Price: Call Us |
| 17 |
04003-09 |
Bolt, 1/4-20 x 1-1/4" Carriage Price: Call Us |
| 18 |
04001-17 |
Bolt, 5/16-18 x 2" Hex Head Price: Call Us |
| 19 |
04019-03 |
Nut, 5/16-18 Serr. Flange Price: Call Us |
| 22 |
04021-10 |
Nut, 5/16-18 Elastic Stop Price: Call Us |
| 23 |
04003-04 |
Carriage Bolt, 5/16-18 x 1" Price: Call Us |
| 24 |
48030-09 |
Clamp Price: Call Us |
| 25 |
421370 |
Clutch Bracket Price: Call Us |
| 26 |
04017-19 |
Cap Scrw, 5/16-18 x 1.50" Sr. Flg Price: Call Us |
| 27 |
481717 |
Wire Hrns. Adapter, 15KA, 17KA & 19 KAI Price: Call Us |
| 28 |
45418 |
Pulley Guard, 16" Frame Price: Call Us |
| 29A |
424125 |
Heatshield Price: Call Us |
| 30 |
04017-19 |
Bolt, 5/16-18 x 1" Serrated Flange Hex Head Price: Call Us |
| 31 |
04030-03 |
Lock Washer 5/16" Price: Call Us |
| 483617 |
Fuel |
Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) This part replaces 48058. Price: Call Us 483617 |
