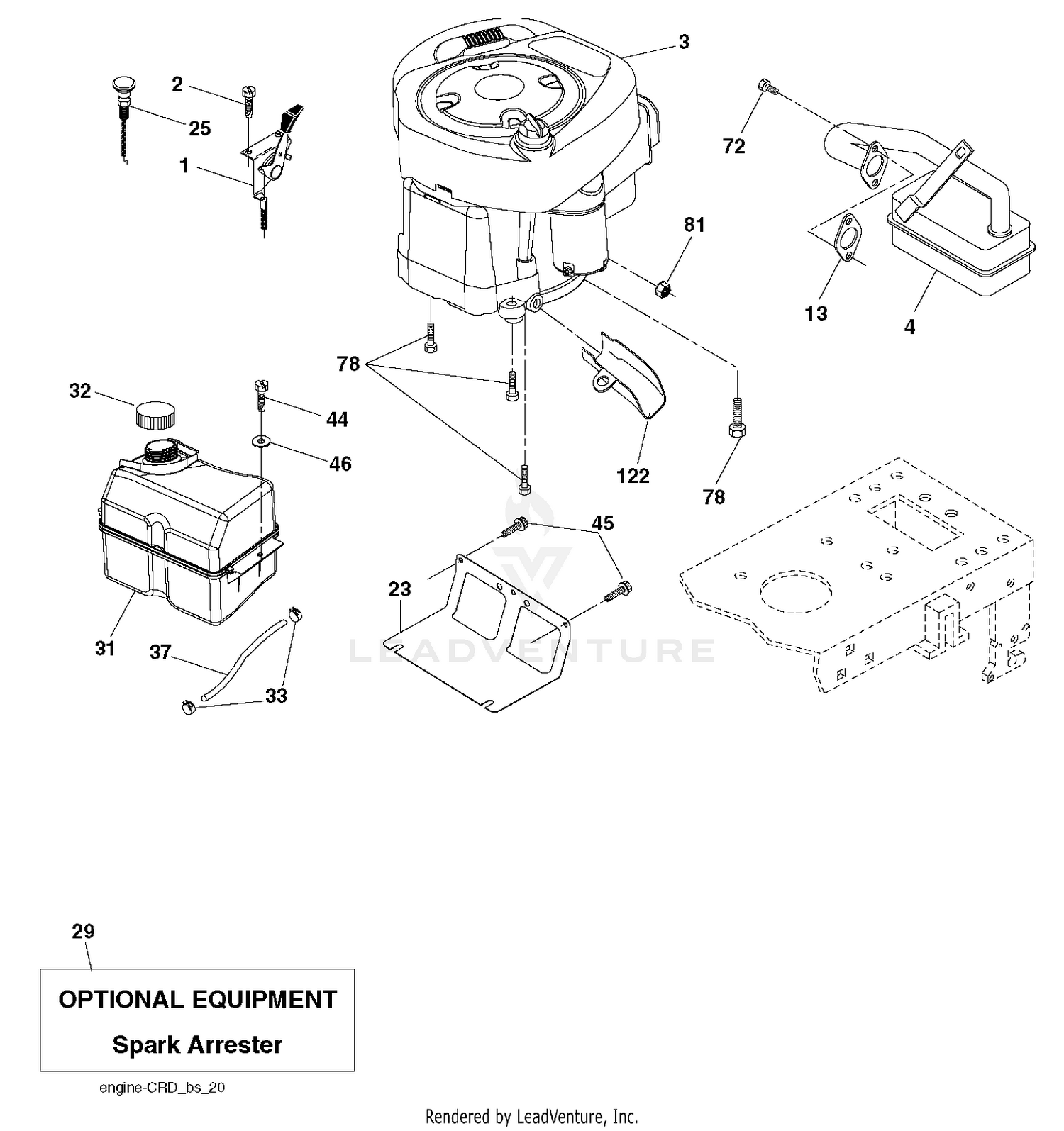

| Ref | Part Number | Description |
|---|
| 1 |
354-54 |
GEAR PLATE Price: $368.62 |
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK Price: $24.99 |
| 2 |
354-56 |
DOWEL PIN Price: $11.71 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
354-64 |
SCREW Price: $31.18 |
| 4 |
354-16 |
WASHER Price: $3.44 |
| 4 |
532137352 |
MUFFLER.LT.BRIGGS.14HP.IC/OHV Price: $39.99 |
| 5 |
354-63 |
COVER ASM Price: $558.65 |
| 6 |
353-922 |
RING-SEAL Price: $12.91 |
| 7 |
354-60 |
SEAL RING Price: $229.15 |
| 8 |
353-886 |
DISCONTINUED Price: Call Us |
| 9 |
354-62 |
DISCONTINUED Price: Call Us |
| 10 |
354-61 |
DISCONTINUED Price: Call Us |
| 11 |
354-59 |
DRIVE SHAFT Price: $459.17 |
| 12 |
354-65 |
DISCONTINUED Price: Call Us |
| 13 |
354-13 |
DOWEL Price: $7.93 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 14 |
354-5 |
ADAPTOR-SPLINED Price: $162.86 |
| 15 |
354-58 |
DISCONTINUED Price: Call Us |
| 16 |
354-69 |
SEAL Price: $23.17 |
| 17 |
354-67 |
SEAL Price: $16.09 |
| 18 |
354-68 |
DISCONTINUED Price: Call Us |
| 19 |
354-66 |
IDLER SHAFT Price: $314.95 |
| 20 |
354-57 |
DRIVE GEAR Price: $478.47 |
| 21 |
354-14 |
PIN-DOWEL Price: $11.78 |
| 22 |
353-931 |
SEAL-OIL This part replaces 354-15. Price: $19.21 |
| 23 |
354-53 |
BODY ASM Price: $407.60 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
354-52 |
DRIVE SHAFT Price: $777.94 |
| 25 |
354-55 |
DISCONTINUED Price: Call Us |
| 25 |
532190695 |
KNOB.ERGO.EXTENDED.RED (1 2) Price: $2.99 |
| 26 |
354-38 |
BALL - VALVE Price: $3.89 |
| 27 |
354-39 |
SPRING - COMPRESSION Price: $43.57 |
| 28 |
354-37 |
ADJUSTER - VALVE Price: $91.27 |
| 29 |
354-35 |
GASKET Price: $7.40 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532407551 |
TANK.FUEL.FRT.N/CAP.2.0GAL.DAP Price: $24.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 72 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 122 |
532421922 |
EXTENSION DRAIN OIL Price: $24.99 |
