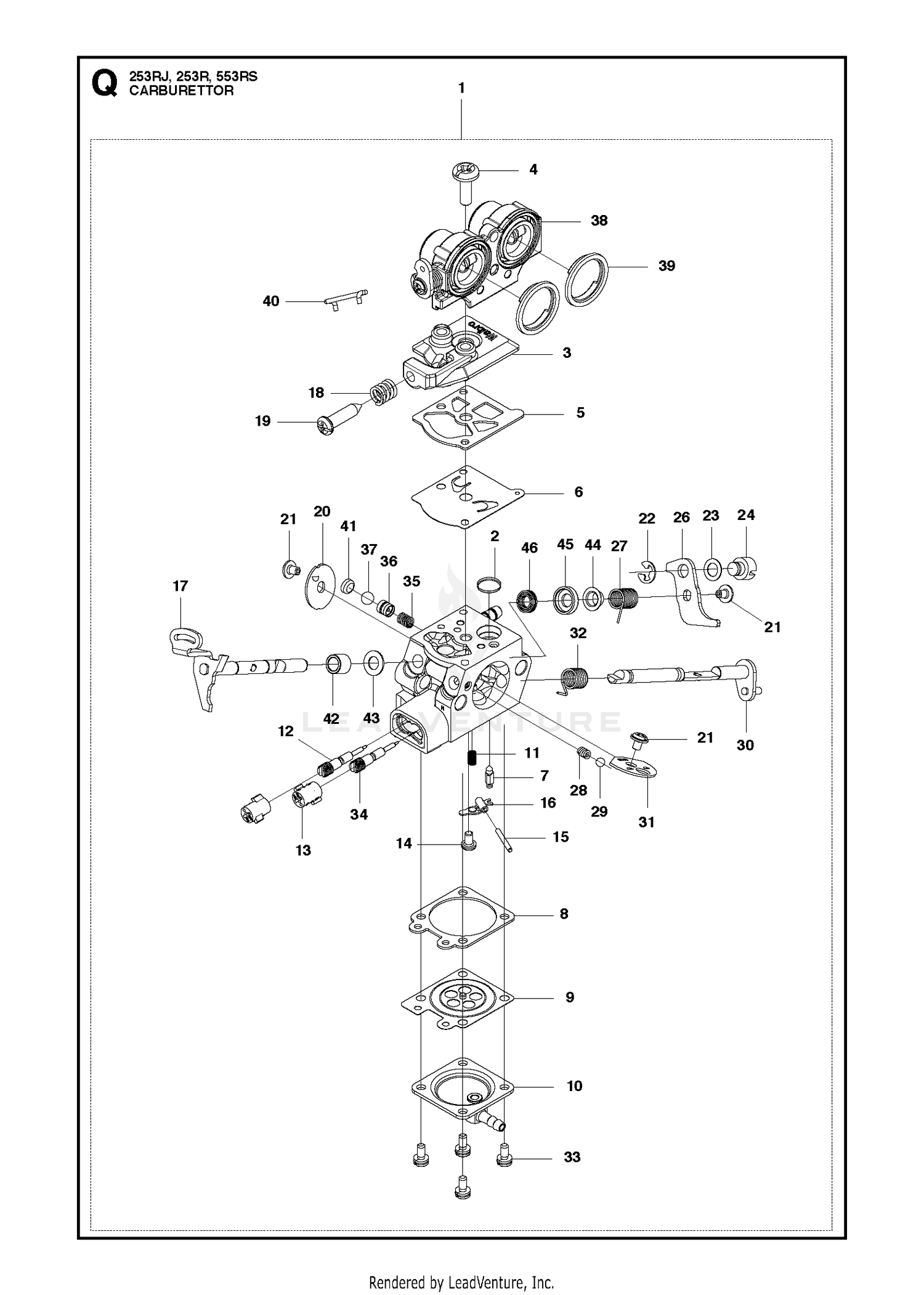

CARBURETOR
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 586346601 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 574012501 | RP_SCREEN (RPLS 331081380) This part replaces 520957001. Price: $3.99 |
| 3 | 521639801 | COVER Price: $11.92 |
| 4 | 521640001 | SCREW Price: $6.33 |
| 5 | 520954801 | GASKET Price: $9.99 |
| 6 | 520954901 | DIAPHRAGM Price: $6.99 |
| 7 | 521085401 | VALVE INLET Price: $11.99 |
| 8 | 516972101 | GASKET Price: $4.99 |
| 9 | 505306801 | DIAPHRAGM Price: $12.99 |
| 10 | 521639701 | COVER Price: $24.45 |
| 11 | 513290701 | SPRING Price: $2.73 |
| 12 | 511479901 | NEEDLE Price: $18.99 |
| 13 | 521116901 | CAP Price: $7.99 |
| 14 | 520977301 | SCREW Price: $4.99 |
| 15 | 520977401 | PIN Price: $4.99 |
| 16 | 520977201 | LEVER Price: $4.99 |
| 17 | 586451501 | NEEDS DESCRIPTION Price: Call Us |
| 18 | 513225601 | SPRING Price: $2.69 |
| 19 | 513192901 | SCREW Price: $3.92 |
| 20 | 511470201 | NEEDS DESCRIPTION Price: Call Us |
| 21 | 520759801 | SCREW Price: $2.99 |
| 22 | 516523601 | RING This part replaces 506738601. Price: $2.99 |
| 23 | 516524201 | WASHER Price: $2.99 |
| 24 | 513400801 | SWIVEL Price: $11.99 |
| 26 | 521645501 | LEVER, THROTTLE Price: $9.55 |
| 27 | 586451601 | NEEDS DESCRIPTION Price: Call Us |
| 28 | 574793401 | Price: Call Us |
| 29 | 514242601 | BALL Price: $5.99 |
| 30 | 521645101 | SHAFT, CHOKE Price: $24.33 |
| 31 | 525554901 | VALVE, CHOKE This part replaces 522649501. Price: $7.99 |
| 32 | 514243601 | SPRING Price: $2.99 |
| 33 | 520978801 | SCREW ASSY Price: $2.99 |
| 34 | 516935801 | NEEDLE Price: $19.99 |
| 35 | 505057901 | SPRING Price: $2.99 |
| 36 | 516935901 | PISTON Price: $5.99 |
| 37 | 516936001 | BALL Price: $2.99 |
| 38 | 521640901 | BODY ASSY Price: $63.82 |
| 39 | 522649401 | Price: Call Us |
| 40 | 578913201 | NEEDS DESCRIPTION Price: Call Us |
| 42 | 586451701 | NEEDS DESCRIPTION Price: Call Us |
| 43 | 586451801 | NEEDS DESCRIPTION Price: Call Us |
| 44 | 586451901 | NEEDS DESCRIPTION Price: Call Us |
| 45 | 586452001 | NEEDS DESCRIPTION Price: Call Us |
| 46 | 586452101 | NEEDS DESCRIPTION Price: Call Us |
