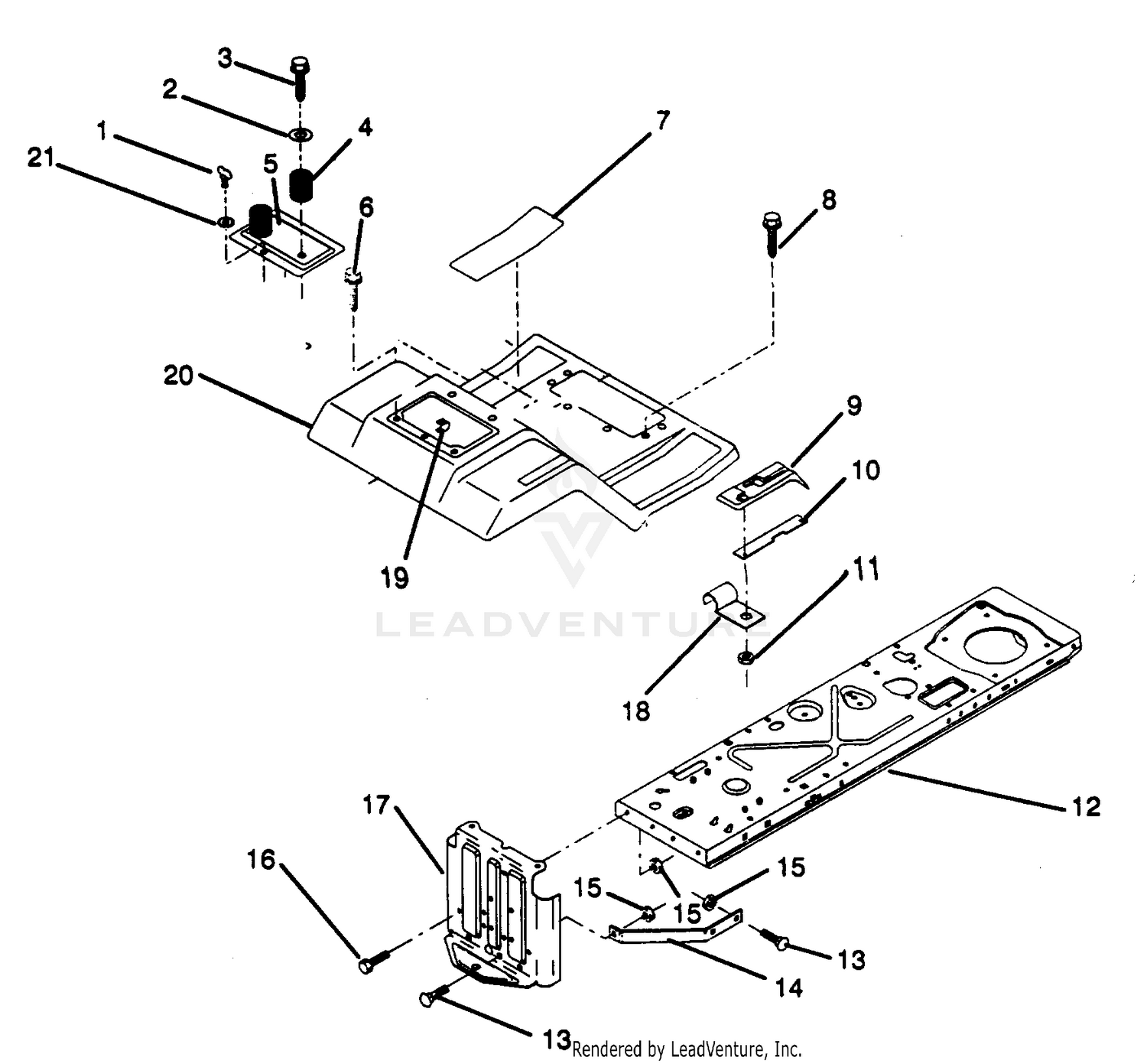

| Ref | Part Number | Description |
|---|
| 1 |
119-6702-03 |
FRAME-SUNSHADE Price: $497.25 |
| 1 |
532123650 |
Stud 1/4 Turn Price: $3.99 |
| 2 |
119-6744 |
RH ROPS MOUNTING BRACKET ASM Price: $159.37 |
| 2 |
819132012 |
Washer 13/32 x 1-1/4 x 12 Ga. (AYP part number) Price: $2.99 |
| 3 |
119-6745 |
LH ROPS MOUNTING BRACKET ASM Price: $94.75 |
| 3 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 4 |
119-6706 |
SUNSHADE W/DECAL ASM Price: $711.55 |
| 4 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 5 |
109-5013 |
PANHARD ROD ASM Price: $135.99 |
| 5 |
532124852 |
Door, Fender (AYP part number) Price: $3.33 |
| 6 |
817490508 |
Screw, Hex Wsh. Thrdrol. 5/16-18 x 1/2 (AYP part number) Price: $3.99 |
| 6 |
86-1990 |
WASHER-THRUST Price: $1.81 |
| 7 |
325-10 |
SCREW-HH Price: $1.82 |
| 7 |
532124144 |
Pad, Footrest (AYP part number) Price: $2.96 |
| 8 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 8 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 9 |
115-7721 |
NUT-CLIP, U Price: $0.81 |
| 9 |
532126993 |
Console, Shift Control (AYP part number) Price: $10.79 |
| 10 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 10 |
532124602 |
Bar, Shift Lock (AYP part number) Price: $4.42 |
| 11 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 11 |
532124346 |
Palnut (AYP part number) Price: $3.99 |
| 12 |
3234-36 |
SCREW-HHF Price: $0.75 |
| 12 |
532123645 |
Assembly, Frame (AYP part number) Price: $41.33 |
| 13 |
119-6732-03 |
BRACKET-MOUNTING, ROPS Price: $21.47 |
| 13 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 14 |
100-7067 |
U-BOLT (4 INCH) Price: $6.51 |
| 14 |
532123379 |
Brace, Drawbar (AYP part number) Price: $8.48 |
| 15 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 15 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 16 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 17 |
532127880 |
Drawbar (AYP part number) This part replaces 532121904. Price: $25.05 |
| 18 |
532126470 |
Clip, Insulated (AYP part number) Price: $3.99 |
| 19 |
532105839 |
Receptacle 1/4 Turn (AYP part number) Price: $3.99 |
| 20 |
532124881 |
Fender/Footrest (AYP part number) Price: $3.33 |
| 21 |
532105838 |
Retainer 1/4 Turn (AYP part number) Price: $3.99 |
