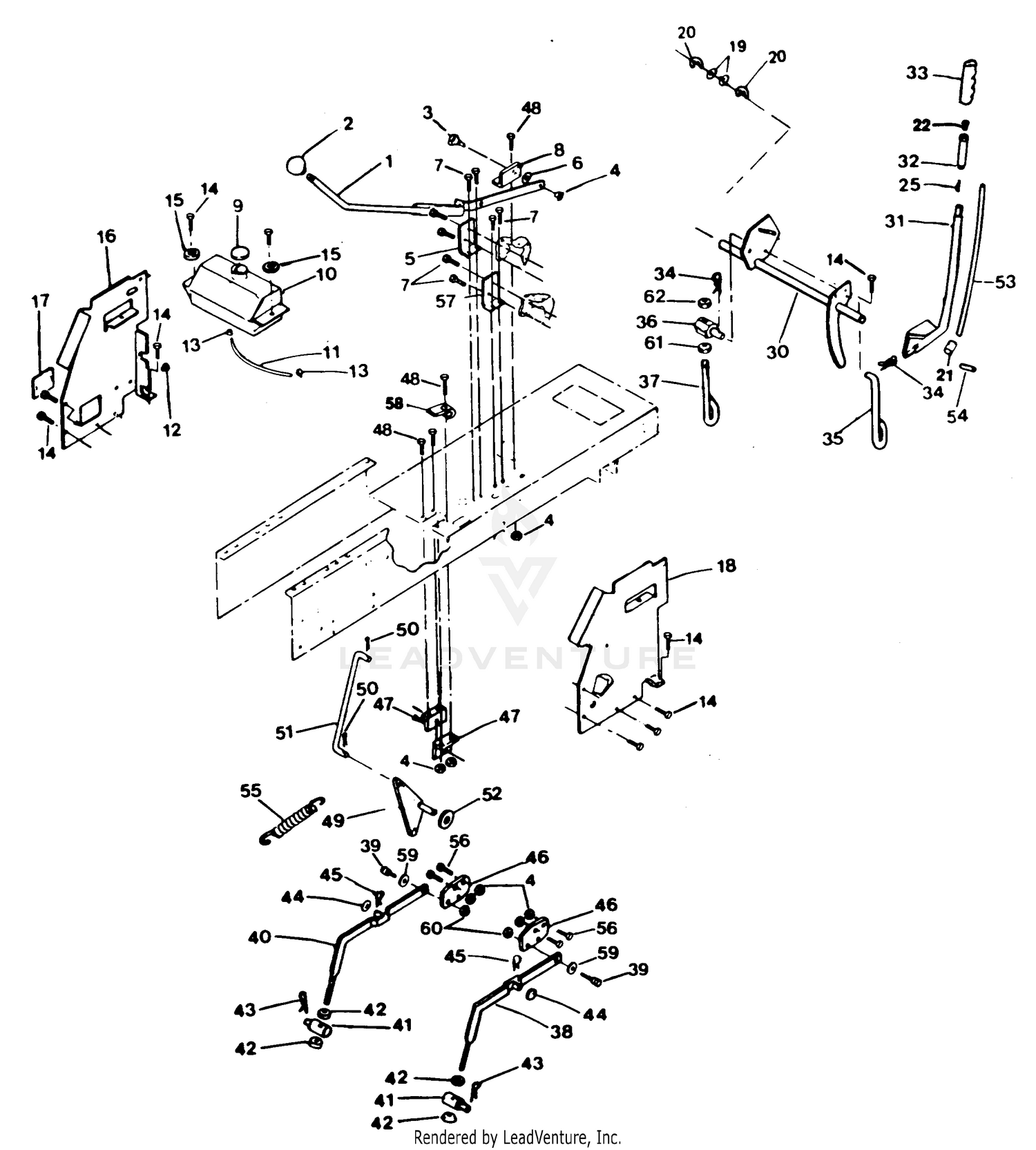

| Ref | Part Number | Description |
|---|
| 1 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
3217-6 |
NUT-HEX Price: $1.19 |
| 2 |
532106932 |
Knob (AYP part number) Price: $2.99 |
| 3 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 3 |
532106451 |
Shoulder Bolt (AYP part number) Price: $2.99 |
| 4 |
26-7120 |
DISCONTINUED Price: Call Us |
| 4 |
873680600 |
Crownlock Nut Price: $1.99 |
| 5 |
29-5590-03 |
BRACKET-PIVOT This part replaces 27-1120. Price: $23.25 |
| 5 |
532106452 |
Interlock Switch Bracket (AYP part number) Price: $3.33 |
| 6 |
26-7980 |
DISCONTINUED Price: Call Us |
| 6 |
532052160 |
Washer (AYP part number) This part replaces 819171516. Price: $3.99 |
| 7 |
3230-1 |
BOLT-CARR This part replaces 3230-20. Price: $1.49 |
| 7 |
817021008 |
Tapping Hex Screw (AYP part number) Price: $1.99 |
| 8 |
27-0730 |
PIVOT PIN WA *RO Price: $39.29 |
| 8 |
532106447 |
Clutch Support Lever (AYP part number) Price: $3.33 |
| 9 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 9 |
532184900 |
TANK.ASM.FUEL.FRONT.W/CAP This part replaces 532109202. Price: $27.99 |
| 10 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 10 |
532184900 |
TANK.ASM.FUEL.FRONT.W/CAP This part replaces 532109202. Price: $27.99 |
| 11 |
3218-3 |
NUT-JAM Price: $0.25 |
| 11 |
532008548 |
Fuel Line (AYP part number) Price: $2.99 |
| 12 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 12 |
532009151 |
Grommet (AYP part number) Price: $2.99 |
| 13 |
5-1077 |
KEY-SQUARE Price: $6.18 |
| 13 |
532123487 |
Hose Clamp (AYP part number) Price: $3.99 |
| 14 |
28-9060 |
PLATE-IDLER This part replaces 27-8460. Price: $137.75 |
| 14 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 15 |
819131612 |
Washer (AYP part number) Price: $3.99 |
| 15 |
99-1297 |
IDLER ARM ASM This part replaces 27-8580. Price: $133.94 |
| 16 |
107-3039 |
PIN-LYNCH This part replaces 3290-243. Price: $6.96 |
| 16 |
532106920 |
L.H. Dash Panel (AYP part number) Price: $3.33 |
| 17 |
3296-5 |
NUT-HEX Price: $3.09 |
| 17 |
532121794 |
Access Cover (AYP part number) Price: $3.99 |
| 18 |
27-1080 |
DISCONTINUED X-REF Price: Call Us |
| 18 |
532124431 |
R.H. Dash Panel (AYP part number) Price: $3.33 |
| 19 |
3211-6 |
SCREW-HH Price: $3.87 |
| 19 |
819291016 |
Washer (AYP part number) Price: $3.33 |
| 20 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 20 |
812000022 |
E-Ring (AYP part number) Price: $3.99 |
| 21 |
532105766 |
Lift Lever Couple (AYP part number) Price: $3.33 |
| 21 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 22 |
27-0750 |
DISCONTINUED Price: Call Us |
| 22 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 23 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 24 |
27-1160 |
V-BELT Price: $51.80 |
| 25 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 25 |
7-4150 |
WASHER Price: $1.19 |
| 26 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 27 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 28 |
27-0970-03 |
PULLEY ASM This part replaces 27-0970. Price: $51.99 |
| 29 |
253-139 |
SEAL-OIL Price: $12.45 |
| 30 |
27-0960 |
BEARING ASM Price: $58.99 |
| 30 |
532120420 |
Lift Shaft (AYP part number) Price: $3.33 |
| 31 |
27-5970 |
SPACER-SET, MATCHED Price: $57.99 |
| 31 |
532105768 |
Assembly Lever (AYP part number) Price: $3.33 |
| 32 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 32 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 33 |
27-7680-03 |
RING-DECK SUPPORT This part replaces 27-7680. Price: $70.99 |
| 33 |
532109413 |
Handle Grip (AYP part number) Price: $2.99 |
| 34 |
26-7970 |
CAUTION DECAL (BLADE) Price: $14.83 |
| 34 |
532124670 |
Spring Retainer (AYP part number) Price: $5.99 |
| 35 |
532110029 |
Lift Link (AYP part number) Price: $3.45 |
| 35 |
61-4160 |
HOUSING-SPINDLE This part replaces 27-0880. Price: $131.00 |
| 36 |
32128-21 |
NUT-HF Price: $0.39 |
| 36 |
532110447 |
Lift Trunnion (AYP part number) Price: $9.99 |
| 37 |
27-0950 |
SPACER Price: $29.99 |
| 37 |
532110448 |
Adjustable Lift Link (AYP part number) Price: $7.99 |
| 38 |
27-0920 |
SHAFT Price: $158.07 |
| 38 |
532121598 |
R.H. Arm Suspension (AYP part number) Price: $14.99 |
| 39 |
27-0990-03 |
BLADE-18 INCH This part replaces 27-0990. Price: $18.94 |
| 39 |
532105848 |
Shoulder Bolt (AYP part number) Price: $2.02 |
| 40 |
532121599 |
L.H. Suspension Arm (AYP part number) Price: $21.14 |
| 40 |
72-9361 |
CUP-SCALP, ANTI This part replaces 27-1000. Price: $39.78 |
| 41 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 41 |
532175689 |
TRUNNION This part replaces 532106308. Price: $2.99 |
| 42 |
3213-8 |
SCREW-HH Price: $2.58 |
| 42 |
873350800 |
NUT.HEX.JAM.1/2-13 This part replaces 873220800. Price: $1.99 |
| 43 |
328-9 |
SCREW-HH Price: $16.42 |
| 43 |
532009135 |
Spring Retainer (AYP part number) Price: $2.99 |
| 44 |
302-49 |
GREASE FITTING Price: $3.29 |
| 44 |
532052160 |
Washer (AYP part number) This part replaces 819171516. Price: $3.99 |
| 45 |
27-1200 |
SPANNER BUSHING Price: $11.99 |
| 45 |
532004921 |
Spring Retainer (AYP part number) Price: $3.99 |
| 46 |
27-1190 |
WHEEL Price: $74.99 |
| 46 |
532105864 |
Suspension Bracket (AYP part number) Price: $2.38 |
| 47 |
27-1210 |
ROLLER BEARING Price: $32.99 |
| 47 |
532106444 |
Bellcrank Bracket (AYP part number) Price: $2.38 |
| 48 |
27-1180 |
BEARING RETAINER Price: $3.37 |
| 48 |
874760612 |
Hex Bolt 3/8-16 x 3/4 (AYP part number) Price: $1.99 |
| 49 |
27-1170 |
THRUST WASHER Price: $3.66 |
| 49 |
532109728 |
Bellcrank Assembly (AYP part number) Price: $10.91 |
| 50 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 50 |
876020412 |
Cotter Pin (AYP part number) Price: $3.99 |
| 51 |
27-1010-01 |
FORK-CASTOR,FRONT This part replaces 27-1010. Price: $87.00 |
| 51 |
532106446 |
Primary Clutch Rod (AYP part number) Price: $11.99 |
| 52 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 52 |
734117201 |
WASHER This part replaces 819131410. Price: $1.99 |
| 53 |
27-1040 |
SPACER Price: $10.59 |
| 53 |
532105765 |
Lift Lever Rod (AYP part number) Price: $3.33 |
| 54 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 54 |
532105767 |
Groove Pin (AYP part number) Price: $2.99 |
| 55 |
532106810 |
Extension Spring (AYP part number) Price: $11.99 |
| 56 |
3-6782 |
CASTOR SLINGER Price: $18.91 |
| 56 |
872140606 |
Screw (AYP part number) Price: $3.99 |
| 57 |
26-1580 |
SPACER 1/2 IN Price: $9.91 |
| 57 |
532108236 |
Switch Bracket (AYP part number) Price: $2.99 |
| 58 |
532005320 |
Insulated Clip (AYP part number) Price: $5.99 |
| 58 |
68-7280 |
DECAL - BLD BOLT TORQUE This part replaces 26-7960. Price: $11.26 |
| 59 |
532110739 |
Spring Washer (AYP part number) Price: $2.99 |
| 60 |
323-15 |
SCREW-HH Price: $1.53 |
| 60 |
873680600 |
LOCKNUT This part replaces 873980600. Price: $1.99 |
| 61 |
873610700 |
NUT.ASF.HEX.7/16 This part replaces 873360700. Price: $3.99 |
