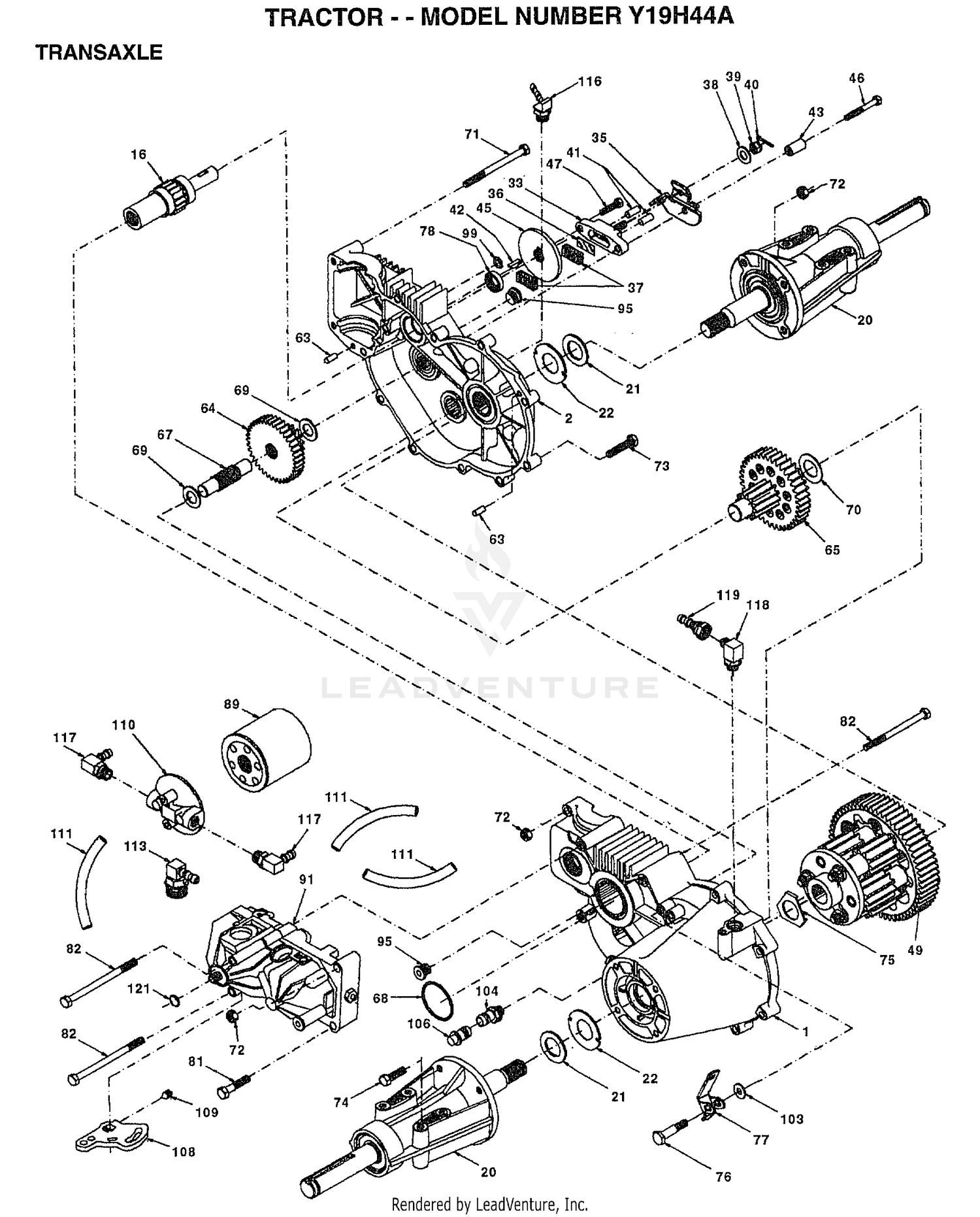

| Ref | Part Number | Description |
|---|
| 1 |
142874 |
HOUSING LH 70086 Price: Call Us |
| 1 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 2 |
142875 |
HOUSING RH 70088 Price: Call Us |
| 2 |
93-8743 |
FOOTPAD-TURN Price: $27.95 |
| 3 |
3218-5 |
NUT-JAM Price: $0.27 |
| 4 |
21-2850-01 |
MOUNT-PEDAL, RH This part replaces 21-2850. Price: $69.64 |
| 5 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 6 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 7 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 8 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 9 |
95-1821 |
SPRING-COMPRESSION Price: $6.71 |
| 10 |
82-8670 |
ROD-LATCH, BRAKE Price: $61.33 |
| 11 |
233-17 |
KNOB Price: $10.58 |
| 12 |
82-8930 |
DECAL-BRAKE, PARKING Price: $24.40 |
| 13 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 14 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 15 |
108-1380 |
LH BRAKE CABLE ASM This part replaces 21-3380. Price: $162.33 |
| 16 |
142876 |
SHAFT BRAKE 62877 Price: Call Us |
| 16 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 17 |
23-2240-03 |
PUMP CONTROL TUBE ASM This part replaces 23-2240. Price: $209.72 |
| 18 |
94-3304-01 |
SUPPORT-PEDAL This part replaces 94-3304. Price: $121.34 |
| 19 |
94-3308 |
PAD-PEDAL, TRACTION Price: $8.96 |
| 20 |
142877 |
AXLE MTG 70087 Price: Call Us |
| 20 |
88-1640 |
PIN-PEDAL, TRACTION Price: $17.64 |
| 21 |
142878 |
WASHER 44805 Price: Call Us |
| 21 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 22 |
142879 |
WASHER 44806 Price: Call Us |
| 22 |
88-1650 |
SHAFT-PEDAL, TRACTION Price: $55.18 |
| 23 |
88-1670 |
PIVOT BRACKET ASM Price: $109.29 |
| 24 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 25 |
28-5220 |
FRICTION WHEEL ASM Price: $108.15 |
| 26 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 27 |
3220-3 |
NUT-HJ Price: $0.28 |
| 28 |
3217-7 |
NUT-HEX Price: $0.28 |
| 29 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 30 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 31 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 32 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 33 |
142929 |
YOKE.BRAKE.62589 Price: Call Us |
| 33 |
3274-47 |
SCREW-HSFH Price: $0.53 |
| 34 |
105-0066-01 |
BRAKE PEDAL MOUNT ASM Price: $77.75 |
| 35 |
142880 |
ARM BRAKE 50214 Price: Call Us |
| 35 |
27-9270-01 |
PIVOT SHAFT MOUNT ASM This part replaces 27-9270. Price: $81.41 |
| 36 |
105-0065 |
PARKING BRAKE SHAFT ASM Price: $78.53 |
| 36 |
142882 |
PUCK PLATE 44134 Price: Call Us |
| 37 |
142883 |
PUCK BRAKE 44132 Price: Call Us |
| 37 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 38 |
142884 |
WASHER HYD 44130 Price: Call Us |
| 39 |
142885 |
SUB= 144607 Price: Call Us |
| 39 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 40 |
142886 |
SUB= 144608 Price: Call Us |
| 40 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 41 |
142887 |
PIN BRAKE 44127 Price: Call Us |
| 41 |
27-7490 |
LH BRAKE PEDAL ASM Price: $347.33 |
| 42 |
142888 |
KEY HI PRO 44143 Price: Call Us |
| 42 |
27-7510 |
RH BRAKE PEDAL ASM Price: $321.91 |
| 43 |
142889 |
SPACER 50259 Price: Call Us |
| 43 |
256-10 |
BUSHING-FLANGE Price: $3.68 |
| 44 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 45 |
142890 |
DISC BRAKE 44090 Price: Call Us |
| 45 |
27-8550-01 |
PARKING BRAKE PEDAL ASM This part replaces 27-8550. Price: $324.09 |
| 46 |
142891 |
BOLT 1/4-20 44276 Price: Call Us |
| 46 |
3220-5 |
NUT-JAM Price: $0.65 |
| 47 |
142892 |
BOLT 1/4-20 44433 Price: Call Us |
| 47 |
94-3307 |
PAD-PEDAL, TRACTION Price: $12.11 |
| 48 |
88-1680-01 |
BRACKET-FOOTREST This part replaces 88-1680. Price: $17.86 |
| 49 |
142893 |
DIFFERENTIAL62834 Price: Call Us |
| 49 |
88-0470 |
TUBE-SPACER, PEDAL Price: $10.25 |
| 50 |
88-1710-01 |
FOOTREST ASM This part replaces 88-1710. Price: $62.29 |
| 51 |
88-1720 |
PAD-FOOTREST Price: $5.27 |
| 52 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 53 |
32128-25 |
NUT-HF Price: $3.19 |
| 54 |
325-14 |
SCREW-HH This part replaces 323-42. Price: $2.64 |
| 55 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 56 |
323-14 |
SCREW-HH Price: $1.34 |
| 57 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 58 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 59 |
105-0064 |
SPACER-SWITCH Price: $10.72 |
| 60 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 63 |
142894 |
PIN DOWL 44757 Price: Call Us |
| 64 |
142896 |
GEAR R14-38 44775 Price: Call Us |
| 65 |
142897 |
PINION DRIV 70051 Price: Call Us |
| 67 |
142898 |
SHAFT-44779 Price: Call Us |
| 68 |
142899 |
O RING 44781 Price: Call Us |
| 69 |
142900 |
WASHER 44795 Price: Call Us |
| 70 |
142901 |
WASHER 44794 Price: Call Us |
| 71 |
142902 |
BOLT 5/16 44827 Price: Call Us |
| 72 |
142903 |
NUT HXLK 43064 Price: Call Us |
| 73 |
142904 |
BOLT 5/16 44841 Price: Call Us |
| 74 |
142905 |
SCREW 5/16 45089 Price: Call Us |
| 75 |
142906 |
WASHER DIF 44880 Price: Call Us |
| 76 |
142907 |
BOLT SHOULD 44785 Price: Call Us |
| 77 |
142908 |
ARM FREEWHL 44786 Price: Call Us |
| 78 |
142909 |
SEAL.OIL.44761 Price: Call Us |
| 81 |
142910 |
BOLT 5/16 43084 Price: Call Us |
| 82 |
142911 |
BOLT 5/16 44820 Price: Call Us |
| 89 |
142912 |
FILTER SPIN 50037 Price: Call Us |
| 91 |
142913 |
SUB= 144576 Price: Call Us |
| 95 |
142914 |
PLUG.9005110-5600 Price: Call Us |
| 99 |
142915 |
SUB= 142904 Price: Call Us |
| 103 |
142916 |
WASHER.50169 Price: Call Us |
| 104 |
142917 |
CAP.VENT.70109 Price: Call Us |
| 106 |
142918 |
O-RING.ASM.70110 Price: Call Us |
| 108 |
142919 |
ARM.CONTROL.45007 Price: Call Us |
| 109 |
142920 |
SCREW.SET.50018. Price: Call Us |
| 110 |
142921 |
FILTER.HEAD.50207 Price: Call Us |
| 111 |
142922 |
HOSE.5/16.50208. Price: Call Us |
| 113 |
142923 |
FITTING.SAE.50210 Price: Call Us |
| 116 |
142924 |
FITTING.SAE.50213 Price: Call Us |
| 117 |
142925 |
FITTING.SAE.50249 Price: Call Us |
| 118 |
142926 |
FITTING.MAL.50251 Price: Call Us |
| 119 |
142927 |
FITTING.FEM.50250 Price: Call Us |
