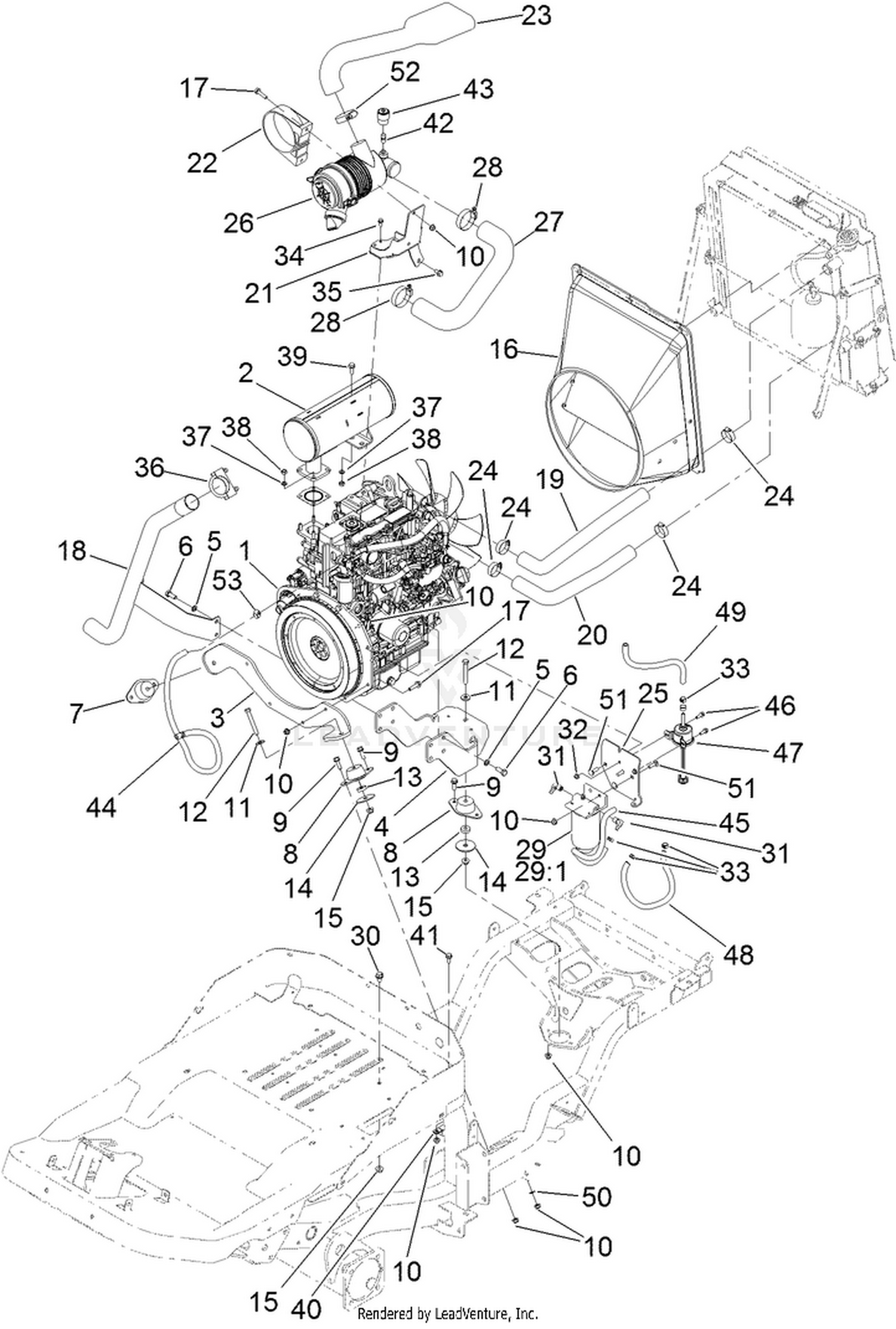

| Ref | Part Number | Description |
|---|
| 1 |
133-6570 |
ENGINE-YANMAR Price: $5,771.15 |
| 2 |
139-6269 |
MUFFLER ASM This part replaces 137-5882. Price: $281.37 |
| 3 |
138-4464-0P |
MOUNT-ENGINE, FRONT [PRIMED] This part replaces 138-4464-03. Price: $78.24 |
| 4 |
138-0424-0P |
MOUNT-ENGINE, REAR 24HP [PRIMED This part replaces 138-0424-03. Price: $129.26 |
| 5 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 6 |
33115-025 |
SCREW-HH Price: $0.61 |
| 7 |
139-0856 |
MOUNT-ENGINE Price: $28.21 |
| 8 |
125-5244 |
MOUNT-ENGINE Price: $34.40 |
| 9 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 10 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 11 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 12 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 13 |
62-6660 |
SPACER Price: $0.79 |
| 14 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 15 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 16 |
139-6279 |
SHROUD - FAN ASM Price: $277.50 |
| 17 |
3234-36 |
SCREW-HHF Price: $0.75 |
| 18 |
144-0488 |
KIT-EXHAUST, 24HP This part replaces 137-5883. Price: $82.13 |
| 19 |
138-4493 |
HOSE-RADIATOR, UPPER Price: $30.57 |
| 20 |
138-4494 |
HOSE-RADIATOR, LOWER Price: $29.42 |
| 21 |
138-4486-03 |
BRACKET-AIR CLEANER [BLACK] Price: $81.00 |
| 22 |
95-5806 |
BRACKET-MOUNTING Price: $28.01 |
| 23 |
138-4460 |
HOSE-INTAKE, AIR CLEANER Price: $88.04 |
| 24 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 25 |
138-4472-03 |
ANGLE-MOUNT, FILTER Price: $15.49 |
| 26 |
93-2190 |
AIR CLEANER ASM Price: $217.17 |
| 27 |
137-5881 |
HOSE-INTAKE Price: $42.83 |
| 28 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 29 |
110-9044 |
SEPARATOR-FILTER Price: $98.19 |
| 30 |
3234-9 |
SCREW-HHF Price: $1.36 |
| 31 |
353-781 |
FITTING-HYD, 90 Price: $24.44 |
| 32 |
104-7201 |
NUT-HF Price: $0.69 |
| 33 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 34 |
33103-016 |
SCREW-HHF Price: $5.18 |
| 35 |
33104-016 |
SCREW-HHF Price: $0.97 |
| 36 |
18-2130 |
CLAMP Price: $5.63 |
| 37 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 38 |
33014-00 |
NUT-HEX Price: $0.25 |
| 39 |
33104-025 |
SCREW-HHF Price: $6.47 |
| 40 |
120-1959 |
CLAMP Price: $1.97 |
| 41 |
3234-47 |
SCREW-HHF Price: $1.79 |
| 42 |
94-1416 |
ADAPTER-INDICATOR Price: $11.87 |
| 43 |
93-9164 |
INDICATOR-MINI Price: $55.24 |
| 44 |
132-7563 |
HOSE-BREATHER, TRANSMISSION Price: $9.02 |
| 45 |
110-4112 |
HOSE-FUEL Price: $12.60 |
| 46 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 47 |
121-5613 |
PUMP-FUEL, ELECTRIC Price: $285.82 |
| 48 |
110-4101 |
HOSE-FUEL Price: $16.81 |
| 49 |
110-4104 |
HOSE-FUEL Price: $8.95 |
| 50 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 51 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 52 |
2412-130 |
CLAMP-HOSE Price: $2.57 |
