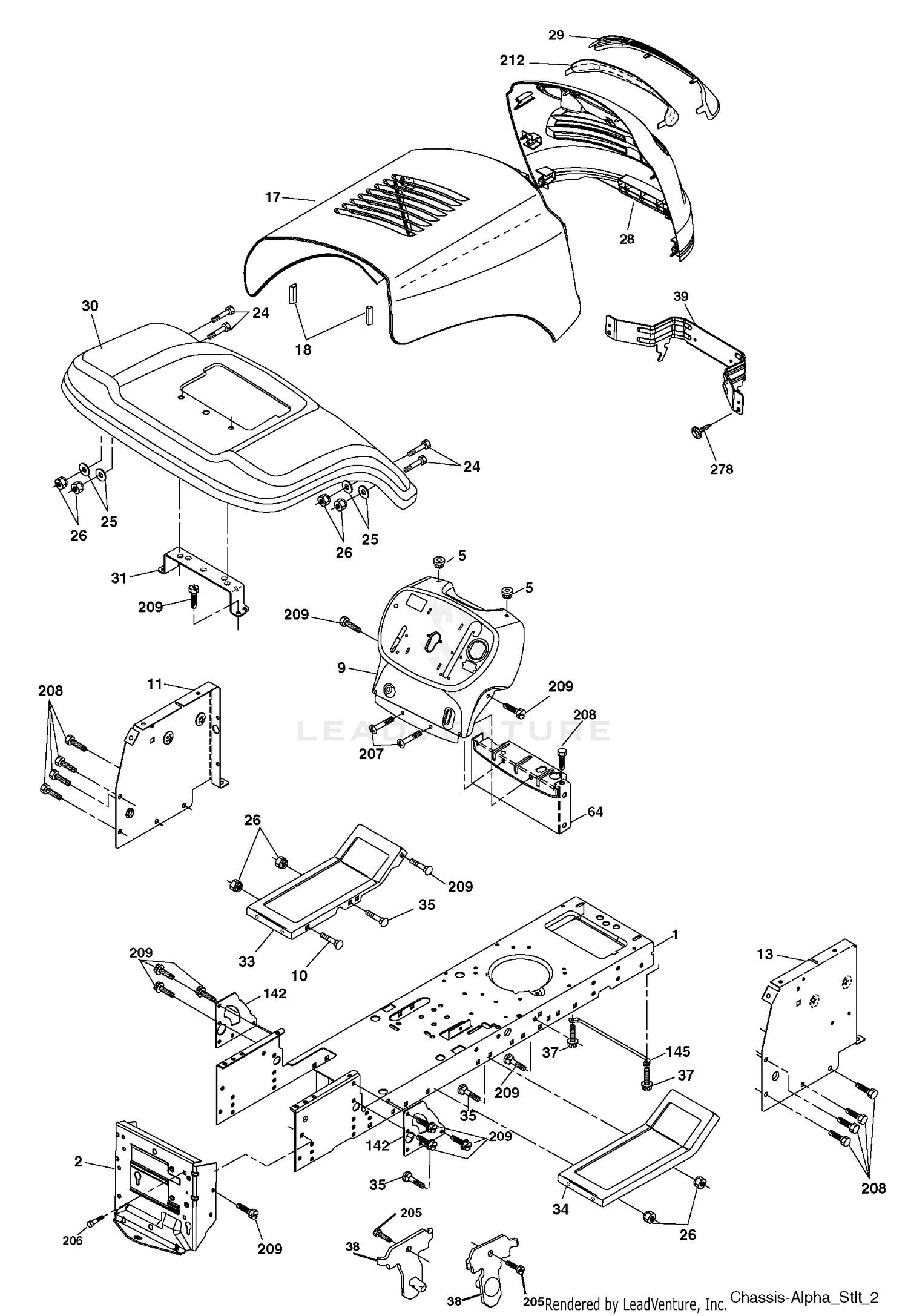

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar, Stretch Price: Call Us |
| 5 |
155272 |
Bumper, Hood/Dash Price: Call Us |
| 9 |
193510X010 |
Dash Price: Call Us |
| 10 |
72140608 |
Bolt, Carriage 3/8-16 x 1 Price: Call Us |
| 10 |
98-9419 |
OIL PIPE ASM Price: $64.29 |
| 11 |
174996 |
Panel Dash LH Price: Call Us |
| 13 |
172105X010 |
Panel Slkscr Dash RH Price: Call Us |
| 17 |
187559X428 |
Hood Price: Call Us |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 20 |
115-4126 |
BOLT-JOINT, EYE This part replaces 98-9418. Price: $12.34 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 unc Price: Call Us |
| 29 |
187567X599 |
Lens Grille Basic Bar Price: Call Us |
| 30 |
192526X428 |
Fender Price: Call Us |
| 30 |
99-8346 |
GASKET Price: $1.43 |
| 31 |
136619 |
Bracket Fender Repl 109873X Price: Call Us |
| 33 |
179716X428 |
Footrest Pnt LH Price: Call Us |
| 34 |
179717X428 |
Footrest Pnt RH Price: Call Us |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Price: Call Us |
| 39 |
187568 |
Bracket Pivot Price: Call Us |
| 40 |
98-9417 |
BOLT-JOINT, EYE Price: $12.10 |
| 50 |
138-1238 |
KIT-PIPE, OIL This part replaces 98-9461. Price: $212.76 |
| 60 |
108-4422 |
GASKET This part replaces 98-9435. Price: $1.48 |
| 64 |
154798 |
Dash Lower Price: Call Us |
| 70 |
98-7605 |
BOLT Price: $0.84 |
| 80 |
99-8383 |
OIL PIPE ASM Price: $63.74 |
| 90 |
98-9722 |
O-RING This part replaces 98-9374. Price: $2.07 |
| 100 |
98-9721 |
PIPE-OIL Price: $14.77 |
| 110 |
98-9714 |
CLAMP-HOSE Price: $2.66 |
| 120 |
98-9601 |
CLAMP-PIPE Price: $6.61 |
| 130 |
98-9591 |
PIN-BAND Price: $6.96 |
| 140 |
104-5158 |
OIL COOLER ASM Price: $456.20 |
| 142 |
175702 |
Plate Reinforcement Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 150 |
98-9724 |
PIPE-COOLER, OIL Price: $31.43 |
| 160 |
98-9578 |
PIPE-RETURN, WATER Price: $11.28 |
| 170 |
98-9579 |
BAND-PIPE Price: $5.22 |
| 180 |
98-9727 |
COLLAR Price: $9.86 |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 212 |
187569 |
Insert Lens Refl ect Price: Call Us |
| 278 |
191611 |
Screw 10 x 3/4 Single Lead-Hex Price: Call Us |
| 278 |
5479J |
Plug Button Blk 359 Dia Choke Price: Call Us |
