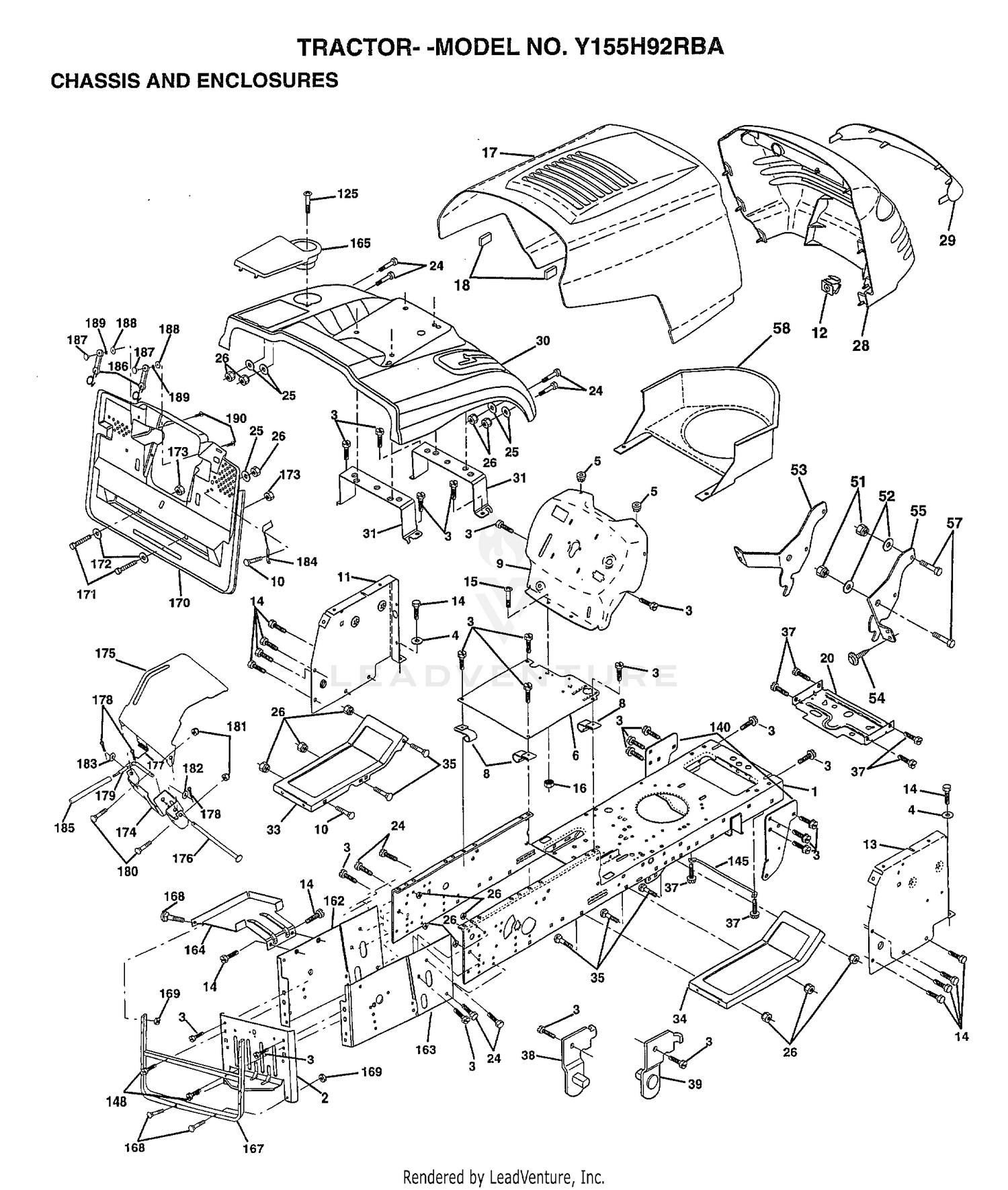

| Ref | Part Number | Description |
|---|
| 1 |
165480 |
CHASSIS.STAMPING Price: Call Us |
| 2 |
165606 |
DRAWBAR.CRD Price: Call Us |
| 2 |
52-9230 |
RING-RETAINING Price: $26.68 |
| 3 |
17490612 |
SCREW Price: Call Us |
| 3 |
92-8691 |
BUSHING Price: $71.11 |
| 4 |
19131216 |
WASHER Price: Call Us |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 6 |
155923 |
SADDLE Price: Call Us |
| 8 |
59-6730 |
RACE Price: $10.63 |
| 9 |
147631X011 |
DASH.SILKSCREEN Price: Call Us |
| 9 |
59-6740 |
BEARING Price: $28.82 |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 12 |
83-1860 |
SPRING CENTERING KIT Price: $29.85 |
| 13 |
155934X010 |
SUB= 169117X010 Price: Call Us |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 15 |
74180512 |
SCREW Price: Call Us |
| 15 |
92-8697 |
PLATE-WEAR Price: $104.38 |
| 16 |
70-8250 |
DRIVE Price: $204.62 |
| 16 |
73510500 |
NUT Price: Call Us |
| 17 |
159639X505 |
HOOD.STEEL.ASSY Price: Call Us |
| 17 |
83-1870 |
GEROTOR SUB ASM Price: $545.33 |
| 18 |
126938X |
SUB= 532126938 Price: Call Us |
| 18 |
92-8694 |
CAP-END Price: $115.35 |
| 19 |
92-8696 |
SCREW-HEAD, TORX Price: $3.60 |
| 20 |
59-6830 |
CENTERING PIN KIT Price: $3.98 |
| 21 |
52-9290 |
RETAINER-CHECKBALL Price: $15.41 |
| 22 |
52-9280 |
CHECKBALL Price: $7.01 |
| 24 |
52-9270 |
SEAT-CHECKBALL Price: $35.12 |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
52-9260 |
SCREW-SET Price: $8.09 |
| 26 |
73800600 |
NUT Price: Call Us |
| 27 |
92-8690 |
STEERING CONTROL VALVE ASM This part replaces 83-1880. Price: $1,180.24 |
| 28 |
157373 |
GRILLE-MS428 Price: Call Us |
| 29 |
140273X599 |
LENS.GRILLE.PRIVATE LABEL Price: Call Us |
| 30 |
165713X505 |
FENDER.AUTO Price: Call Us |
| 31 |
165156 |
BRKT.SUPT.FENDER.CRD Price: Call Us |
| 33 |
145244X505 |
FOOTREST.LH.LT/GT Price: Call Us |
| 34 |
145243X505 |
FOOTREST.RH.LT/GT Price: Call Us |
| 35 |
72110606 |
BOLT Price: Call Us |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
161464 |
SCREW.HEX.WS.HD Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
150127 |
AIR DUCT Price: Call Us |
| 125 |
74180412 |
SCREW Price: Call Us |
| 140 |
158418 |
BRKT SUSPENSION Price: Call Us |
| 148 |
17490620 |
SCREW Price: Call Us |
| 162 |
165672 |
BRKT.EXT.CHASSIS.LH.CRD Price: Call Us |
| 163 |
165673 |
BRKT.EXT.CHASSIS.RH.CRD Price: Call Us |
| 164 |
165605 |
SUPPORT.BATTERY.CRD Price: Call Us |
| 165 |
165742X428 |
COVER.BATTERY.CRD.BLACK.LT Price: Call Us |
| 167 |
165779 |
SUPT.ASM.BACKPLATE Price: Call Us |
| 168 |
72050412 |
BOLT-RD HD SQ NK Price: Call Us |
| 169 |
123976X |
SUB= 73900400 Price: Call Us |
| 170 |
165607 |
COVER.BACKPLATE.BLACK Price: Call Us |
| 171 |
74520640 |
BOLT.HEX.3/8-16X2-1/2 Price: Call Us |
| 172 |
19132016 |
SUB= 19132012 Price: Call Us |
| 173 |
73510600 |
NUT Price: Call Us |
| 174 |
165939 |
BRKT.SWITCH.FBI.CRD Price: Call Us |
| 175 |
166212 |
GRUARD.DOOR.REAR.CRD Price: Call Us |
| 176 |
128600 |
HINGE PIN Price: Call Us |
| 177 |
132796 |
SPRING.COVER.LH Price: Call Us |
| 178 |
76520312 |
SUB= 76020312 Price: Call Us |
| 179 |
165942 |
ROD.PIVOT.FBI.CRD Price: Call Us |
| 180 |
74760516 |
SUB= 77394 Price: Call Us |
| 181 |
73680500 |
SUB= 73690500 Price: Call Us |
| 182 |
138200 |
WASHER.385X.625 Price: Call Us |
| 183 |
19131316 |
WASHER Price: Call Us |
| 184 |
166139 |
BRKT.ACTUATOR.BAG.CRD Price: Call Us |
| 185 |
165940 |
TUBE.LEVER.SWCH.FBI.CRD Price: Call Us |
| 186 |
160793 |
LATCH ASSY.BAGGER Price: Call Us |
| 187 |
2029J |
WELDNUT Price: Call Us |
| 188 |
19061216 |
WASHER #10 Price: Call Us |
| 189 |
10071000 |
LOCKWASHER Price: Call Us |
| 190 |
71161010 |
SCREW Price: Call Us |
