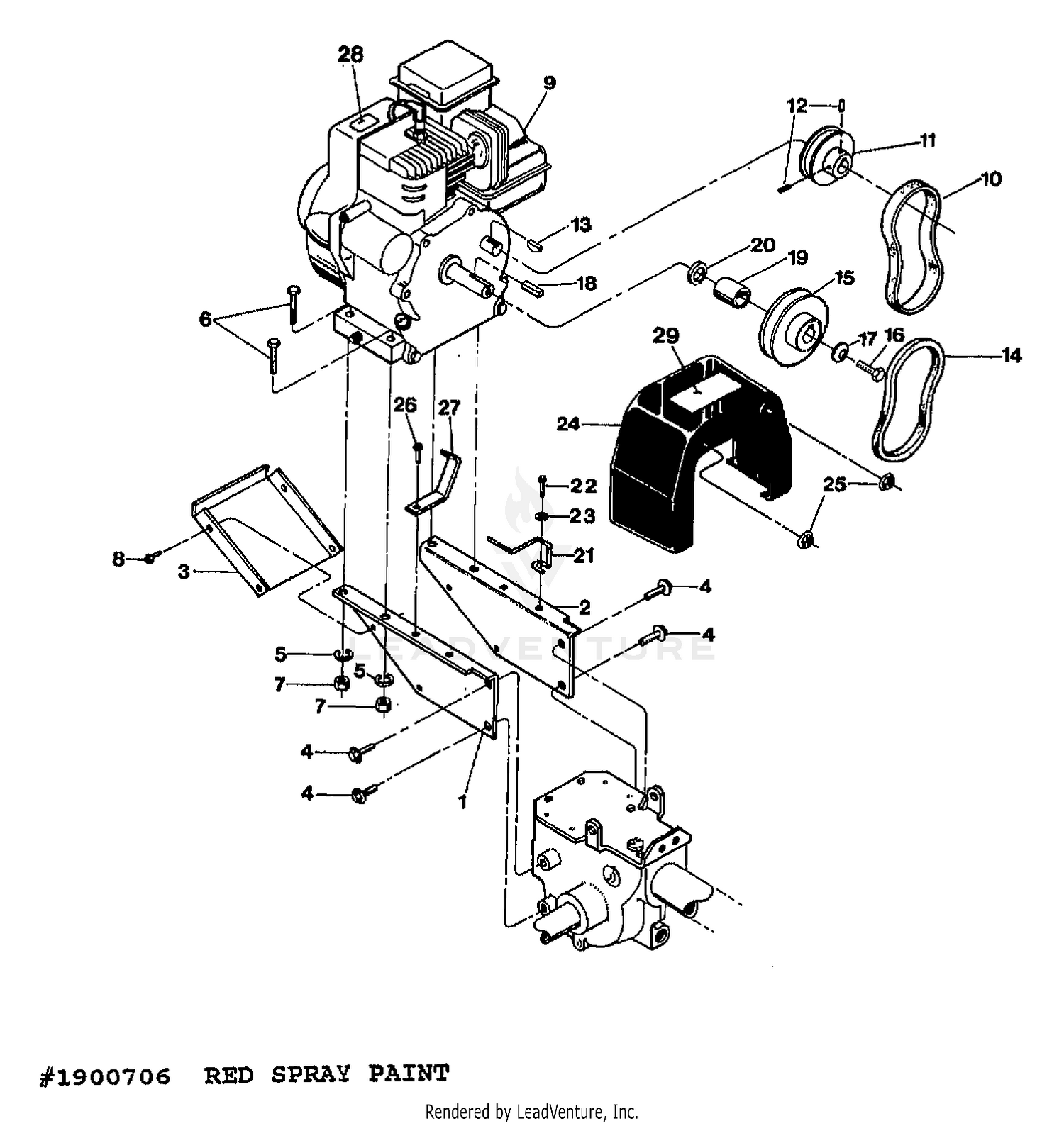

| Ref | Part Number | Description |
|---|
| 1 |
20754 |
BRKT-ENG LT P4 Not Available Price: |
| 2 |
20755 |
BRKT-ENG RT PNT Not Available Price: |
| 3 |
786-04080-0638 |
Belts/Pulleys Guard This part replaces 20673. Price: $18.41 |
| 4 |
90044 |
SCR-HFLK 5/16-18X.75 ZP Price: Call Us |
| 5 |
9912 |
WASHER-LK .312 ZP Price: $19.56 |
| 6 |
9758 |
SCR-HH 5/16-18X1.5 G5 ZP Price: Call Us |
| 7 |
9801 |
NUT-HEX 5/16-18 ZP Price: Call Us |
| 8 |
1900396 |
SCREW-HW M10-32X.5 Not Available Price: |
| 8 |
9768 |
SCR-HH SEMS 10-32 X .5 ZP (EARLY UNITS) Price: $21.33 |
| 9 |
N/A |
ENGINE,B&S 5HP STANDARD RECOIL WITH MAGNETRON MODEL 130292 TYPE 3220-01 |
| 10 |
GW-97075 |
BELT 1/2 x 20.4" FLAT This part replaces 97075. Price: $27.28 |
| 11 |
20881 |
PULLEY-REV DRILL/TAP Not Available Price: |
| 12 |
9561 |
SCR-SS 1/4-20 X .25 (SECURES REVERSE ENGINE PULLEY) Price: Call Us |
| 13 |
9361 |
KEY-WOODRUFF #5 Price: Call Us |
| 14 |
954-04094 |
Forward Clutch Belt This part replaces 1909404. Price: $28.34 |
| 15 |
20765 |
ENGINE PULLEY Not Available Price: |
| 16 |
710-0157 |
HEX SCREW 5/16-24 x .75 This part replaces 9655. Price: $3.90 |
| 17 |
736-04193 |
Washer, 396 x 1140 x 095, B&S This part replaces 9944. Price: $5.94 |
| 18 |
GW-9301 |
Key, 3/16 sq. x 1 This part replaces 9301. Price: $3.46 |
| 19 |
97077 |
SPACER .9 Not Available Price: |
| 20 |
736-04192 |
SHIM - same as above, 1/32" thick This part replaces 1138-2. Price: $5.94 |
| 21 |
20555 |
BELT GUIDE Not Available Price: |
| 22 |
1754128 |
SCR-FLANGE 1/4-20X3/4 GR5 Not Available This part replaces 9573. Price: |
| 23 |
9900 |
WASHER-FLAT 1/4 SAE Price: $61.14 |
| 24 |
731-05290 |
Cover This part replaces 20916. Price: $23.70 |
| 25 |
9848 |
NUT-HFLK 5/16-18 ZP Price: $10.95 |
| 26 |
710-0599 |
SCREW 1/4-20 X.500 This part replaces 9552. Price: $3.86 |
| 27 |
20514 |
GUIDE-BELT REV PNT Price: Call Us |
| 28 |
1900767 |
DECAL-STABIL START Not Available Price: |
| 29 |
GW-20818 |
DECAL-BELT COVER O This part replaces 20818. Price: $26.55 |
