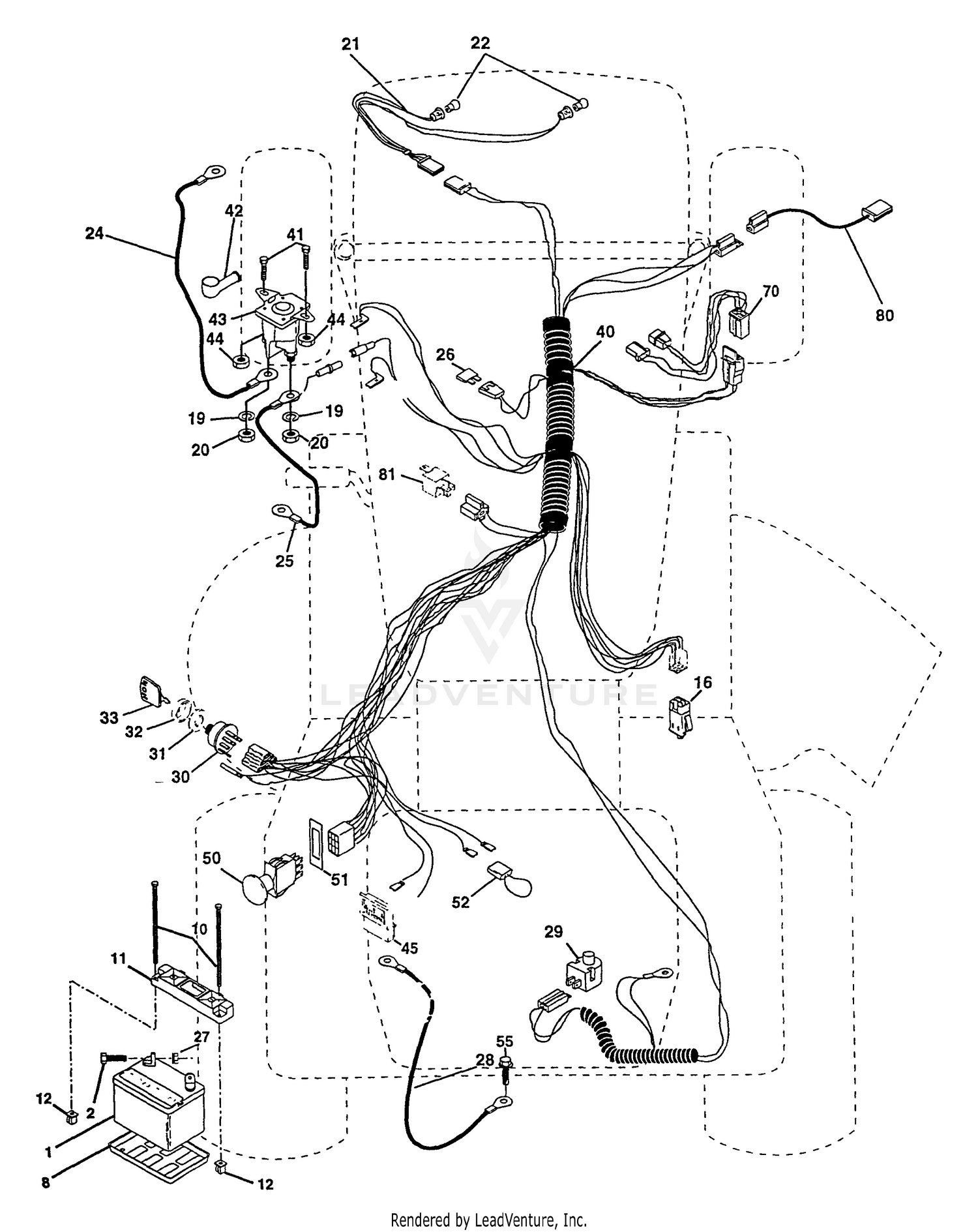

| Ref | Part Number | Description |
|---|
| 1 |
144927 |
Battery 12 Volt 35 AMP (AYP part number) Price: Call Us |
| 1 |
7-3900 |
PAD-BRAKE Price: $27.35 |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 2 |
74760412 |
Bolt Hex Hd 1/4-20 UNC X 3/4 Price: Call Us |
| 3 |
323-6 |
SCREW-HH Price: $0.66 |
| 4 |
21-2850-01 |
MOUNT-PEDAL, RH This part replaces 21-2850. Price: $69.64 |
| 5 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 6 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 7 |
27-9530 |
DISCONTINUED This part replaces 21-2170. Price: Call Us |
| 8 |
33-4350 |
DISCONTINUED This part replaces 22-6380. Price: Call Us |
| 8 |
7603J |
Tray, Battery Price: Call Us |
| 9 |
24-2000 |
DISCONTINUED Price: Call Us |
| 10 |
145211 |
Bolt, BTR FRT 1/4-20 x 7.5 (AYP part number) Price: Call Us |
| 10 |
24-2090 |
STEERING WHEEL CAP Price: $30.55 |
| 11 |
150109 |
Hold Down Battery, Front Price: Call Us |
| 12 |
145769 |
Nut, Push, Nylon (AYP part number) Price: Call Us |
| 12 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 13 |
21-3360 |
DISCONTINUED Price: Call Us |
| 14 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 15 |
21-2780 |
DISCONTINUED Price: Call Us |
| 16 |
153664 |
Switch Interlock Push-In (AYP part number) Price: Call Us |
| 16 |
21-2700 |
DISCONTINUED Price: Call Us |
| 17 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 18 |
23-2240-03 |
PUMP CONTROL TUBE ASM This part replaces 23-2240. Price: $209.72 |
| 19 |
10090400 |
Washer Lock 1/4 (AYP part number) Price: Call Us |
| 19 |
32136-4 |
NUT-HEX,SLOTTED Price: $1.56 |
| 20 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 20 |
73350400 |
Nut Jam Hex 1/4-20 UNC Price: Call Us |
| 21 |
166181 |
Harness Asm Light W/4152j Price: Call Us |
| 21 |
95-1821 |
SPRING-COMPRESSION This part replaces 3-3251. Price: $6.71 |
| 22 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 22 |
4152J |
Bulb Light #1156 Price: Call Us |
| 23 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 24 |
3217-7 |
NUT-HEX Price: $0.28 |
| 24 |
4799J |
Cable Battery 6 Ga 11" red Price: Call Us |
| 25 |
146147 |
Cable Batterywire Price: Call Us |
| 25 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 26 |
283-30 |
PIN-CLEVIS Price: $0.35 |
| 26 |
532166180 |
Fuse 15 AMP Price: $5.99 |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 Unc Price: Call Us |
| 27 |
99-5686 |
RH SOCKET ASM This part replaces 21-0140. Price: $99.81 |
| 28 |
145491 |
Cable Ground Price: Call Us |
| 28 |
3220-5 |
NUT-JAM Price: $0.65 |
| 29 |
108-1380 |
LH BRAKE CABLE ASM This part replaces 21-3380. Price: $162.33 |
| 29 |
160784 |
Switch Plunger Normal OP Olive Price: Call Us |
| 30 |
140301 |
Switch Ign 4 pos w/lights Price: Call Us |
| 30 |
21-2150 |
DISCONTINUED Price: Call Us |
| 31 |
124211X |
Nut Ignition Price: Call Us |
| 31 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 32 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 32 |
141226 |
Cover Sw Ignition Price: Call Us |
| 33 |
122147X |
Key Ign Molded Indak Price: Call Us |
| 33 |
21-3170 |
DISCONTINUED Price: Call Us |
| 34 |
321-2 |
SCREW-HH Price: $2.79 |
| 35 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 36 |
21-2570 |
DISCONTINUED Price: Call Us |
| 37 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 38 |
21-3320 |
DISCONTINUED Price: Call Us |
| 39 |
256-10 |
BUSHING-FLANGE Price: $3.68 |
| 40 |
166150 |
Harness Ign. Price: Call Us |
| 40 |
21-3260 |
DISCONTINUED Price: Call Us |
| 41 |
21-3220 |
DISCONTINUED Price: Call Us |
| 41 |
71110408 |
Bolt Blk Fin Hex 1/4 - 20 x 1/2 Price: Call Us |
| 42 |
131563 |
Cover Terminal Red Price: Call Us |
| 43 |
145673 |
Solenoid (AYP part number) Price: Call Us |
| 44 |
73640400 |
Nut Keps Hex 1/4-20 UNC Price: Call Us |
| 45 |
122822X |
Ammeter Rectangular Price: Call Us |
| 50 |
154959 |
Switch, PTO 3PDT Black Delta 96 Price: Call Us |
| 51 |
140405 |
Ring Retainer PTO Price: Call Us |
| 52 |
141940 |
Protection Wire Loop Price: Call Us |
| 55 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 70 |
166668 |
Harness, Eng. Price: Call Us |
| 80 |
146685 |
Harness, Clutch EVX Price: Call Us |
