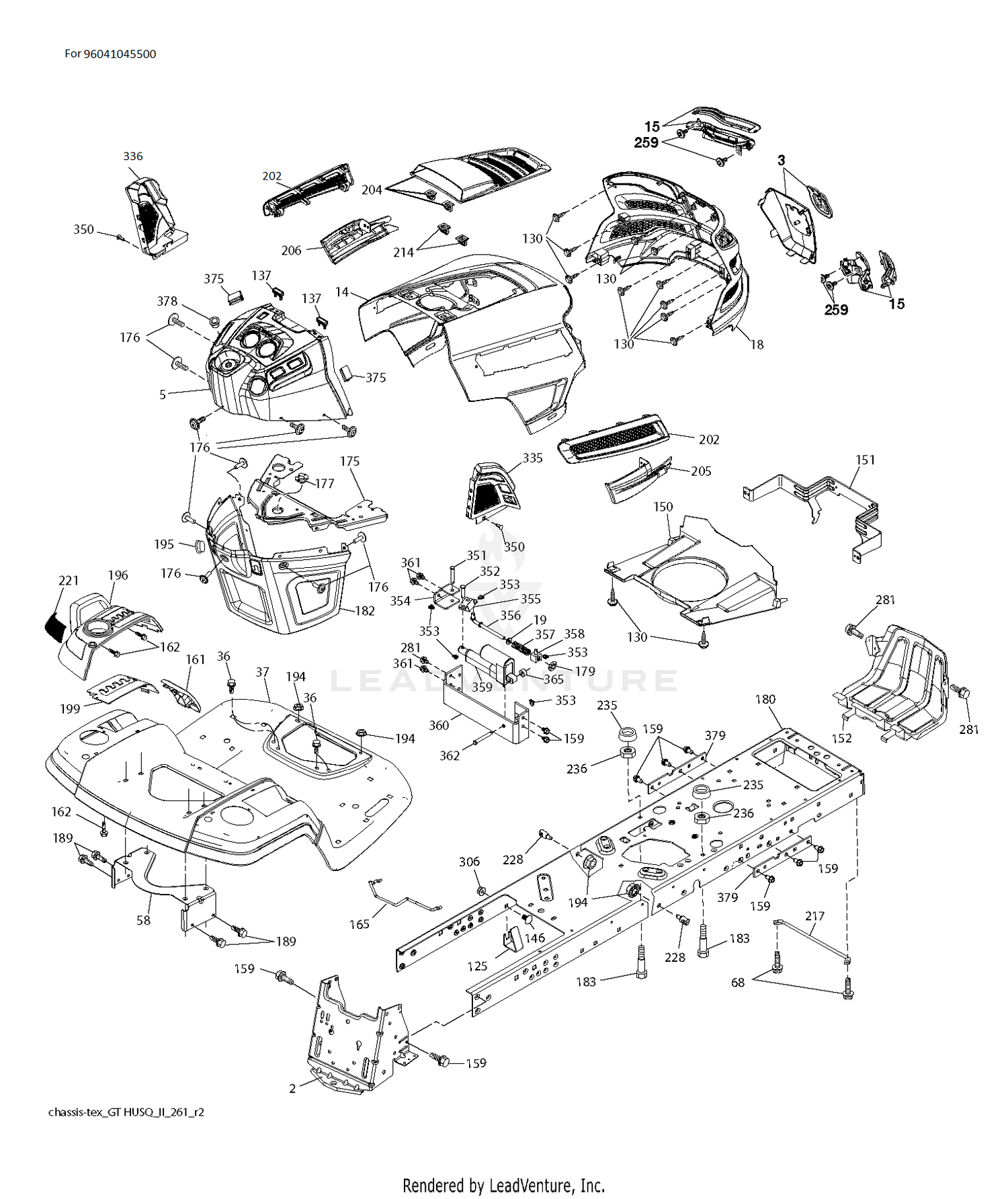

| Ref | Part Number | Description |
|---|
| 2 |
580434401 |
DRAWBAR.STGT Price: $99.99 |
| 3 |
597688201 |
Covers Price: $27.99 |
| 5 |
590748819 |
DASH.UPR.GT2.DUAL.RD.PTO.MC Price: $44.99 |
| 14 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 Price: $74.99 |
| 15 |
597867901 |
Service Kit Price: $44.99 |
| 18 |
597407102 |
Grilles Price: $129.99 |
| 19 |
596133201 |
Washers Price: $5.99 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 37 |
532441208 |
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ Price: $219.99 |
| 58 |
532194314 |
BRKT.SUPPORT.FNDR/TANK Price: $17.99 |
| 68 |
596030701 |
Screws Price: $2.99 |
| 125 |
581684801 |
CLIP.FUEL.LINE Price: $2.99 |
| 130 |
596321701 |
Screws Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 146 |
581857901 |
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 Price: $3.99 |
| 150 |
532439774 |
AIR.DUCT.GTV.BLACK Price: $39.99 |
| 151 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC Price: $37.99 |
| 152 |
532439870 |
SHIELD.BROWNING.PNT.GT.V2 Price: $14.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 162 |
596134101 |
Screws Price: $2.99 |
| 165 |
532194330 |
SUPPORT.TANK.REAR.B/TE Price: $17.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195228 |
BUSHING STEERING Price: $4.99 |
| 179 |
532168937 |
NUT Price: $2.99 |
| 180 |
582033101 |
KITS.TEX.BOLTED.CHASSIS.445559 This part replaces 593346302. Price: $229.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR Price: $84.99 |
| 183 |
595305701 |
Screws Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 194 |
596135701 |
GSPW Nuts Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 196 |
532439716 |
SUBASM.CONSOLE.HUSQ.GT.DECKLFT Price: $69.99 |
| 199 |
532198259 |
PLATE.DECK.LIFT.HUSQVARNA.GT Price: $17.99 |
| 202 |
597867701 |
Vents Price: $32.99 |
| 204 |
597408001 |
Vents Price: $19.99 |
| 205 |
532439730 |
SIDE.TRIM.RH.GT.HUSQ.II Price: $12.99 |
| 206 |
532439729 |
SIDE.TRIM.LH.GT.HUSQ.II.GRAY Price: $14.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 221 |
532198909 |
REFLECTOR.LH.TEX GT HU Price: $14.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION Price: $3.99 |
| 235 |
596564201 |
Spacers Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 259 |
596434001 |
Screws Price: $2.99 |
| 281 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 306 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 335 |
532448204 |
COVER.LOWER.DASH.RH.BLACK Price: $24.99 |
| 336 |
532445309 |
COVER-LH.LOWER.DASH.GT2.BLACK Price: $24.99 |
| 350 |
532445143 |
CLIP.X-MAS.TREE Price: $3.99 |
| 351 |
532421734 |
PIN.CLEVIS.375X2.125 Price: $6.99 |
| 352 |
583598001 |
CLEVIS.375X1.25 Price: $2.99 |
| 353 |
532178062 |
CLIP RETAINER Price: $2.99 |
| 354 |
593196902 |
SUPPORT.DIFF.LOCK.BELLCRANK Price: $5.99 |
| 355 |
583598101 |
BELLCRANK.PIVOT.LOCK.DIFF Price: $27.99 |
| 356 |
583598601 |
LINK.LOCK.DIFF Price: $5.99 |
| 357 |
583598501 |
SPRING.COMPRESSION Price: $4.99 |
| 358 |
599128101 |
SWIVEL.GUIDE Price: $4.99 |
| 359 |
534996001 |
ACTUATOR This part replaces 584393401. Price: $229.99 |
| 360 |
583597501 |
BRACKET ACUATOR Price: $54.99 |
| 361 |
596564002 |
Screws Price: $2.99 |
| 362 |
583597901 |
CLEVIS.375 X 2.42 Price: $3.99 |
| 365 |
583590601 |
NYLN.SPCR.375 X .75 X .4375.L Price: $2.99 |
| 375 |
586908201 |
BUMPER CLIP-ON. DASH 1" Price: $3.99 |
| 378 |
590849801 |
BUSHING FLANGE; PLASTIC Price: $3.99 |
| 379 |
593206902 |
CHASSIS.PLATE.REINFORCEMNT.431 Price: $4.99 |
