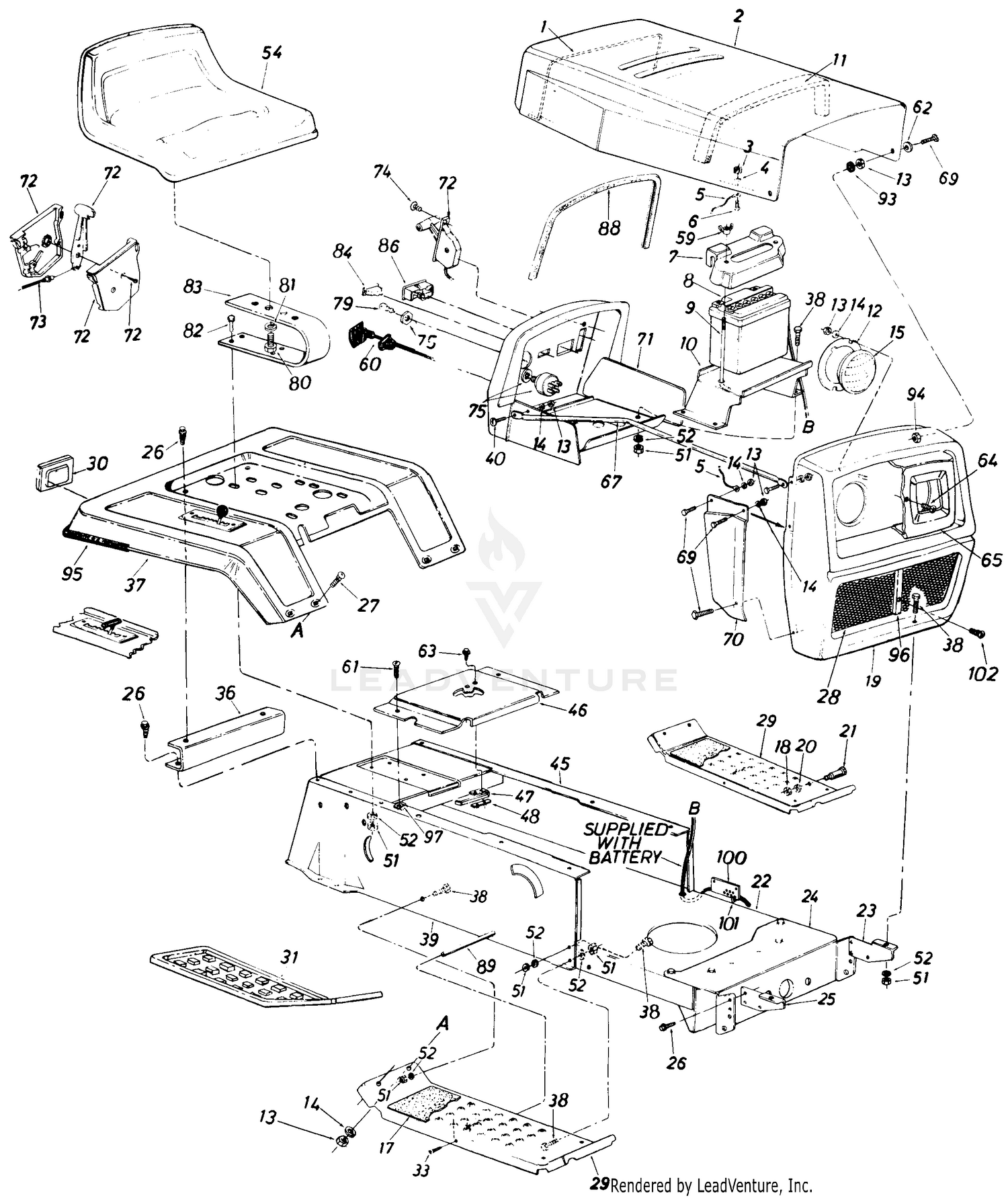

Parts02

Parts02

Parts (71)

RefPart NumberDescription
1 732-0477 SPRING-HOOD Not Available Price:
2 16207 Hood Price: Call Us
3 712-0272 Hex Sems Nut #10-24 Thd.* Price: $3.58
4 926-0154 Push Mount Cable Tie This part replaces 726-0154. Price: $5.50
5 723-0302 Hood Stop 7" Lg. Price: $11.12
6 710-0473 Truss Hd. Scr. #10-24 x '/2"* Price: $3.90
7 731-0707 BATERY COVER Not Available Price:
8 725-0453 BATTERY Not Available Price:
9 911-0222A HOLD DOWN BATTERY ROD Not Available This part replaces 711-0222. Price:
10 12747 BATTERY BRACKET Not Available Price:
11 722-0138 PVC FOAM Not Available Price:
12 09960 RING HOLDE Not Available Price:
13 912-0287 HEX NUT 1/4-20 Not Available This part replaces 7120287. Price:
14 936-0329 L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90
15 925-0222 Head Light This part replaces 725-0222. Price: $51.68
18 712-0798 Hex Nut 3/8-16 Thd.* Price: $3.86
19 14781 GRILLE Not Available Price:
20 736-0169 L-Wash. 3/8" I.D.* Price: $3.33
21 738-0145 Shld. Bolt .50" Dia. x .84 Price: $6.01
22 14606 Lower Frame Price: Call Us
23 13863 BRACKET-GR Not Available Price:
24 14619 Front Pivot Brkt. Price: Call Us
25 13862 BRACKET-GR Not Available Price:
26 710-0726 Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. Price: $3.82
27 710-0495 CARR. BOLT 1/4-20 x 1.75" LG. Not Available Price:
28 N/A UNKNOWN
33 710-0323 Truss Mach. Scr. 5/16-18 x .75" Lg.* Price: $4.02
36 15848 Fender Mount Brace Price: Call Us
37 16221 Fender Price: Call Us
38 710-0118 Hex Bolt 5/16-18 x .75" Lg.* Price: $3.76
39 14602G-0637 FRAME-SIDE (RH) Not Available This part replaces 14602. Price:
40 710-0258 Hex Bolt 1/4-20 x .62" Lg.* Price: $3.63
45 14603 L.H. SIDE FRAME Not Available Price:
46 16433 Shift Cover Price: Call Us
47 725-0759 SAFETY SWITCH KIT Not Available Price:
48 926-0320 Insulatop Nut Plate This part replaces 726-0222. Price: $6.01
51 712-3010 HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89
52 936-0119 Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29
54 757-0309 Seat Ass'y. Price: Call Us
59 912-0113 Wing Nut 1/4-20 Thd. This part replaces 712-0113. Price: $6.01
60 946-0613A Choke Control 44.0" Lg. This part replaces 746-0613. Price: $25.62
61 710-0351 Truss Mach. Tap Scr. #10 x .50" Lg. Price: $3.90
62 736-0173 Fl-Wash. .281 I.D. x .73 O.D. Price: $3.76
63 710-0227 Hex Wash. Hd. AB-Tap Scr. #8 x .50 Price: $3.90
64 710-0148 Truss Hd. Scr. #10-24 x .38" Lg. Price: $3.90
65 731-0465 BEZEL-HEADLAMP Not Available Price:
67 749-0673 GRILLE SUPPORT ROD L.H Not Available Price:
69 710-0924 Truss Mach. Scr. 1/4-20 x.75" Lg. This part replaces 710-0255. Price: $4.02
70 14748 R.H.-Grille Side Panel Price: Call Us
71 16184 Dash Panel Ass'y. Price: Call Us
72 831-0823A Throttle Control Box Ass'y. This part replaces 831-0823. Price: $30.59
73 946-0634 Throttle Wire This part replaces 746-0634. Price: $10.24
74 710-0779A Truss Mach. AB-Tap Scr. #10 x .5" Lg. This part replaces 710-0779. Price: $3.85
75 925-0267B Ignition Switch This part replaces 725-0267. Price: $33.31
79 925-0201 Key This part replaces 725-0201. Price: $8.70
80 710-0865 HEX SCREW 1/2-13X1.00 Not Available Price:
81 736-0921 L-Wash. 1/2" I.D. Price: $3.90
82 710-0376 Hex Bolt 5/16-18 x 1.00" Lg.* Price: $3.66
83 732-0458 SEAT SPRING Not Available Price:
84 725-1130 HEADLAMP SWITCH Not Available Price:
86 925-0925 Ammeter Not Available This part replaces 725-0925. Price:
88 731-0511 Molding Strip 27" Lg. Price: $3.29
89 738-0526 ROD-RUNNING BOARD Not Available Price:
93 735-0144 RUBBER WASHER Not Available Price:
94 712-0324 Hex Sems Ins. L-Nut 1/4-20 Thd. Price: $3.38
95 731-0511 Trim Strip 31.0" Lg. Price: $3.29
96 723-0347 Center Moulding Price: Call Us
97 726-0139 Speed Nut #10Z Price: $5.94
100 16371 Brake Cable Bracket Price: Call Us
101 726-0197 Cable Tie Price: $3.22
14749 L.H.-Grille Side Panel Price: Call Us 14749
