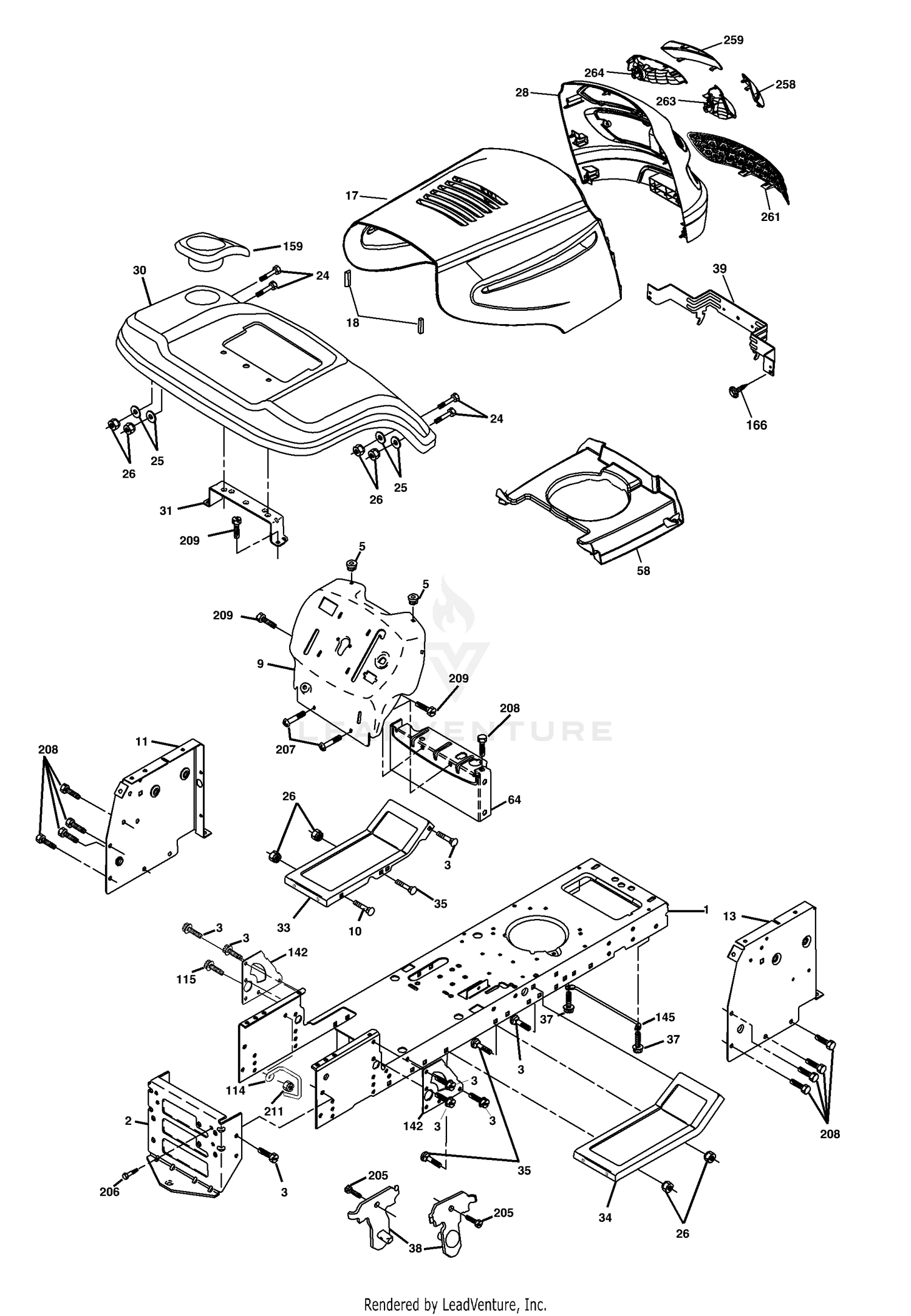

| Ref | Part Number | Description |
|---|
| 1 |
117-8982 |
TANK-HYDRAULIC This part replaces 104-9254. Price: $1,846.02 |
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar Price: Call Us |
| 2 |
99-2580 |
COVER-TANK Price: $103.21 |
| 3 |
17060612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 3 |
61-2790 |
FILTER-SCREEN Price: $49.91 |
| 4 |
75-3710 |
DIPSTICK Price: $57.35 |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 5 |
93-7499 |
GASKET Price: $5.91 |
| 6 |
93-7498 |
PLUG-PLASTIC Price: $25.26 |
| 7 |
94-8166 |
O-RING Price: $3.76 |
| 8 |
92-8020 |
ADAPTER-BREATHER Price: $10.50 |
| 9 |
104-3795 |
FITTING-TEE Price: $142.37 |
| 9 |
168337X012 |
Dash Price: Call Us |
| 10 |
68-6150 |
BREATHER Price: $27.22 |
| 10 |
72140608 |
Bolt Rd Hd Sqnk. 3/8-16 Unc x 1 Price: Call Us |
| 11 |
174996 |
Panel Asm. Dash Lh Price: Call Us |
| 11 |
2412-111 |
CLAMP Price: $4.39 |
| 12 |
104-3790 |
PUMP RETURN HOSE ASM Price: $418.45 |
| 13 |
104-3792 |
HOSE-SUCTION Price: $102.45 |
| 13 |
175255 |
Panel Dash Rh Price: Call Us |
| 15 |
105-0131 |
STRAINER-TANK, OIL Price: $178.94 |
| 16 |
33105-025 |
SCREW-HHF Price: $1.56 |
| 17 |
183393X428 |
Hood Price: Call Us |
| 17 |
63-8410 |
WASHER Price: $1.76 |
| 18 |
126938X |
Bumper Hood Price: Call Us |
| 18 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 19 |
340-98 |
FITTING-ELBOW, 90 DEG Price: $31.91 |
| 20 |
92-7478 |
RH MOTOR TUBE ASM Price: $70.95 |
| 21 |
33104-020 |
SCREW-HHF Price: $2.07 |
| 22 |
353-508 |
PLUG-HH Price: $7.96 |
| 23 |
104-3748 |
HYD TANK TUBE ASM Price: $181.22 |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex w/Insert 3/8-16 Unc Price: Call Us |
| 30 |
169470X428 |
Fender Asm Price: Call Us |
| 31 |
136619 |
Bracket Fender Price: Call Us |
| 33 |
179716X428 |
Footrest LH Price: Call Us |
| 34 |
179717X428 |
Footrest RH Price: Call Us |
| 35 |
72110606 |
Bolt Rd Hd Sht. Sqnk. 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 Tyt Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Rear Price: Call Us |
| 39 |
174714 |
Bracket Pivot Price: Call Us |
| 58 |
184322 |
Air Duct Price: Call Us |
| 64 |
154798 |
Dash Lower Price: Call Us |
| 114 |
158112 |
Keeper Belt Rear LH Price: Call Us |
| 115 |
17490620 |
Screw Thdrol 3/8-16 x 1-1/4 Price: Call Us |
| 142 |
175702 |
Plate Reinforcement Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 159 |
169473X428 |
Cupholder Price: Call Us |
| 166 |
171875 |
Screw #13-16 x 3/4 Price: Call Us |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 206 |
170165 |
Bolt shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 211 |
145212 |
Nut Hex flange Lock Price: Call Us |
| 258 |
183835X599 |
Lens Grille RH Price: Call Us |
| 259 |
183834X599 |
Lens Grille LH Price: Call Us |
| 261 |
183829X428 |
Insert Grille Price: Call Us |
| 263 |
183832 |
Bezel Grille LH Price: Call Us |
| 264 |
183833 |
Bezel Grille RH Price: Call Us |
