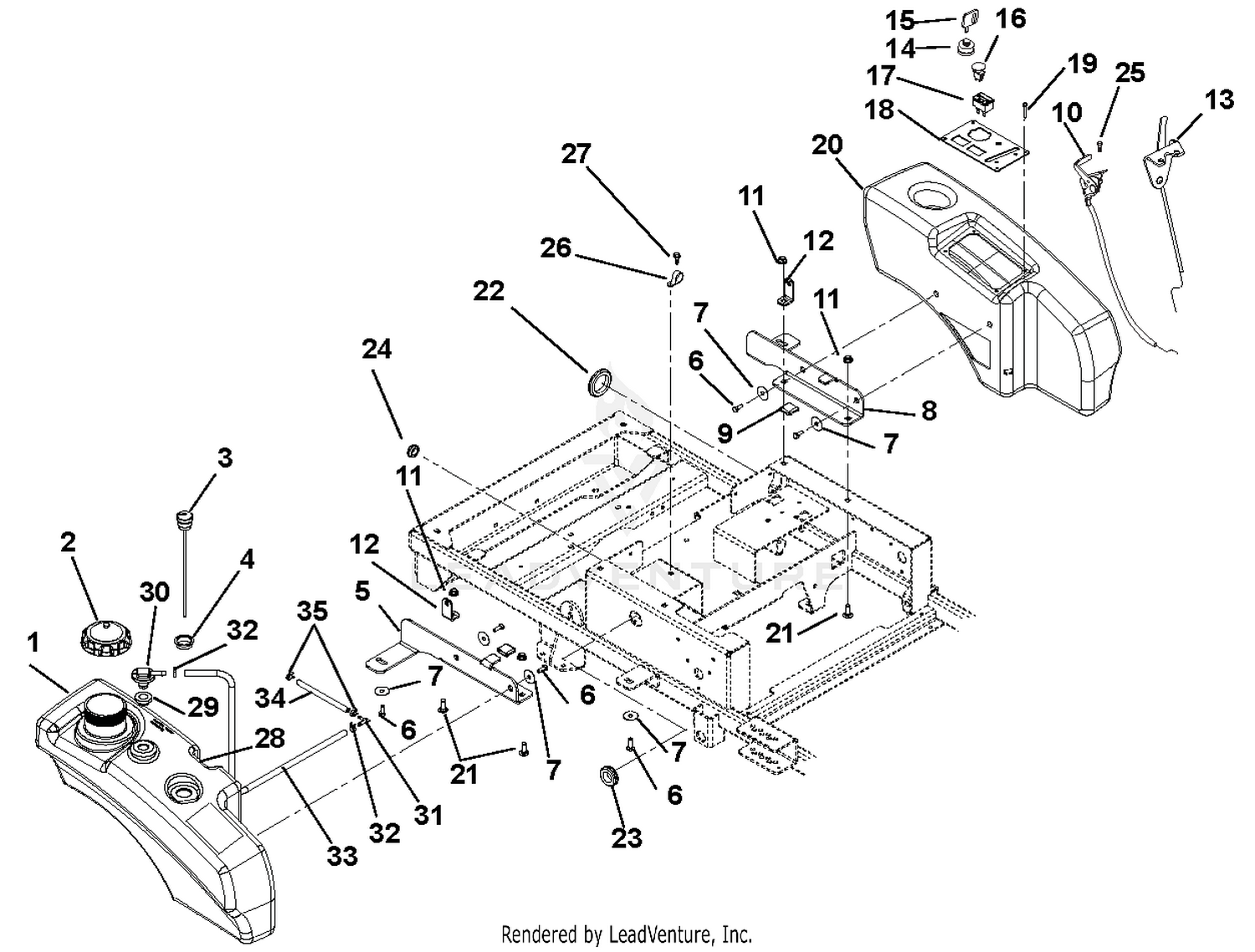

| Ref | Part Number | Description |
|---|
| 2 |
09190300 |
CAP, FUEL - 3.50 RATCHET INLET VENT This part replaces 04237300. Price: $30.95 |
| 3 |
07500538 |
GUAGE-REMOTE SEALED FUEL-10.0" This part replaces 07500029. Price: $37.95 |
| 4 |
07500034 |
GROMMET, FUEL GAGE Price: $5.95 |
| 5 |
02973351 |
BRKT, RH REAR TANK MOUNT Price: $30.95 |
| 6 |
07049500 |
BLT-SERHFWH .312-18X.50 YWZC Price: $2.45 |
| 7 |
06401105 |
WSHR, FLT .347X1.254X.048 ZCC This part replaces 06446900. Price: $2.45 |
| 8 |
02973451 |
BRKT, LH REAR TANK MOUNT Price: $30.95 |
| 9 |
07500037 |
GRIP, RUBBER (1.0X1.0X.187)BLK Price: $3.10 |
| 10 |
06900423 |
CABLE, XL THROTTLE Price: $37.45 |
| 11 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 12 |
03200051 |
BRKT, HOOD PIVOT Price: $28.95 |
| 13 |
06900424 |
CABLE, XL CHOKE Price: $37.45 |
| 14 |
01588300 |
KEY SWITCH Price: $28.95 |
| 15 |
02460700 |
KEY -W/CAP Price: $9.45 |
| 16 |
01545600 |
SWITCH, CLUTCH Price: $23.95 |
| 17 |
09497400 |
HOUR METER This part replaces 00456600. Price: $22.45 |
| 18 |
03887051 |
CONTROL PANEL Price: $24.95 |
| 19 |
07400106 |
SCR-HEX .25X14-.75 Price: $2.45 |
| 20 |
02967400 |
FENDER, XL Price: $134.45 |
| 21 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45 |
| 22 |
07500017 |
GROMMET 1.70ID X 2.0OD Price: $4.95 |
| 23 |
07506500 |
GROMMET 1.0ID X 1.38 OD Price: $3.45 |
| 24 |
07500031 |
GROMMET,RUBBER 5/8 ID/1.13 OD Price: $3.45 |
| 25 |
07400130 |
SCR,TAP #10-24X.50 HWH TR ZCC This part replaces 07415800. Price: $1.95 |
| 26 |
06900036 |
CLAMP, CUSHIONED STEEL .75 Price: $5.45 |
| 27 |
07400126 |
SCR,TAP .375-16X.50 HWH TR ZCC This part replaces 07412900. Price: $1.45 |
| 29 |
04082700 |
GROMMET, REMOTE VENT NITRILE Price: $3.45 |
| 31 |
04097000 |
FITTING-3/16X1/4 90DEGREE VAC Price: $13.45 |
| 32 |
03278800 |
CLAMP, FUEL LINE Price: $0.95 |
| 34 |
03375900 |
HOSE, .188 LOW-PERM BULK GAS Price: $0.95 |
