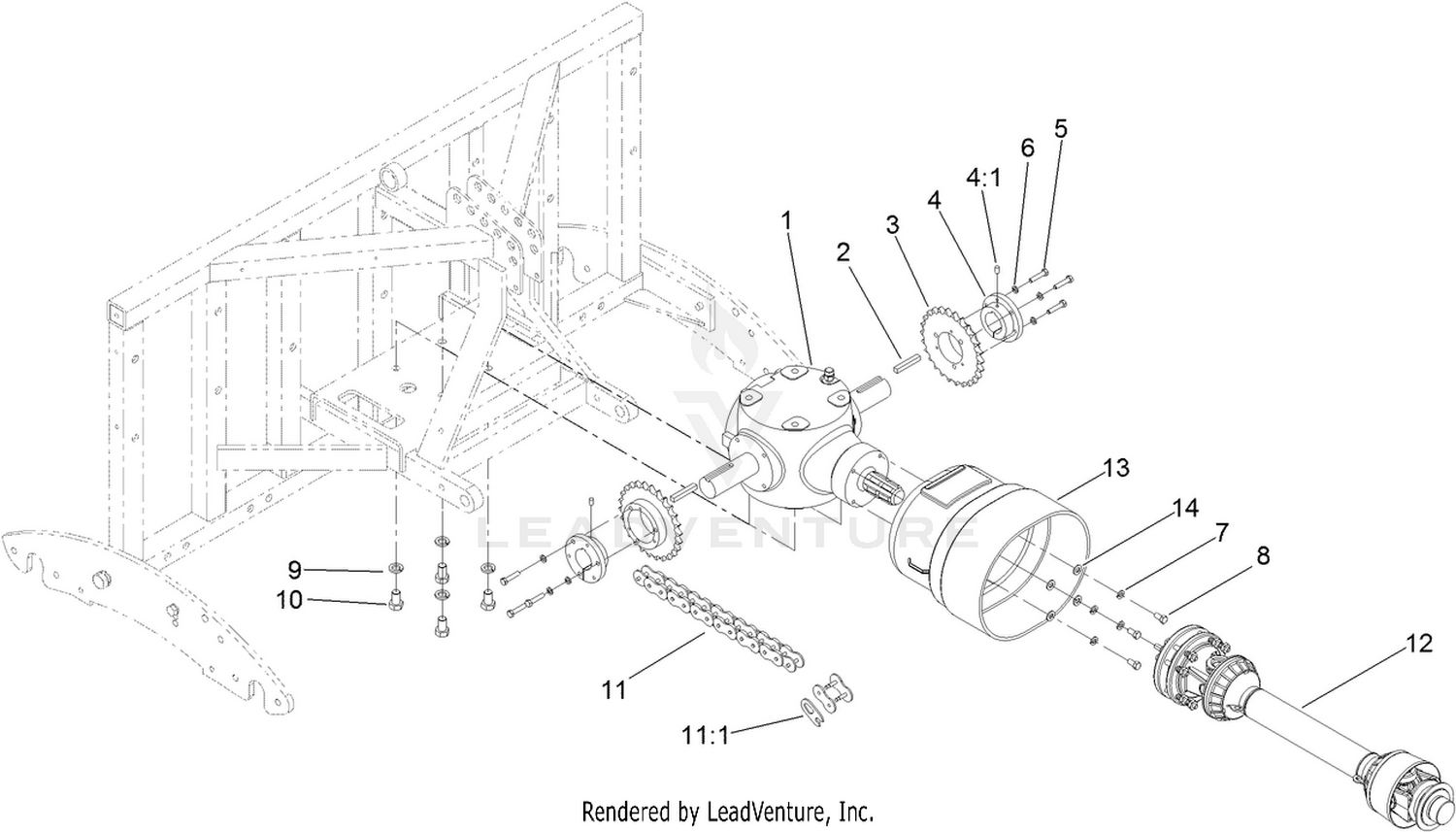

Drive Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | SG507000-03 | GEARBOX Price: $6,206.73 |
| 2 | 80-6140 | KEY-SQUARE Price: $6.89 |
| 3 | SG517026 | GEARBOX-SPROCKET Price: $151.53 |
| 4 | SG527054 | SPROCKET-HUB Price: $70.08 |
| 5 | 5-1470 | SCREW-HH Price: $0.61 |
| 6 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 7 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 8 | 323-4 | SCREW-HH Price: $1.02 |
| 9 | 3253-8 | WASHER-LOCK Price: $0.47 |
| 10 | 327-3 | SCREW-HH Price: $1.49 |
| 11 | SG580154 | CHAIN-O-RING Price: $530.50 |
| 12 | 137-7322 | SHAFT-PTO Price: $1,754.10 |
| 13 | SG4170401 | CONE-SHAFT Price: $92.57 |
