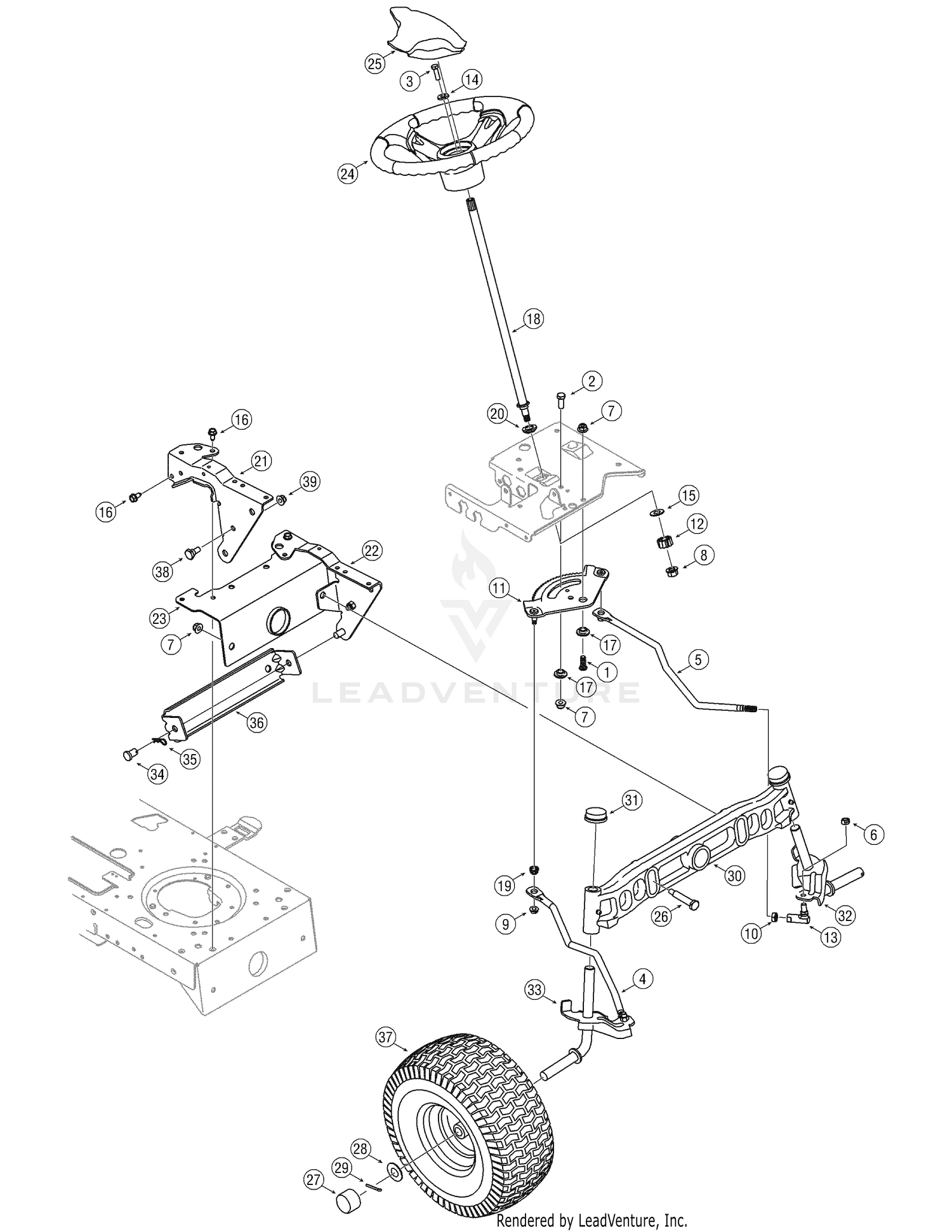

| Ref | Part Number | Description |
|---|
| 1 |
710-04095 |
Hex Screw, 3/8-16, 1.00, Gr5 Price: $4.39 |
| 2 |
710-0514 |
Hex Screw, 3/8-16, 1.00, Gr5 Price: $3.78 |
| 3 |
710-0643 |
Hex Screw, 5/16-18, 1.00, Gr5 Price: $5.99 |
| 4 |
711-1408 |
DRAG LINK (RH) Not Available Price: |
| 5 |
711-1409A |
DRAG LINK (LH) Not Available Price: |
| 6 |
712-0214 |
Nut, Hex Lock, 3/8-24 Price: $5.94 |
| 7 |
712-04065 |
Nut, Flange Lock, 3/8-16 Price: $3.68 |
| 8 |
712-0459 |
Nut, Flange Lock, 7/16-20 Price: $4.39 |
| 9 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 10 |
912-0240 |
Nut, Jam, 7/16-20, Gr2 This part replaces 712-0240. Price: $3.90 |
| 11 |
717-1550F |
Steering Gear This part replaces 717-1550E. Price: $61.81 |
| 12 |
717-1554 |
Gear, Pinion, Steering Price: $9.44 |
| 13 |
923-0448A |
Ball Joint, 7/16-20, Lock This part replaces 723-0448A. Price: $22.55 |
| 14 |
736-3004 |
Washer, Flat,.406 x.875 x.105 Price: $4.08 |
| 15 |
736-3084 |
Washer, Flat,.51 x 1.12 x.06 Price: $4.39 |
| 16 |
710-1260A |
Screw, 5/16-18, 0.750 Price: $3.34 |
| 17 |
738-04154 |
Spacer, Shoulder,.38 x 1.00 x.31 Price: $5.08 |
| 18 |
738-1001A |
Shaft, Steering, .625 OD x 24.25 Not Available Price: |
| 19 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 20 |
941-0656A |
BRG:HEX FLNG 5/8 This part replaces 741-0656A. Price: $4.69 |
| 21 |
783-0726E |
PIVOT SUPPORT BRACKET (RH) Not Available Price: |
| 22 |
783-0727D |
PIVOT SUPPORT BRACKET (LH) Not Available Price: |
| 23 |
783-0728B |
PIVOT BAR BRACKET Not Available Price: |
| 24 |
631-04008B |
Steering Wheel Assembly This part replaces 631-04008. Price: $87.97 |
| 25 |
731-04066A |
Steering Wheel Cover Price: $15.80 |
| 26 |
738-1011A |
Shoulder Screw,.5 x 2.2, 3/8-16 Price: $7.65 |
| 27 |
731-05674 |
Cap Price: $4.40 |
| 28 |
736-04228B |
FLAT WASHER .781 ID x1.590 OD This part replaces 736-04228. Price: $4.59 |
| 29 |
714-0162 |
COTTER PIN-5/32 DIA This part replaces 714-04039. Price: $4.29 |
| 30 |
919-04177E |
CAST PIVOT BAR AXLE This part replaces 719-04105. Price: $218.49 |
| 31 |
726-0341 |
Push Cap Price: $4.26 |
| 32 |
638-04003AP |
AXLE ASSEMBLY (.750) (LH) Not Available This part replaces 638-04003A. Price: |
| 33 |
938-04004A |
AXLE ASSEMBLY (RH) .750DIA This part replaces 638-04004A. Price: $66.15 |
| 34 |
911-0332 |
Clevis Pin, .50" Dia. This part replaces 711-0332. Price: $14.98 |
| 35 |
714-04023 |
Cotter Pin, Int., .080 x 1.5625 Price: $3.90 |
| 36 |
783-0720C |
Bracket, Front Deck Rod This part replaces 783-0720A. Price: $34.13 |
| 37 |
634-04088A |
WHEEL ASSEMBLY (16 x 6.5 x 8) Not Available This part replaces 634-04088A-0911. Price: |
| 37 |
734-04148-0901 |
Tire Only 16 x 7.5 x 8 Not Available Price: |
| 38 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
