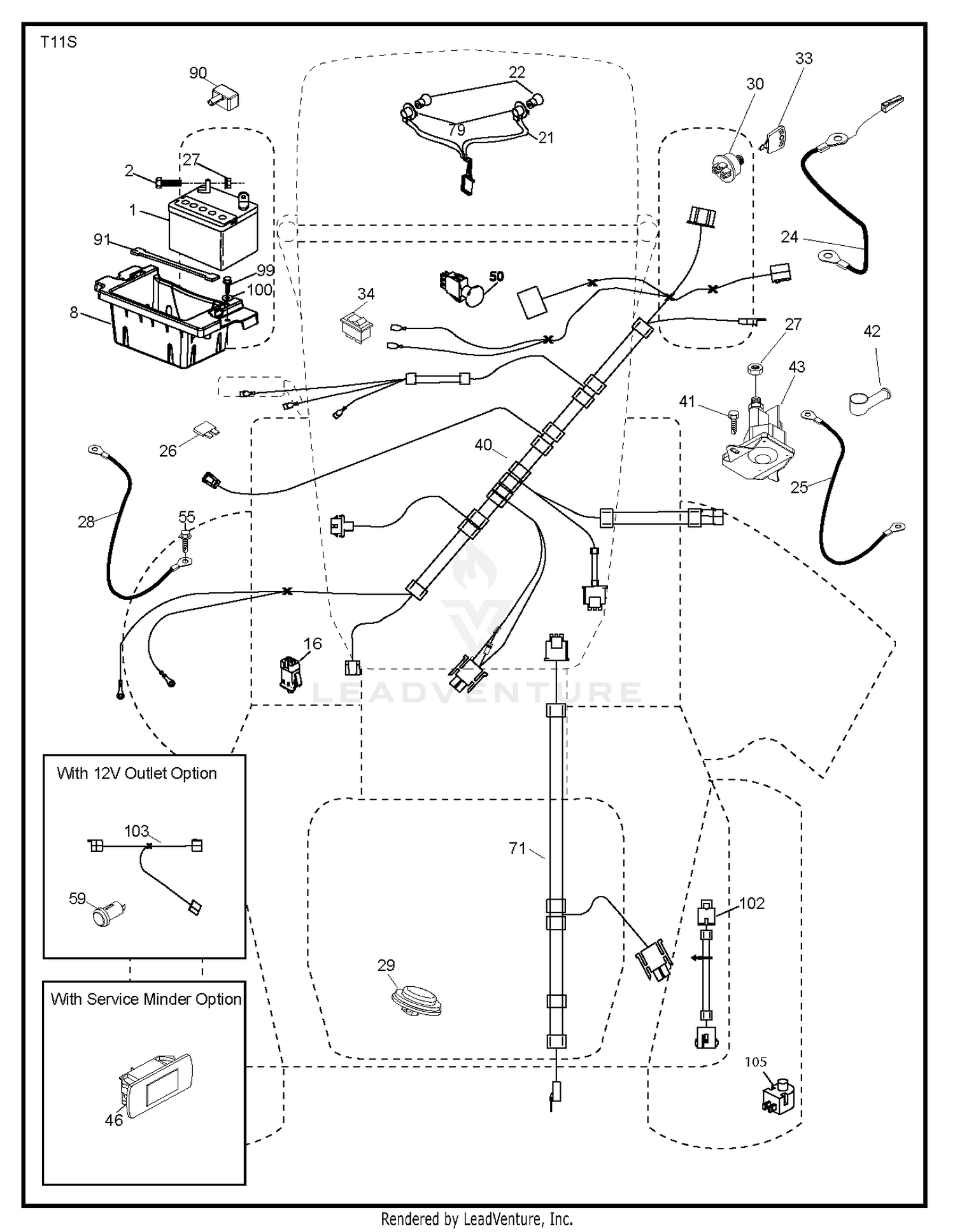

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $138.99 |
| 1 |
98-1880-03 |
KNUCKLE-PIVOT Price: $350.23 |
| 2 |
874760412 |
BOLT LT Price: $3.99 |
| 2 |
99-5610 |
PIN Price: $40.16 |
| 3 |
340-82 |
FITTING-ELBOW, 90 DEG Price: $20.57 |
| 4 |
340-1 |
FITTING-STRAIGHT Price: $10.19 |
| 5 |
104-9250 |
CONTROL-FLOW Price: $404.51 |
| 6 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 7 |
94-9974 |
RING-RETAINING Price: $0.70 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $11.99 |
| 9 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 10 |
138-6952 |
CYLINDER ASM-HYDRAULIC This part replaces 99-2550. Price: $664.52 |
| 11 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 12 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 13 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 14 |
321-4 |
SCREW-HH Price: $0.99 |
| 15 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 16 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $11.99 |
| 17 |
92-7548 |
PIN-CYLINDER Price: $16.62 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 21 |
82-6840 |
SPACER Price: $3.31 |
| 22 |
322-7 |
SCREW-HH Price: $0.89 |
| 22 |
532004152 |
LIGHTBULB Price: $2.99 |
| 23 |
99-2560 |
PIN Price: $105.63 |
| 24 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 24 |
532400253 |
CABLE.BATT.POS.WIRE.TG.DA SOL Price: $7.99 |
| 25 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 25 |
532412895 |
CABLE.STARTER.6G.BL/RED.17.5 Price: $10.99 |
| 26 |
105-3363 |
NO. 3 LIFT ARM ASM Price: $989.43 |
| 26 |
532175158 |
FUSE 20AMP Price: $3.99 |
| 27 |
105-3362 |
NO. 2 LIFT ARM ASM Price: $989.43 |
| 27 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 28 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $24.99 |
| 29 |
99-5608-03 |
SPRING-TORSION, RH This part replaces 99-5608. Price: $35.46 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $9.99 |
| 30 |
99-5609-03 |
SPRING-TORSION, LH This part replaces 99-5609. Price: $35.46 |
| 31 |
67-6570 |
SPACER-WHEEL Price: $15.99 |
| 32 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 33 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $6.99 |
| 34 |
532110712 |
SWITCH LT Price: $4.99 |
| 34 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 35 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 36 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 37 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 38 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 39 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 40 |
105-7919 |
HYD HOSE ASM Price: $98.24 |
| 40 |
532401098 |
HARNESS IGN. DASH Price: $68.99 |
| 41 |
105-7918 |
HYD HOSE ASM Price: $76.92 |
| 41 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 817720408. Price: $1.99 |
| 42 |
105-7917 |
HYD HOSE ASM Price: $85.55 |
| 42 |
532154336 |
Cover, Terminal Red This part replaces 532131563. Price: $4.99 |
| 43 |
532192507 |
SOLENOID.W/BRASS.PLUNG Price: $16.99 |
| 45 |
532422943 |
Price: Call Us |
| 46 |
532401763 |
GUAGE.SRVCMNDR.HRMTR. Price: $48.32 |
| 50 |
532174651 |
PTO SWITCH Price: $22.99 |
| 55 |
532171877 |
Bolt 5/16-18 unc x 3/4 This part replaces 817060512. Price: $3.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $24.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $11.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $2.99 |
| 91 |
532190270 |
STRAP, BATTERY MOUNT Price: $5.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
| 100 |
819091416 |
WASHER Price: $3.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
