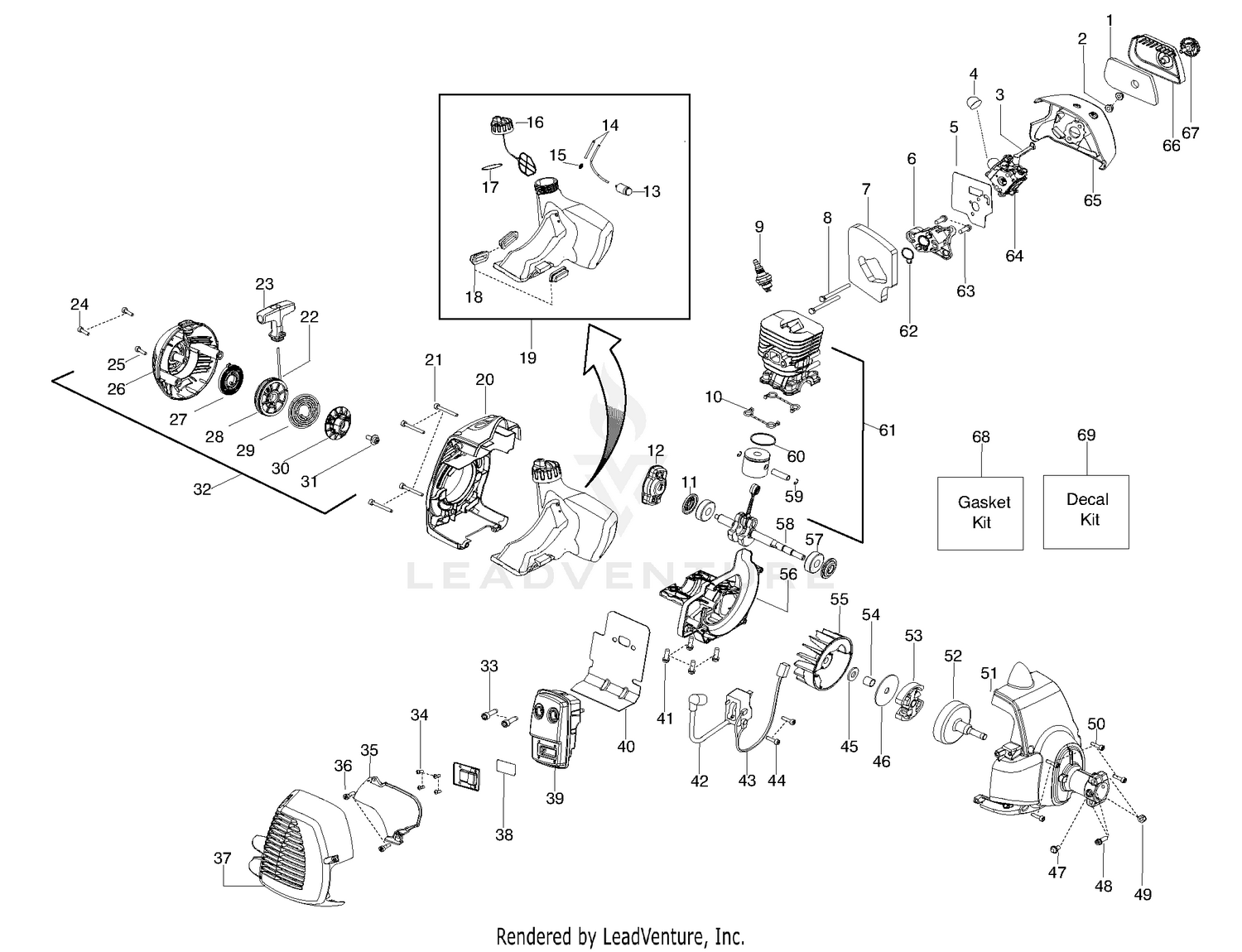

| Ref | Part Number | Description |
|---|
| 1 |
530150253 |
FILTER AIRBOX Price: $2.99 |
| 1 |
98-9462 |
ELEMENT-PUMP Price: $282.73 |
| 2 |
530016101 |
NUT Price: $4.99 |
| 2 |
98-9423 |
O-RING Price: $6.07 |
| 3 |
530057844 |
CHOKE LEVER Price: $5.99 |
| 3 |
98-9443 |
PIN-JOINT Price: $13.13 |
| 4 |
530058709 |
PURGE BULB ZAMA Price: $6.99 |
| 4 |
98-9434 |
FLANGE-SLEEVE Price: $17.25 |
| 5 |
98-9421 |
VALVE-DELIVERY Price: $116.98 |
| 6 |
530035596 |
CARB ADAPTOR Price: $7.99 |
| 6 |
98-9424 |
SPRING-VALVE, DELIVERY Price: $21.66 |
| 7 |
545008084 |
KIT GASKET 28CC Price: $17.99 |
| 7 |
98-9425 |
GASKET-VALVE, DELIVERY Price: $10.58 |
| 8 |
530016400 |
BOLT CARB ADAPTOR Price: $3.99 |
| 8 |
98-9447 |
O-RING Price: $18.23 |
| 9 |
530030179 |
PLUG SPARK (RCJ6-Y) This part replaces 952030249. Price: $3.99 |
| 9 |
98-9652 |
HOLDER-VALVE, DELIVERY Price: $111.74 |
| 10 |
545008084 |
KIT GASKET 28CC Price: $17.99 |
| 10 |
98-9452 |
SCREW Price: $7.23 |
| 11 |
545008084 |
KIT GASKET 28CC Price: $17.99 |
| 11 |
98-9422 |
TAPPET ASM Price: $275.51 |
| 12 |
503873305 |
STARTER PAWL BRIDGE Price: $22.99 |
| 12 |
98-9433 |
SHIM Price: $2.13 |
| 13 |
530095646 |
FUEL PICK-UP ASSY Price: $5.99 |
| 13 |
98-9429 |
SEAT-SPRING, LOWER Price: $50.60 |
| 14 |
98-9428 |
SPRING-PLUNGER Price: $32.36 |
| 15 |
530023877 |
FUEL LINE FITTING Price: $4.99 |
| 15 |
98-9427 |
SEAT-SPRING, UPPER Price: $16.02 |
| 16 |
98-9432 |
SLEEVE-CONTROL Price: $107.77 |
| 17 |
545008084 |
KIT GASKET 28CC Price: $17.99 |
| 17 |
98-9466 |
PLUG Price: $12.54 |
| 18 |
530059780 |
ISOLATOR FUEL TANK Price: $4.99 |
| 18 |
98-9451 |
GASKET Price: $1.92 |
| 19 |
98-9445 |
GASKET Price: $1.84 |
| 20 |
98-9464 |
BOLT-JOINT Price: $20.48 |
| 21 |
530016448 |
SCREW Price: $2.99 |
| 21 |
98-9446 |
GASKET Price: $2.50 |
| 22 |
545008079 |
KIT ROPE Price: $9.99 |
| 22 |
98-9430 |
SCREW Price: $19.45 |
| 23 |
98-9643 |
INJECTION PUMP ASM This part replaces 98-9463. Price: $2,551.99 |
| 24 |
530016426 |
SCREW M5-0.8X30MM Price: $4.99 |
| 24 |
98-9465 |
PLATE Price: $9.73 |
| 25 |
98-9442 |
SCREW Price: $26.58 |
| 26 |
98-9426 |
PIN-GUIDE, TAPPET Price: $7.65 |
| 27 |
545008087 |
KIT STARTER SPRING Price: $7.99 |
| 28 |
585530301 |
KIT PULLEY/SPRING This part replaces 545008078. Price: $9.99 |
| 29 |
544038802 |
SPRING - DRIVER Price: $5.99 |
| 30 |
579366201 |
PULLEY STARTER DRIVE This part replaces 544038702. Price: $5.99 |
| 31 |
530016468 |
SCREW Price: $2.99 |
| 33 |
530058982 |
BOLT MUFFLER Price: $2.99 |
| 34 |
545227101 |
SCREW 6-19X.437 This part replaces 530015241. Price: $2.99 |
| 36 |
530016449 |
SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 40 |
545008084 |
KIT GASKET 28CC Price: $17.99 |
| 41 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $2.99 |
| 42 |
545046701 |
IGNITION MODULE MBU-7 This part replaces 530039224. Price: $49.99 |
| 43 |
530039227 |
ASSY MODULE LEAD WIRE Price: $6.99 |
| 44 |
530016456 |
SCREW M4 X .70 TT 16MM Price: $2.99 |
| 45 |
530016463 |
WASHER CLUTCH Price: $5.99 |
| 46 |
530094189 |
WASHER-CLUTCH Price: $5.99 |
| 49 |
530015768 |
LOCKNUT-HEX 10-24 Price: $3.99 |
| 50 |
530016456 |
SCREW M4 X .70 TT 16MM Price: $2.99 |
| 52 |
587126401 |
ASSY CLUTCH DRUM This part replaces 530150039. Price: $24.99 |
| 53 |
545064401 |
ASSY CLUTCH Price: $11.99 |
| 54 |
530057852 |
SPACER FLYWHEEL Price: $8.99 |
| 55 |
530039242 |
FLYWHEEL Price: $29.99 |
| 56 |
577929502 |
CRANKCASE CAST 128 This part replaces 545195601. Price: $34.99 |
| 57 |
545013401 |
BEARING RADIAL BALL (6201) Price: $5.99 |
| 58 |
585415401 |
CRANKSHAFT This part replaces 545195202. Price: $44.99 |
| 59 |
530015162 |
WRIST PIN RET. Price: $2.99 |
| 60 |
575227901 |
RING PISTON This part replaces 530019283. Price: $5.99 |
| 62 |
545008084 |
KIT GASKET 28CC Price: $17.99 |
| 63 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $2.99 |
| 65 |
576459001 |
AIRBOX HVA 128 HUSKY GRAY This part replaces 545084601. Price: $6.99 |
| 66 |
530057846 |
COVER-AIR BOX Price: $7.99 |
| 67 |
530059796 |
KNOB ASSY AIRBOX COVER Price: $4.99 |
