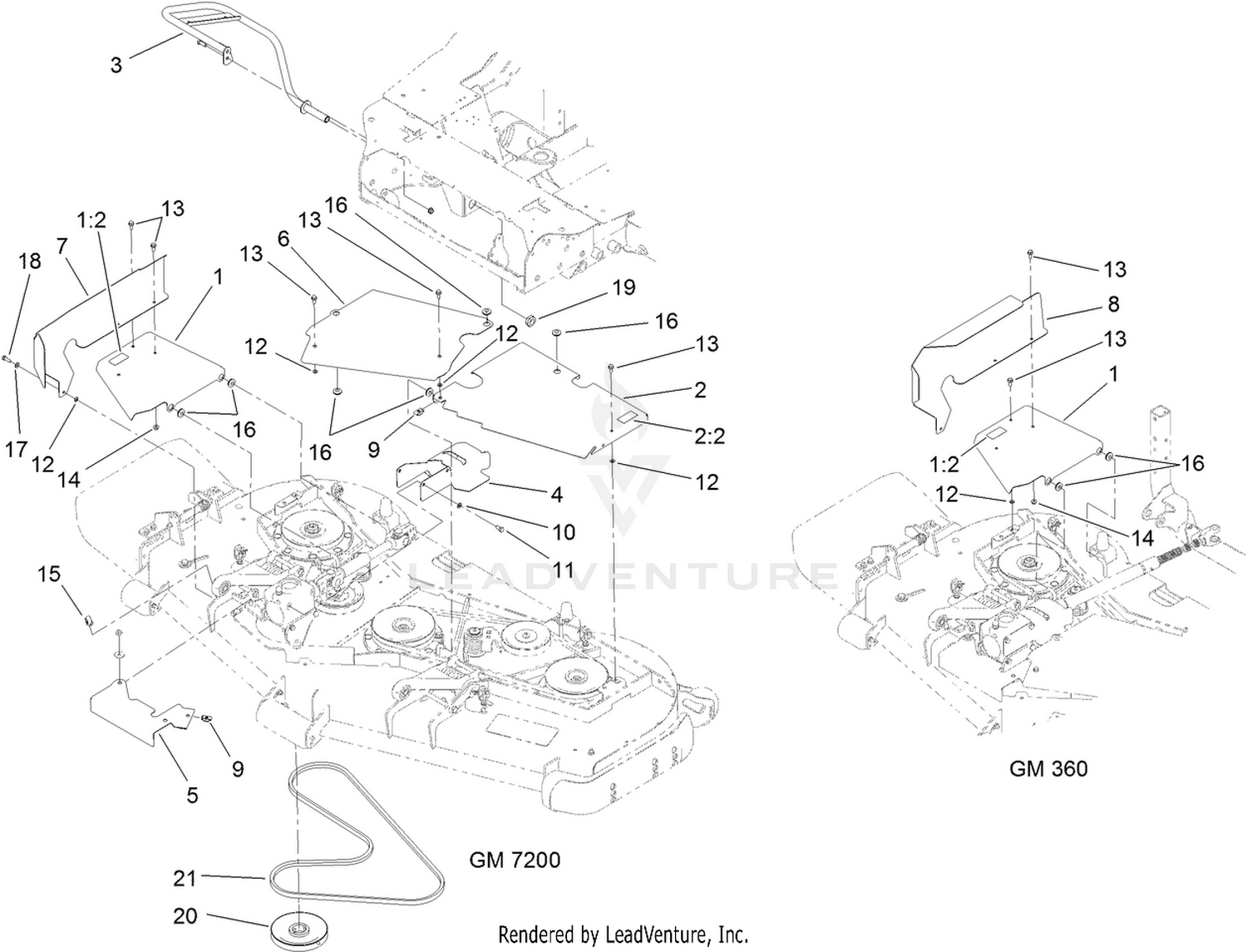

Guard Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 127-4938 | RH COVER ASM Price: $654.31 |
| 2 | 127-4939 | LH COVER ASM Price: $654.31 |
| 3 | 127-4914-03 | GUARD Price: $428.30 |
| 4 | 127-4917-03 | COVER-GEARBOX Price: $49.42 |
| 5 | 127-4937-03 | SHIELD-PULLEY Price: $43.65 |
| 6 | 127-4933-03 | COVER-CENTER Price: $72.05 |
| 7 | 127-4913-03 | SHIELD-RH Price: $80.77 |
| 8 | 127-4916-03 | SHIELD-RH (GM360) Price: $69.91 |
| 9 | 110-3510 | NUT-RETAINER Price: $5.77 |
| 10 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 11 | 323-4 | SCREW-HH Price: $1.02 |
| 12 | 117-2749 | NUT-PUSH Price: $0.25 |
| 13 | 3234-47 | SCREW-HHF Price: $1.79 |
| 14 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 15 | 127-8408 | NUT-U Price: $3.58 |
| 16 | 112-9559 | GROMMET Price: $5.38 |
| 17 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 18 | 33114-025 | SCREW-HH Price: $0.70 |
| 19 | 3296-60 | NUT-LOCK, NI Price: $5.08 |
| 20 | 107-4725 | PULLEY Price: $274.56 |
