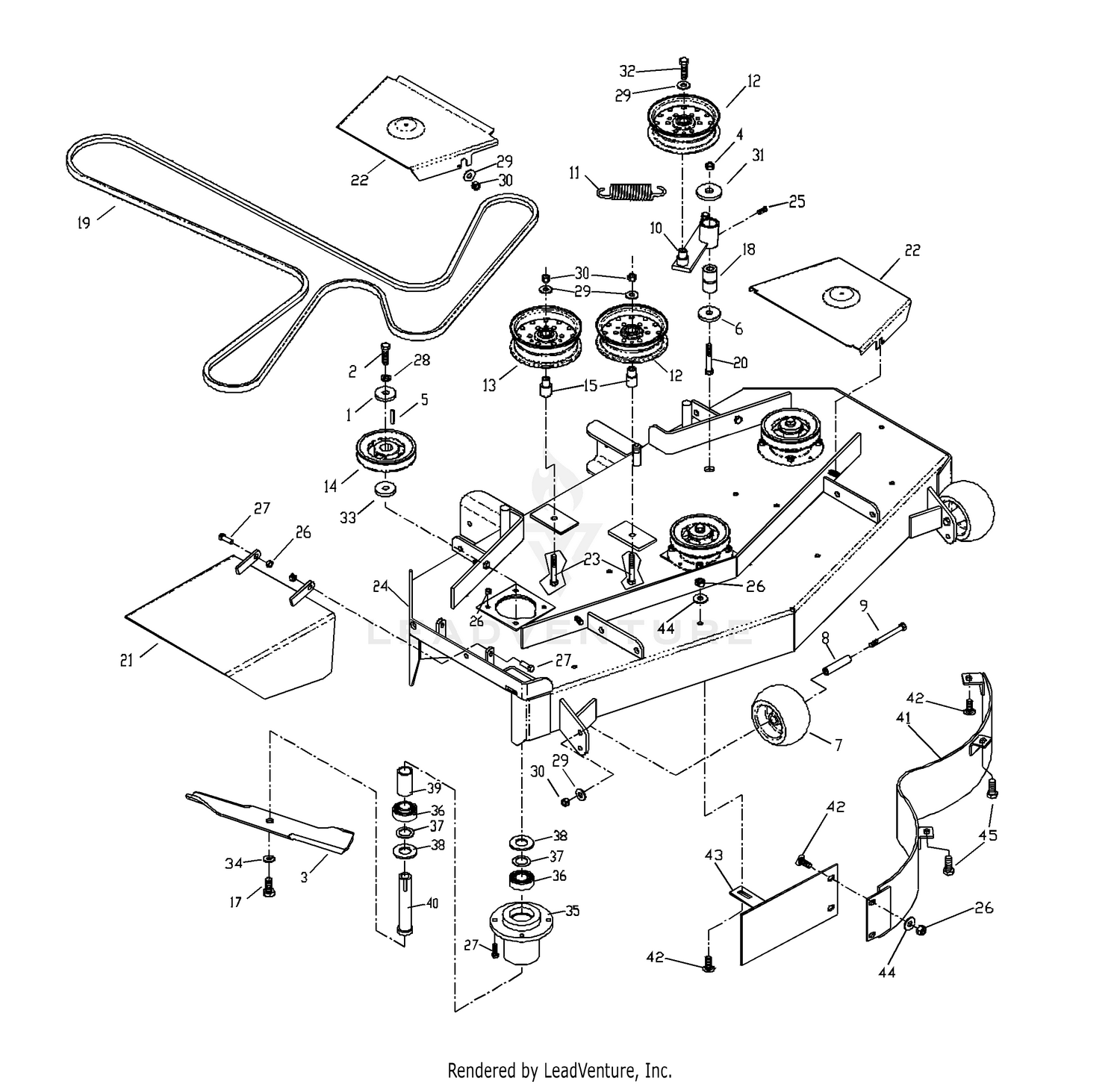

48" Front Deck Assembly

48" Front Deck Assembly

Parts (60)

RefPart NumberDescription
1 51-6880 DISCONTINUED Price: Call Us
1 596770301 Washers This part replaces 539106504. Price: $4.99
2 539100141 HCS 7/16F X 1 1/2 Price: $7.99
2 99-1813 GASKET This part replaces 51-6890. Price: $29.00
3 51-6900 OIL PIPE Price: $136.06
3 539100340 BLADE OEM 16 1/4" Price: $22.99
4 51-6800 OIL FILTER ASM Price: $227.01
4 596135601 GSPW NUTS This part replaces 539101331. Price: $3.99
5 108-3835 OIL-FILTER This part replaces 49-2500. Price: $14.28
5 539101995 KEY 1/4 SQ X 1 1/8 Price: $2.99
6 51-6870 DISCONTINUED Price: Call Us
6 596437501 Washers This part replaces 539102243. Price: $8.99
7 51-6820 WASHER Price: $2.74
7 539102643 ANTI-SCALP ROLLER Price: $8.99
8 51-6830 RELIEF VALVE ASM Price: $111.59
8 539102698 BUSHING Price: $29.99
9 539102754 HCS 3/8C X 3 1/2 Price: $3.99
9 68-6410 GASKET Price: $101.00
10 539103230 IDLER ARM Price: $159.99
10 68-6430 GASKET Price: $2.82
11 539103256 SPRING Price: $9.99
11 68-6420 PLUG Price: $16.59
12 539103257 IDLER PULLEY Price: $49.99
12 60-7110 DISCONTINUED Price: Call Us
13 51-7250 WASHER Price: $1.22
13 539103258 IDLER PULLEY (TALL) Price: $44.99
14 539103283 PULLEY Price: $59.99
14 68-6440 DIPSTICK Price: $66.51
15 539103295 IDLER BUSHING Price: $12.99
15 68-6400 OIL PAN ASSEMBLY Price: $859.91
16 539107408 HOUSING KIT FOR 104403 This part replaces 539104403. Price: $449.99
17 539103299 HCS 5/8F X 1 1/4 Price: $5.99
17 60-7370 BOLT Price: $2.75
18 539103427 PIVOT BUSHING Price: $7.99
19 539109243 BELT, DECK This part replaces 539105644. Price: $74.99
20 539103433 HCS 1/2C X 3 1/4 Price: $5.99
21 539104546 DEFLECTOR CHUTE Price: $139.99
22 539104605 BELTSHIELD Price: $27.01
23 596434201 Bolts This part replaces 539990637. Price: $3.99
24 539106576 DECK W/DECALS 48" Price: $787.99
25 596899901 GSPW Zerks This part replaces 539976998. Price: $2.99
26 596580701 Nuts This part replaces 539990184. Price: $2.99
27 596580801 Bolts This part replaces 539990209. Price: $2.99
28 596238901 Washers This part replaces 539990247. Price: $2.99
29 596433701 GSPW Washers This part replaces 539990517. Price: $2.99
30 595305901 Nuts This part replaces 539990546. Price: $2.99
31 595316401 Washers This part replaces 539990550. Price: $2.99
32 596583101 Screws This part replaces 539990582. Price: $3.99
33 539102675 MACHINERY BUSHING 10 GA. Price: $8.99
34 539990333 LOCKWASHER 5/8 Price: $2.99
35 539104852 HOUSING, DIE CAST Price: $64.99
36 539115279 BEARING-ECC LOCK W/COLLAR This part replaces 539102677. Price: $30.99
37 539102244 BUSHING.MACHINE.18.GAUGE Price: $4.99
38 539102675 MACHINERY BUSHING 10 GA. Price: $8.99
39 539102676 SPACER Price: $8.99
40 539104402 SPINDLE Price: $64.99
41 539105448 MAIN BAFFLE - 48" DECK BLK Price: $299.99
42 596039401 BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99
43 539105444 CENTER BAFFLE 48" Price: $59.99
44 596134901 GSPH This part replaces 539990692. Price: $2.99
