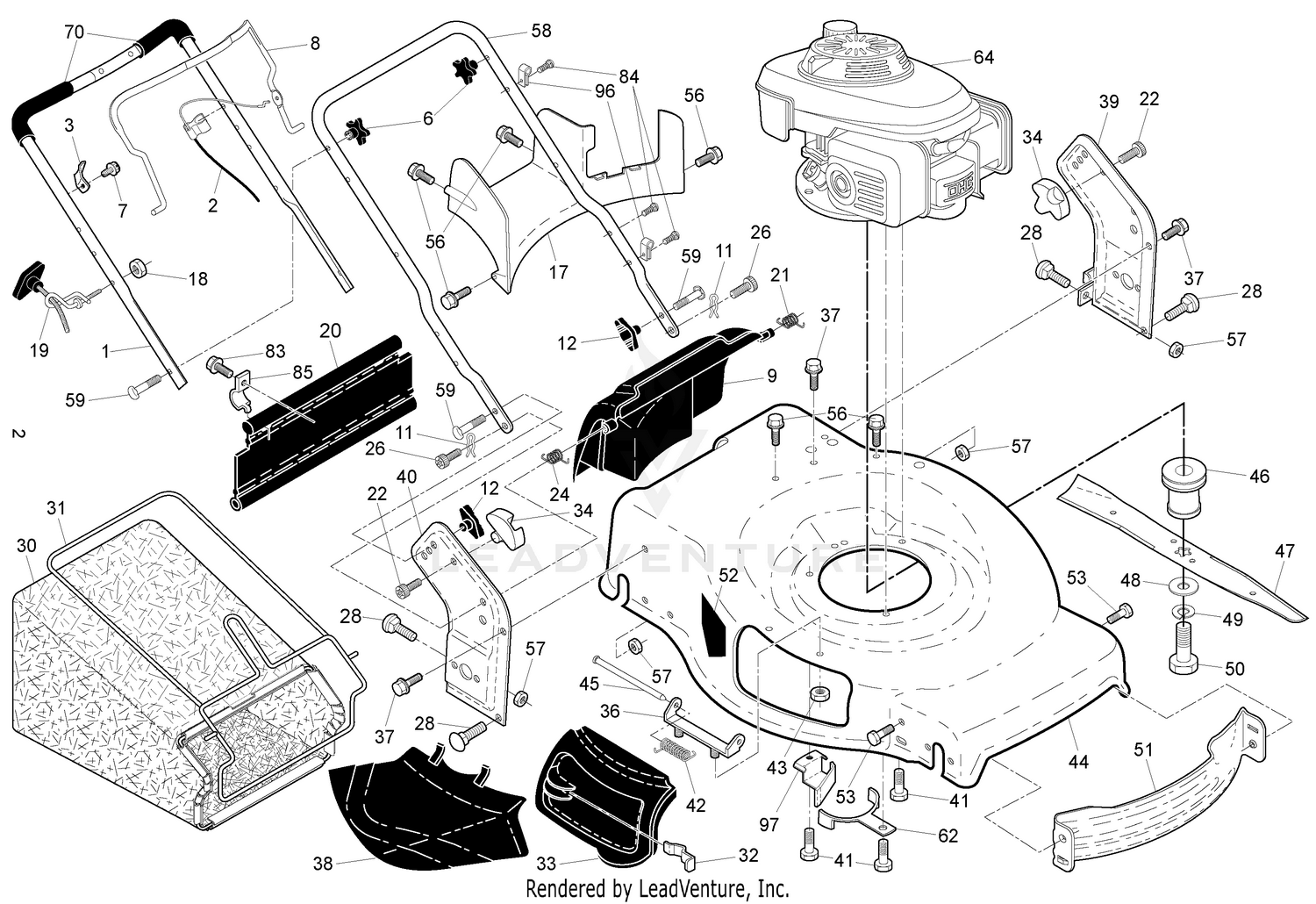

| Ref | Part Number | Description |
|---|
| 2 |
532440386 |
CABLE.MZR.RGD.22.B&S/HON.ERGO This part replaces 532424037. Price: $17.99 |
| 3 |
532430034 |
BRACKET.UPSTOP.RT Price: $5.99 |
| 6 |
532182398 |
KNOB.HANDLE.PLASTIC.STAR.BLACK Price: $5.99 |
| 7 |
532750634 |
SCREW Price: $2.99 |
| 8 |
532426812 |
BAIL.CONTROL.MZR.BS.ORANGE Price: $37.99 |
| 9 |
593304501 |
DOOR ASSY REAR;22+.HUSQVARNA N This part replaces 532431390. Price: $39.99 |
| 11 |
532425575 |
COTTER.HAIRPIN.DOOR/HANDLE.PIV Price: $2.99 |
| 12 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191938. Price: $7.99 |
| 17 |
581782101 |
BAFFLE.REAR.22+RGD.AWD.PLASTIC This part replaces 532431238. Price: $32.99 |
| 18 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 19 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 20 |
532429157 |
SKIRT.REAR.22PLUS.RGD/FGD.NEW Price: $14.99 |
| 21 |
532419949 |
SPRING.LH.BLACK Price: $4.99 |
| 22 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 24 |
532419948 |
SPRING.RH.GRAY Price: $4.99 |
| 26 |
532419945 |
SCREW,DOOR/HANDLE.PIVOT Price: $4.99 |
| 28 |
596136401 |
Bolts This part replaces 872250505. Price: $2.99 |
| 30 |
532429017 |
Grassbag Price: Call Us |
| 31 |
585054702 |
FRAME.GBAG.22+.BLK This part replaces 532419951. Price: $17.99 |
| 32 |
532419944 |
Latch, Mulcher Door Price: Call Us |
| 33 |
594942002 |
DOOR.MULCH.22+.BLK This part replaces 532423357. Price: $5.99 |
| 34 |
532426064 |
BRACKET.GRASSBAG.ATTAC Price: $3.99 |
| 36 |
532175735 |
BRACKET.ASM.HINGE.21.FWGD. Price: $4.99 |
| 37 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 38 |
532426129 |
DEFLECTOR.CLIPPING.22.BLACK Price: $9.99 |
| 39 |
581353703 |
BRACKET.ASM.HANDLE.LT.22+.FG This part replaces 532430039. Price: $19.99 |
| 40 |
581353603 |
BRACKET.ASM.HANDLE.RT.22+.FG This part replaces 532430033. Price: $22.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 42 |
532193000 |
SPRING.TORSION Price: $5.99 |
| 43 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 44 |
532432263 |
KIT.HSG.22+RGD.MC.WO.ORG.CESYM Price: $119.99 |
| 45 |
532175650 |
ROD.HINGE.21 Price: $4.99 |
| 46 |
581473301 |
ADAPTOR BLADE 25MM STAR This part replaces 532421782. Price: $14.99 |
| 47 |
532420463 |
BLADE.22PLUS Price: $19.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 51 |
532430599 |
BAFFLE.FRONT.22.PLUS Price: $12.99 |
| 52 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $3.99 |
| 53 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 56 |
817411312 |
SCREW.HX.13X.750 Price: $4.99 |
| 57 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 58 |
501263201 |
KIT.HANDLE LOW.22+ BT.2PC.BLK This part replaces 532426072. Price: $24.99 |
| 59 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 62 |
532425711 |
BRACKET.KEEPER.BELT Price: $5.99 |
| 70 |
532182748 |
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) Price: $7.99 |
| 83 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 84 |
532428124 |
FASTENER.PUSH.O.250X0.783 Price: $1.99 |
| 85 |
532434530 |
BRACKET.SKIRT.22+.BZP Price: $3.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 97 |
580606902 |
BRACKET.BELT.GUIDE.22+.004 BZP This part replaces 532434893. Price: $3.99 |
