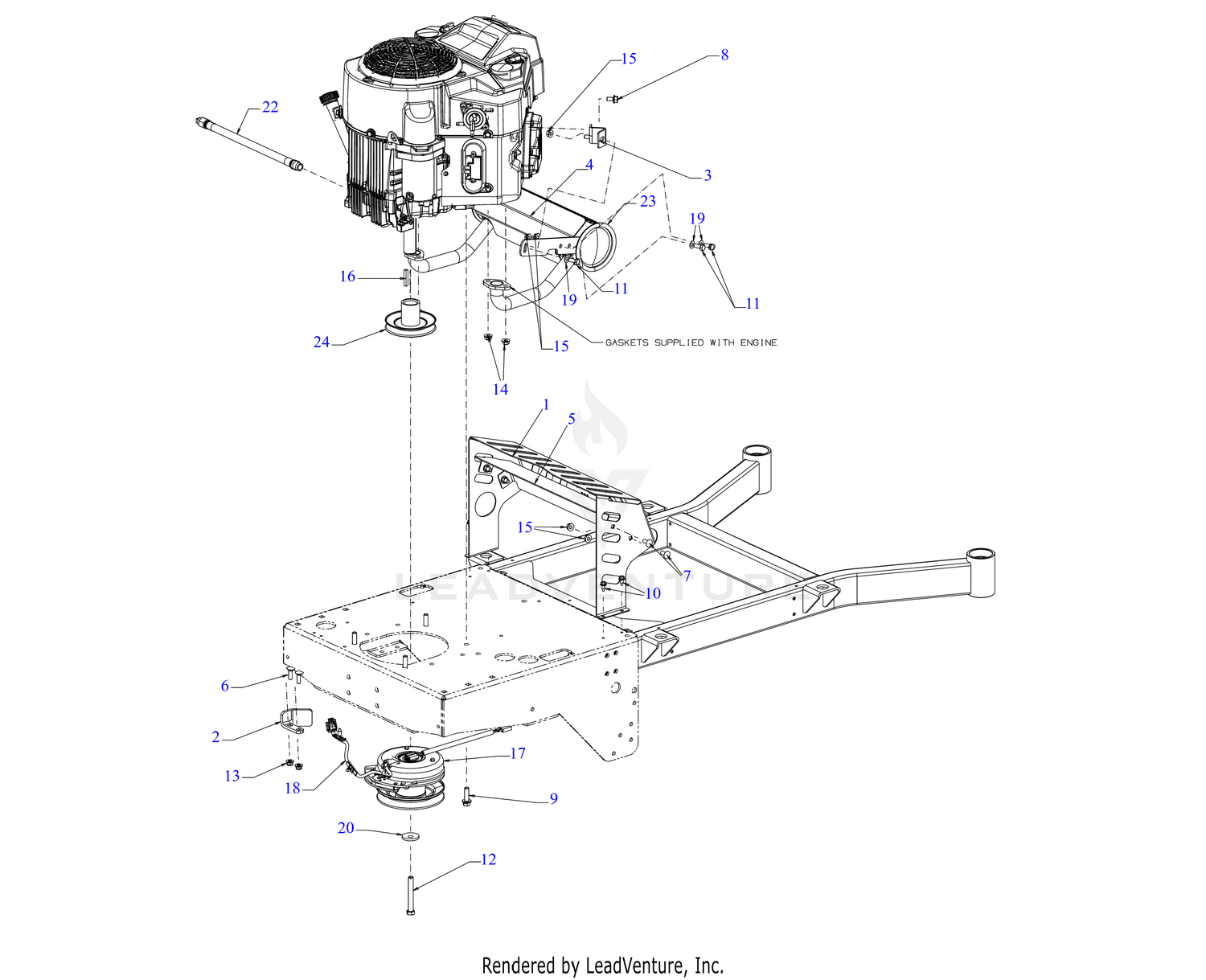

| Ref | Part Number | Description |
|---|
| 1 |
680-02714 |
MUFFLER COVER Price: $127.96 |
| 3 |
703E11304 |
MUFFLER MOUNTING BRACKET Price: $19.43 |
| 4 |
703-11969B |
MUFFLER SHIELD Price: $50.15 |
| 6 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 7 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 Price: $3.53 |
| 8 |
710-04748 |
SCREW M8 x 1.25 x 16MM GR8.8 Price: $3.74 |
| 9 |
710-06359A |
SCREW 3/8-16 x 1.25 GR5 Price: $4.13 |
| 10 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 11 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 12 |
710-3157A |
SCREW 7/16-20 x 3.25 GR5 Price: $9.67 |
| 13 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 14 |
712-04312 |
HEX FLANGE NUT Price: $3.37 |
| 15 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 16 |
714-0118 |
SQUARE KEY 1/4 x 1.50 Price: $6.06 |
| 17 |
917-05438A |
PTO CLUTCH This part replaces 917-05438. Price: $504.48 |
| 18 |
725-06173 |
CLUTCH HARNESS 11" Price: $27.02 |
| 19 |
736-0278 |
FLAT WASHER Price: $4.99 |
| 20 |
736-3082A |
FLAT WASHER .45 x 1.5 x .172 HT Price: $9.09 |
| 22 |
751-10291D |
OIL DRAIN HOSE W/VIBRA SEAL This part replaces 751-10291C. Price: $46.52 |
| 23 |
951-15704A |
MUFFLER (ROUND) Price: $184.87 |
