| Ref | Part Number | Description |
|---|
| 1 |
304-46 |
DRAINCOCK Price: $7.55 |
| 2 |
32104-116 |
SCREW-HWHTF Price: $0.55 |
| 3 |
32128-44 |
NUT Price: $2.69 |
| 4 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 5 |
119-2028 |

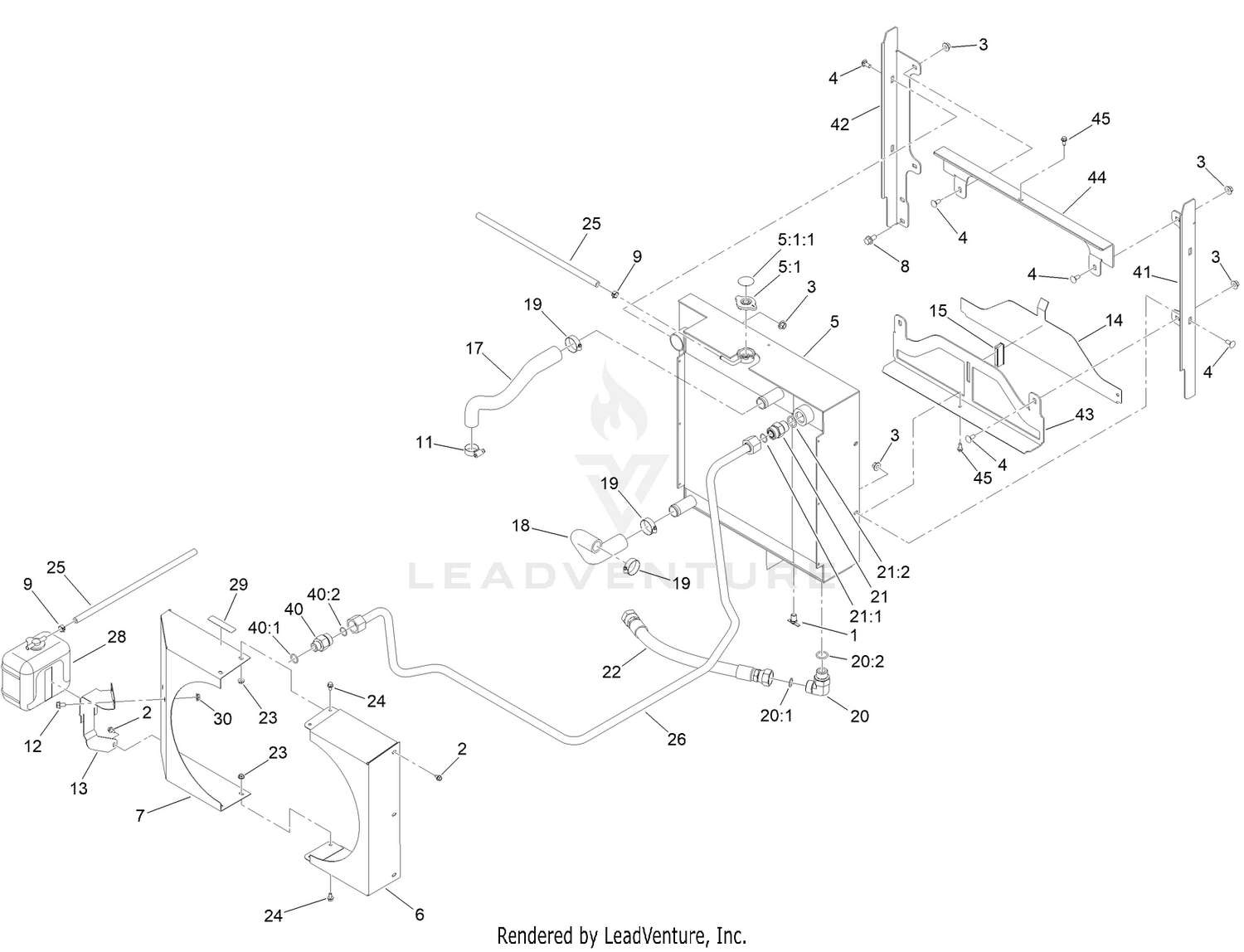

RADIATOR AND OIL COOLER ASM Price: $1,787.22 |
| 6 |
120-3517-0P |
SHROUD-FAN, LH Price: $156.71 |
| 7 |
120-3516-0P |
SHROUD-FAN, RH Price: $141.79 |
| 8 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 9 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 11 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 12 |
3234-30 |
SCREW-HHF Price: $0.41 |
| 13 |
120-3548-0P |
BRACKET-MOUNT, OVERFLOW Price: $30.18 |
| 14 |
95-8702-0P |
SHIELD-RADIATOR, LOWER Price: $47.95 |
| 15 |
99-3497 |
MAGNET Price: $20.22 |
| 17 |
120-3506 |
HOSE-RADIATOR, UPPER Price: $43.43 |
| 18 |
120-3399 |
HOSE-RADIATOR, LOWER Price: $41.62 |
| 19 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 20 |
340-142 |
FITTING-ELBOW-90 Price: $65.90 |
| 21 |
340-9 |
FITTING-HYD, STRAIGHT Price: $67.47 |
| 22 |
92-7536 |
HOSE-HYD Price: $196.76 |
| 23 |
32128-33 |
NUT-HF Price: $0.25 |
| 24 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 25 |
109-0274 |
HOSE-FUEL Price: $12.99 |
| 26 |
121-3609 |
TUBE-HYD Price: $143.00 |
| 28 |
108-0638 |
BOTTLE-OVERFLOW This part replaces 104-9318. Price: $33.20 |
| 29 |
93-6681 |
DECAL-WARNING, FAN Price: $11.51 |
| 30 |
32128-20 |
NUT-HF Price: $0.99 |
| 40 |
340-66 |
FITTING-STRAIGHT Price: $19.11 |
| 41 |
120-3531-0P |
BRACKET-RADIATOR, LH Price: $54.92 |
| 42 |
120-3532-0P |
BRACKET-RADIATOR, RH Price: $54.92 |
| 43 |
120-3530-0P |
BRACKET-RADIATOR, BOTTOM Price: $78.45 |
| 44 |
120-3529-0P |
BRACKET-RADIATOR, TOP Price: $62.39 |
