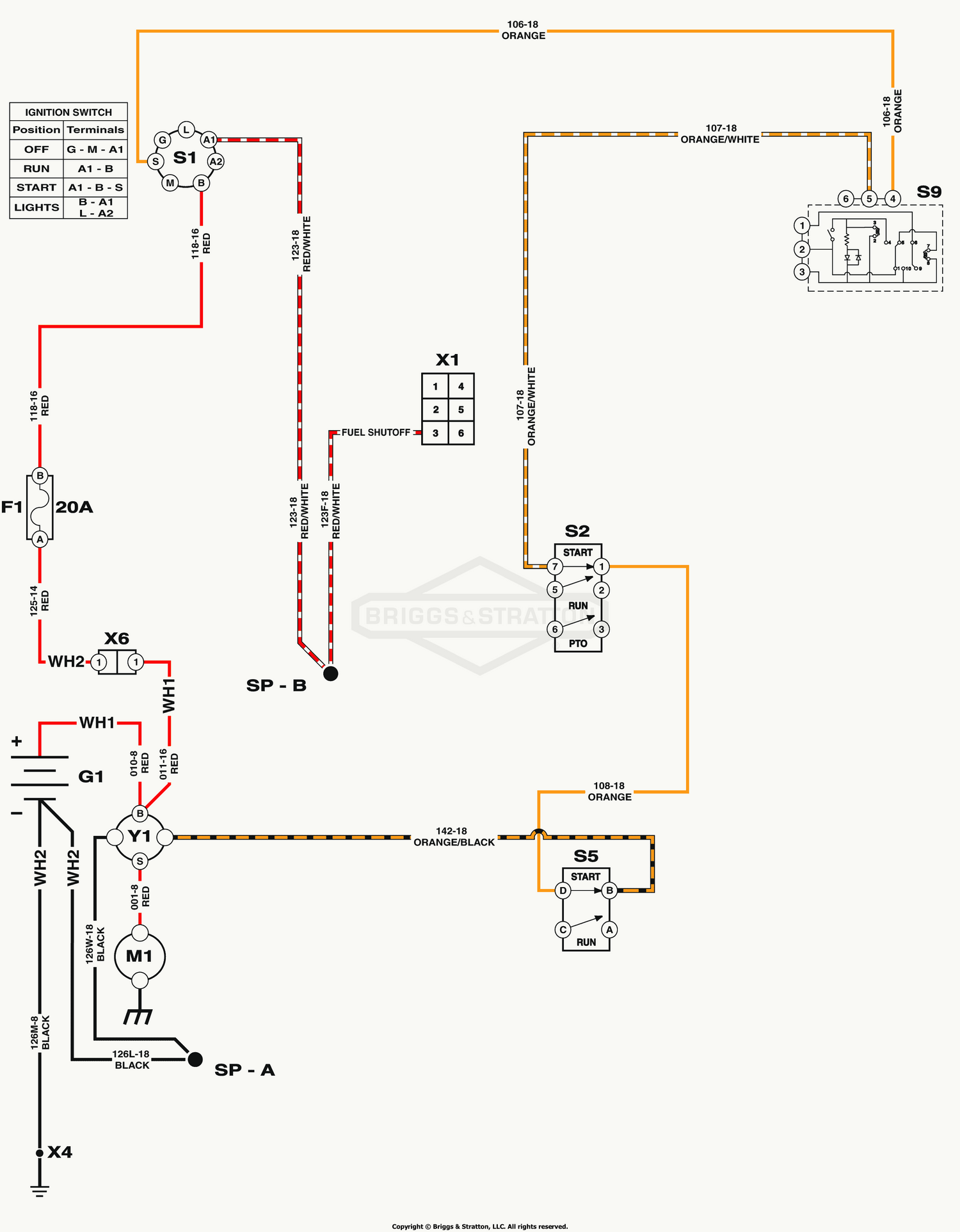

Electrical Schematic - Cranking Circuit
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| F1 | 1731957SM | FUSE, Wiring Harness Price: $7.55 |
| M1 | 592599 | MOTOR, Starter Price: $132.94 |
| S1 | 1761507YP | SWITCH, Ignition Price: $28.51 |
| S2 | 1722887SM | SWITCH-PTO PUSH This part replaces 1722887YP. Price: $30.86 |
| S9 | 84008079 | SWITCH This part replaces 1761897YP. Price: $23.99 |
| WH1 | 1759779YP | HARNESS, Battery, Solenoid Price: $10.42 |
| WH2 | 84003000 | HARNESS This part replaces 1761300YP. Price: $71.45 |
