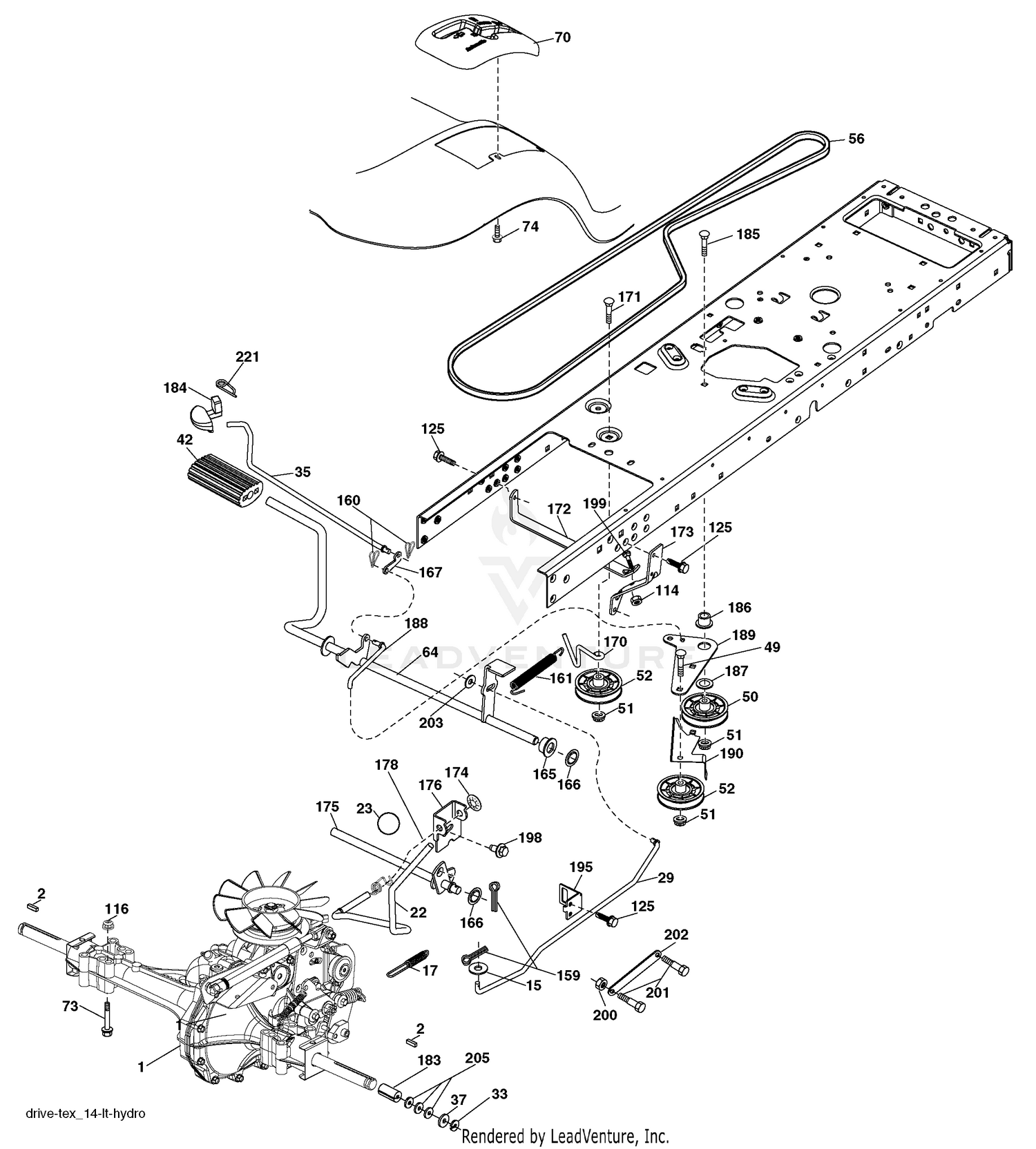

| Ref | Part Number | Description |
|---|
| 2 |
123583X |
Key Price: Call Us |
| 10 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 15 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 17 |
197296 |
Spring, Brake Price: Call Us |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 22 |
197660 |
Rod Shift Price: Call Us |
| 23 |
174779 |
Knob Price: Call Us |
| 29 |
197659 |
Rod, Brake Price: Call Us |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 33 |
12000001 |
Ring E Price: Call Us |
| 35 |
197722 |
Rod, Brake, Park Price: Call Us |
| 37 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 42 |
123533X |
Cover, Foot Pedal Price: Call Us |
| 49 |
72110614 |
Bolt Price: Call Us |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 50 |
194327 |
Pulley Idler Flat Price: Call Us |
| 51 |
73900600 |
Lock Nut 3/8-16 Price: Call Us |
| 52 |
194326 |
Idler V-Groove 910" Offset Price: Call Us |
| 56 |
140218 |
V-Belt, Drive Price: Call Us |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 64 |
196200 |
Shaft Asm. Pedal Brake Control Price: Call Us |
| 70 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 70 |
193220X428 |
Console Shift Price: Call Us |
| 73 |
74490544 |
Bolt Hex Flghd 5/16-18 Gr. 5 Price: Call Us |
| 74 |
142432 |
Screw Hex WSH Hi-Lo 1/4 x 1/2 UNC Price: Call Us |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 114 |
73800500 |
Nut Lock Hex W/INS 5/16-18UNC Price: Call Us |
| 116 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 125 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 130 |
133-2811 |
BEARING This part replaces 107-0137. Price: $46.67 |
| 140 |
107-9087 |
FRAME-END Price: $183.56 |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 159 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 160 |
169484 |
Retainer Clip Price: Call Us |
| 160 |
98-7721 |
RECTIFIER ASM This part replaces 98-9476. Price: $486.45 |
| 161 |
195403 |
Spring, Return, Clutch Price: Call Us |
| 165 |
196212 |
Bushing Price: Call Us |
| 166 |
197290 |
Nut Push .625 Price: Call Us |
| 167 |
196211 |
Latch Brake Parking Price: Call Us |
| 170 |
194322 |
Keeper Belt Centerspan Price: Call Us |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 171 |
72110616 |
Bolt Price: Call Us |
| 172 |
197656 |
Strap Torque LH Price: Call Us |
| 173 |
197655 |
Strap Torque RH Price: Call Us |
| 174 |
197289 |
Nut Push Price: Call Us |
| 175 |
197653 |
Shaft Asm Price: Call Us |
| 176 |
196214 |
Asm Clevis Rod Shift Price: Call Us |
| 178 |
197456 |
Spring Shift Price: Call Us |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 183 |
137057 |
Spacer Axle Price: Call Us |
| 184 |
198403X428 |
Handle Parking Brake Price: Call Us |
| 185 |
72110620 |
Bolt Price: Call Us |
| 186 |
194321 |
Spacer Retainer Price: Call Us |
| 187 |
19133210 |
Washer Price: Call Us |
| 188 |
194323 |
Link Clutch Ground Drive Price: Call Us |
| 189 |
194317 |
Bellcrank Ground Drive Price: Call Us |
| 190 |
194318 |
Keeper Bellcrank Ground Drive Price: Call Us |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 195 |
198012 |
Bracket Rod Brake Price: Call Us |
| 198 |
199496 |
Screw 7/16-147 x 7/8 fl ange head Price: Call Us |
| 199 |
72140508 |
Bolt RDHD SQNK 5/16-18UNC x 1 Price: Call Us |
| 200 |
73930500 |
Nut Center Lock 5/16-18UNC Price: Call Us |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 201 |
169612 |
Bolt Shoulder 5/16-18UNC Price: Call Us |
| 202 |
197714 |
Link Trans Price: Call Us |
| 203 |
19111116 |
Washer 11/32 x 11/16 x 16 Ga. Price: Call Us |
| 205 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
