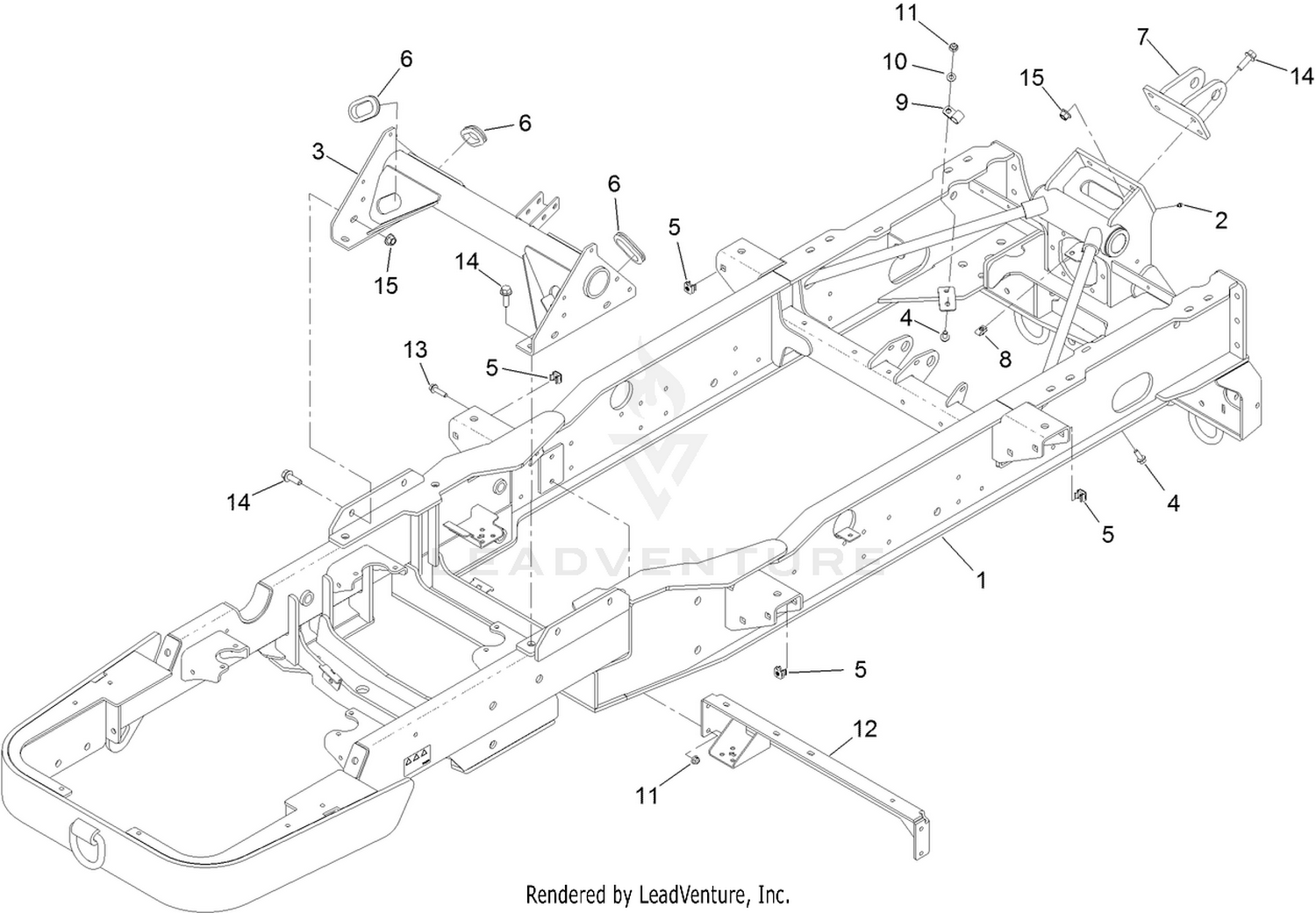

Rear Frame Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 302-5 | FITTING-GREASE Price: $0.59 |
| 3 | 136-5050-03 | SUPPORT-FRAME Price: $619.76 |
| 4 | 3234-42 | SCREW-HHF Price: $1.10 |
| 5 | 138-4106 | NUT-CLIP, SQ Price: $8.35 |
| 6 | 126-0015 | GROMMET Price: $2.31 |
| 7 | 131-5487-03 | ATTACH-LINK Price: $111.66 |
| 8 | 94-2413 | NUT-U Price: $1.79 |
| 9 | 2412-81 | CLAMP-R Price: $3.39 |
| 10 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 11 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 12 | 136-9960-01 | CROSSMEMBER Price: Call Us |
| 13 | 114-4681 | SCREW-HHF Price: $0.89 |
| 14 | 100-6116 | SCREW-HHF Price: $6.41 |
