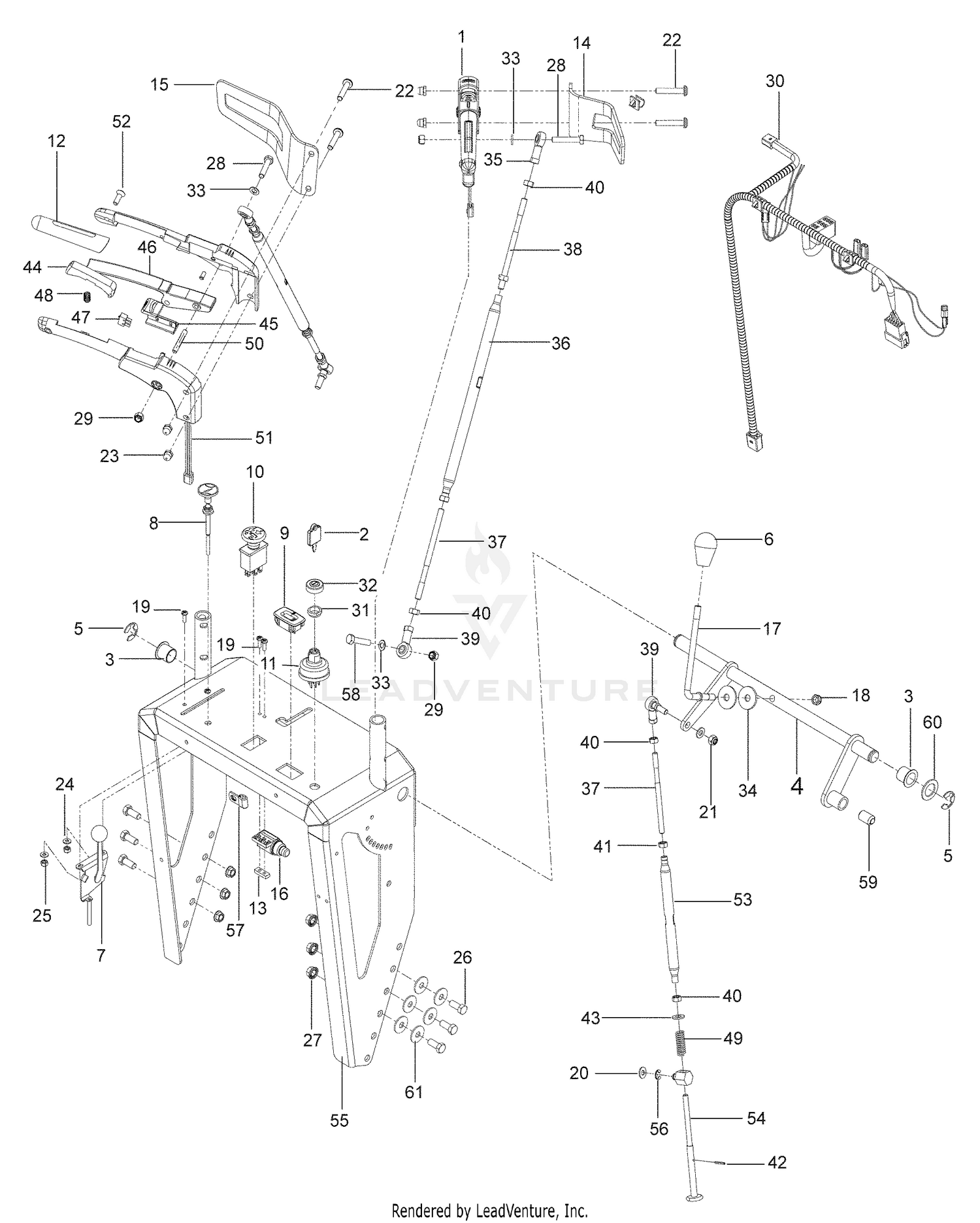

| Ref | Part Number | Description |
|---|
| 1 |
539132623 |
GRIP ASM Price: $179.99 |
| 1 |
63-4550 |
DISCONTINUED Price: Call Us |
| 2 |
539104812 |
KEY-PADDED Price: $5.99 |
| 2 |
63-4560 |
DISCONTINUED Price: Call Us |
| 3 |
539132520 |
BEARING - FLANGE, 20MM Price: $32.99 |
| 3 |
63-4570 |
DISCONTINUED Price: Call Us |
| 4 |
574454301 |
SHAFT, SPEED CONTROL Price: $27.99 |
| 4 |
63-4580 |
DISCONTINUED Price: Call Us |
| 5 |
539132629 |
E-RING, 20MM Price: $1.99 |
| 5 |
63-4590 |
VENT SCREW Price: $6.36 |
| 6 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 6 |
63-4600 |
DISCONTINUED Price: Call Us |
| 7 |
539132688 |
THROTTLE CONTROL Price: $49.99 |
| 7 |
63-4610 |
DISCONTINUED Price: Call Us |
| 8 |
539109954 |
CHOKE CONTROL This part replaces 539130208. Price: $37.99 |
| 8 |
63-4620 |
WASHER Price: $3.44 |
| 9 |
576179401 |
HOUR METER This part replaces 539110074. Price: $27.99 |
| 9 |
63-4630 |
DISCONTINUED Price: Call Us |
| 10 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 539101768. Price: $24.99 |
| 10 |
63-4640 |
DISCONTINUED Price: Call Us |
| 11 |
539101770 |
IGNITION SWITCH KIT Price: $24.99 |
| 11 |
60-7260 |
DISCONTINUED Price: Call Us |
| 12 |
522950501 |
GRIP, FOAM Price: $4.99 |
| 12 |
60-3060 |
WASHER Price: $8.41 |
| 13 |
539102678 |
TAPPED PLATE Price: $12.99 |
| 13 |
60-3160 |
DISCONTINUED Price: Call Us |
| 14 |
522421802 |
GUARD, HAND - OFFSET RH, PTD Price: $28.99 |
| 14 |
60-3150 |
DISCONTINUED Price: Call Us |
| 15 |
522421702 |
GUARD, HAND - OFFSET LH, PTD Price: $32.99 |
| 16 |
522559601 |
SWITCH, NO PLUNGER TYPE Price: $16.99 |
| 17 |
522676001 |
ROD - SHIFT Price: $11.99 |
| 18 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 19 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
| 20 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 21 |
539103153 |
NUT M8-1.25 TOP NYL GR10 ZD Price: $2.99 |
| 22 |
525841401 |
HHFS 5/16-18 X 1.75 GR8 ZC Price: $1.99 |
| 23 |
505203401 |
NUT ACORN 5/16-18 Price: $0.46 |
| 24 |
539105408 |
WASHER #10 Price: $2.99 |
| 25 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 26 |
539108507 |
HCS 3/8-16 X 7/8 GR 5 ZD Price: $2.99 |
| 27 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 28 |
874780528 |
SCREW This part replaces 539990669. Price: $4.99 |
| 29 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 30 |
522823901 |
HARNESS, WB W/EL. START Price: $99.99 |
| 31 |
539103177 |
DNO IGNITION NUT Price: $2.99 |
| 32 |
539103178 |
CAP IGNITION NUT Price: $3.99 |
| 33 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 34 |
539912063 |
CONE WASHER Price: $5.99 |
| 35 |
539132602 |
ROD END 8 MM, RH Price: $14.99 |
| 36 |
539132601 |
TUBE - ADJUSTING Price: $27.99 |
| 37 |
539132605 |
STUD - LH Price: $37.99 |
| 38 |
539132604 |
STUD - RH Price: $37.99 |
| 39 |
539132603 |
ROD END 8 MM, W/STUD Price: $19.99 |
| 40 |
539132607 |
NUT 8MM X 1.25 HEX ZD Price: $2.99 |
| 41 |
510098701 |
NUT, 8MM X 1.25 LEFT HAND Price: $4.99 |
| 42 |
539132614 |
ROLL PIN - 3 MM Price: $2.99 |
| 43 |
510098601 |
WASHER, 10MM Price: $2.99 |
| 44 |
539132674 |
OPC ACTUATOR Price: $11.99 |
| 45 |
539132617 |
LOCK - NEUTRAL Price: $7.99 |
| 46 |
539132618 |
LEVER Price: $16.99 |
| 47 |
539132620 |
SWITCH Price: $12.99 |
| 48 |
539132599 |
SPRING Price: $22.99 |
| 49 |
539101224 |
SPRING Price: $19.99 |
| 50 |
539132635 |
PIN - GROOVE 1/4 X 1-1/2 Price: $4.99 |
| 51 |
539132675 |
HARNESS - SWITCH Price: $34.99 |
| 52 |
539132677 |
SCREW - OVAL HEAD 6MM Price: $1.99 |
| 53 |
539132609 |
TUBE - ADJUSTING Price: $54.99 |
| 54 |
539132608 |
ROD - HEADED Price: $4.99 |
| 55 |
522478101 |
HANDLE W/DECAL Price: $399.99 |
| 56 |
539132613 |
E-RING, 10MM Price: $1.99 |
| 57 |
539109867 |
DOUBLE TUBE CLAMP Price: $5.99 |
| 58 |
539990627 |
HCS 5/16C X 1 1/4 This part replaces 539100469. Price: $3.99 |
| 59 |
574454601 |
DETENT Price: $27.99 |
| 60 |
539923787 |
BSHG .875 X 1.375 X .074 ZD Price: $2.99 |
| 61 |
539112483 |
SPRING WASHER - .38 Price: $6.99 |
