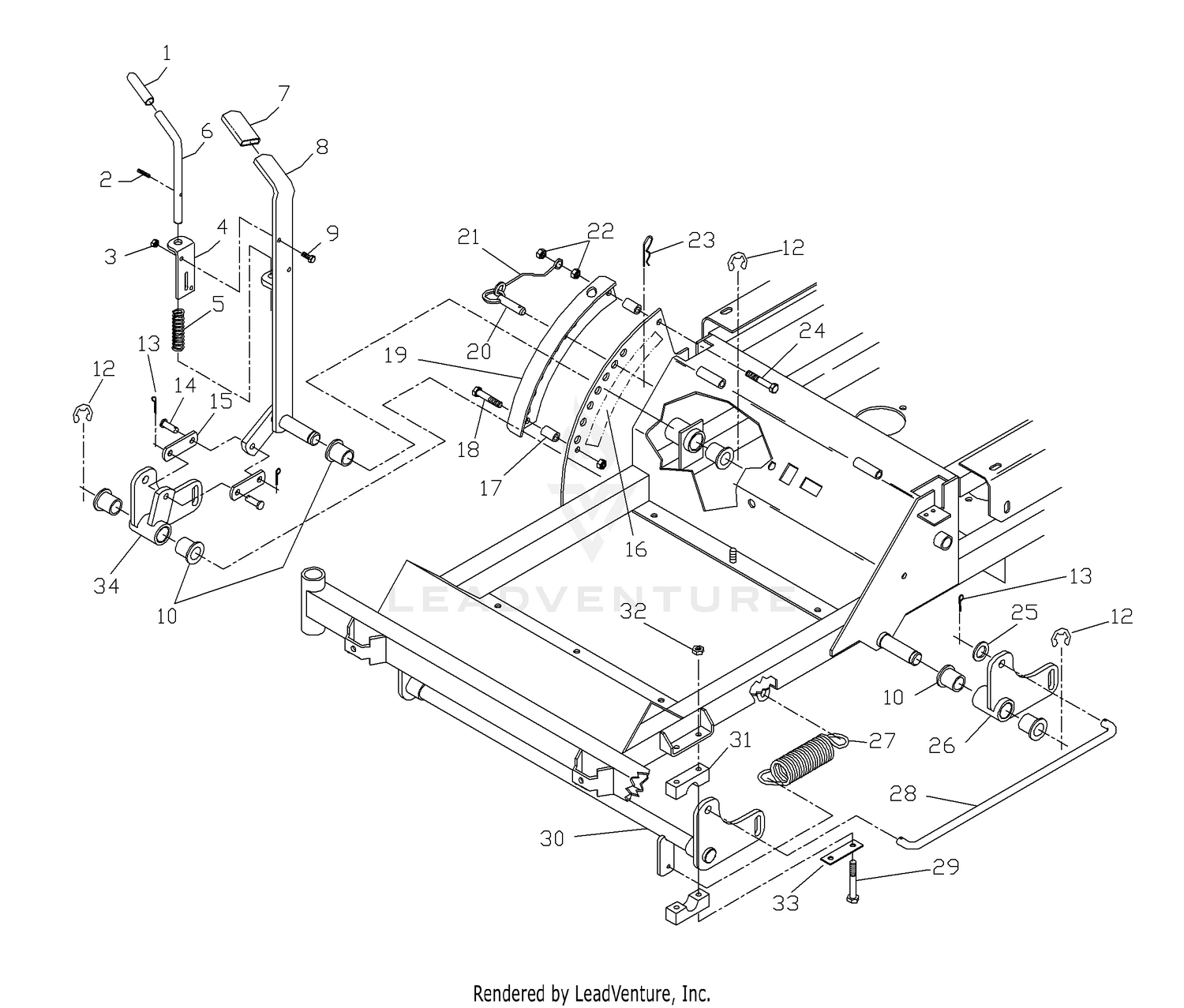

| Ref | Part Number | Description |
|---|
| 1 |
281-7 |
CAP-PIPE Price: $3.69 |
| 1 |
539101050 |
GRIP Price: $2.99 |
| 2 |
32104-116 |
SCREW-HWHTF Price: $0.55 |
| 2 |
539101082 |
ROLL PIN 3/16 X 1-1/4 ZD Price: $2.99 |
| 3 |
2412-74 |
R-CLAMP Price: $2.37 |
| 3 |
539990761 |
NUT 1/4C CENTER LOCK Price: $2.99 |
| 4 |
539103534 |
PIN MT, UPPER Price: $22.99 |
| 4 |
77-3100 |
DECAL-WARNING Price: $7.89 |
| 5 |
539101058 |
SPRING Price: $3.99 |
| 5 |
83-7840 |
DISCONTINUED Price: Call Us |
| 6 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 6 |
539103533 |
PIN Price: $22.99 |
| 7 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 7 |
539102515 |
GRIP Price: $3.99 |
| 8 |
539104201 |
LEVER WELDMENT Price: $135.22 |
| 8 |
83-8040 |
COVER-LEFT Price: $247.94 |
| 9 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 9 |
66-3240 |
CAP-RADIATOR Price: $25.30 |
| 10 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 10 |
539101232 |
BUSHING, FLANGED Price: $11.99 |
| 11 |
110-3257 |
HOSE-FUEL This part replaces 71-3382. Price: $17.26 |
| 11 |
539104606 |
BELLCRANK WLDMT - RT Price: $69.99 |
| 12 |
539101802 |
E-RING 7/8 Price: $2.99 |
| 12 |
83-7980 |
DISCONTINUED Price: Call Us |
| 13 |
3234-28 |
SCREW-HHF Price: $1.59 |
| 13 |
596029501 |
Pins This part replaces 539990365. Price: $2.99 |
| 14 |
32148-8 |
NUT-CLINCH Price: $2.31 |
| 14 |
539977703 |
CLEVIS PIN 3/8 X 1 1/8 Price: $4.99 |
| 15 |
2412-41 |
CLAMP-R Price: $4.82 |
| 15 |
539102565 |
LIFT ARM Price: $6.99 |
| 16 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 16 |
539104205 |
DECAL, LOCATOR Price: $2.01 |
| 17 |
539103543 |
SPACER Price: $5.99 |
| 17 |
83-8150-03 |
SCREEN ASM This part replaces 83-8150. Price: $354.15 |
| 18 |
539990588 |
HCS 3/8C X 2 Price: $3.99 |
| 18 |
83-8070-03 |
SHIELD-RADIATOR, BOTTOM This part replaces 83-8070. Price: $29.88 |
| 19 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 19 |
539104204 |
LOCATOR WELDMENT Price: $27.52 |
| 20 |
24-0760 |
DISCONTINUED Price: Call Us |
| 20 |
596917701 |
Pins This part replaces 539102526. Price: $4.99 |
| 21 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 21 |
539102563 |
LANYARD Price: $7.99 |
| 22 |
595305901 |
Nuts This part replaces 539990546. Price: $2.99 |
| 22 |
83-8210-03 |
PANEL-FRONT, LEFT This part replaces 83-8210. Price: $85.69 |
| 23 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 23 |
596273101 |
Pins This part replaces 539976989. Price: $2.99 |
| 24 |
596564404 |
Bolts This part replaces 539990629. Price: $2.99 |
| 24 |
85-5030 |
HOSE ASSY Price: $116.06 |
| 25 |
340-127 |
NUT-BULKHEAD Price: $2.24 |
| 25 |
539991030 |
BUSHING 1/2 MACH Price: $0.99 |
| 26 |
32128-44 |
NUT Price: $2.69 |
| 26 |
539104607 |
BELLCRANK WLDMT-LT Price: $50.53 |
| 27 |
539102642 |
SPRING Price: $24.99 |
| 27 |
83-9670 |
DISCONTINUED Price: Call Us |
| 28 |
539104222 |
LINK Price: $16.99 |
| 28 |
83-9060 |
HOSE - RADIATOR TOP RT Price: $79.79 |
| 29 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 29 |
539101721 |
HCS 5/16C X 2-3/4 Price: $3.99 |
| 30 |
539104608 |
LIFT WLDMT Price: $85.13 |
| 30 |
83-9080 |
DISCONTINUED Price: Call Us |
| 31 |
539104808 |
PILLOW BLOCK Price: $7.99 |
| 31 |
83-9070 |
DISCONTINUED Price: Call Us |
| 32 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 32 |
83-7850-03 |
BOTTOM RAD SHROUD This part replaces 83-7850. Price: $70.34 |
| 33 |
584392702 |
REINFORCEMENT.PLATEX431 This part replaces 539104807. Price: $11.99 |
| 33 |
83-7990 |
DISCONTINUED Price: Call Us |
| 34 |
83-9050 |
DISCONTINUED Price: Call Us |
| 35 |
83-7550 |
RADIATOR ASSY Price: $1,134.56 |
| 36 |
83-9030 |
FOAM-TOP Price: $5.26 |
| 37 |
281-1 |
PLUG-PIPE, SQH Price: $4.56 |
| 38 |
237-30 |
O-RING Price: $2.50 |
| 39 |
83-7970 |
CONNECTOR Price: $58.21 |
| 40 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 41 |
85-5170 |
DISCONTINUED Price: Call Us |
| 42 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 43 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 44 |
76-6365 |
DISCONTINUED Price: Call Us |
