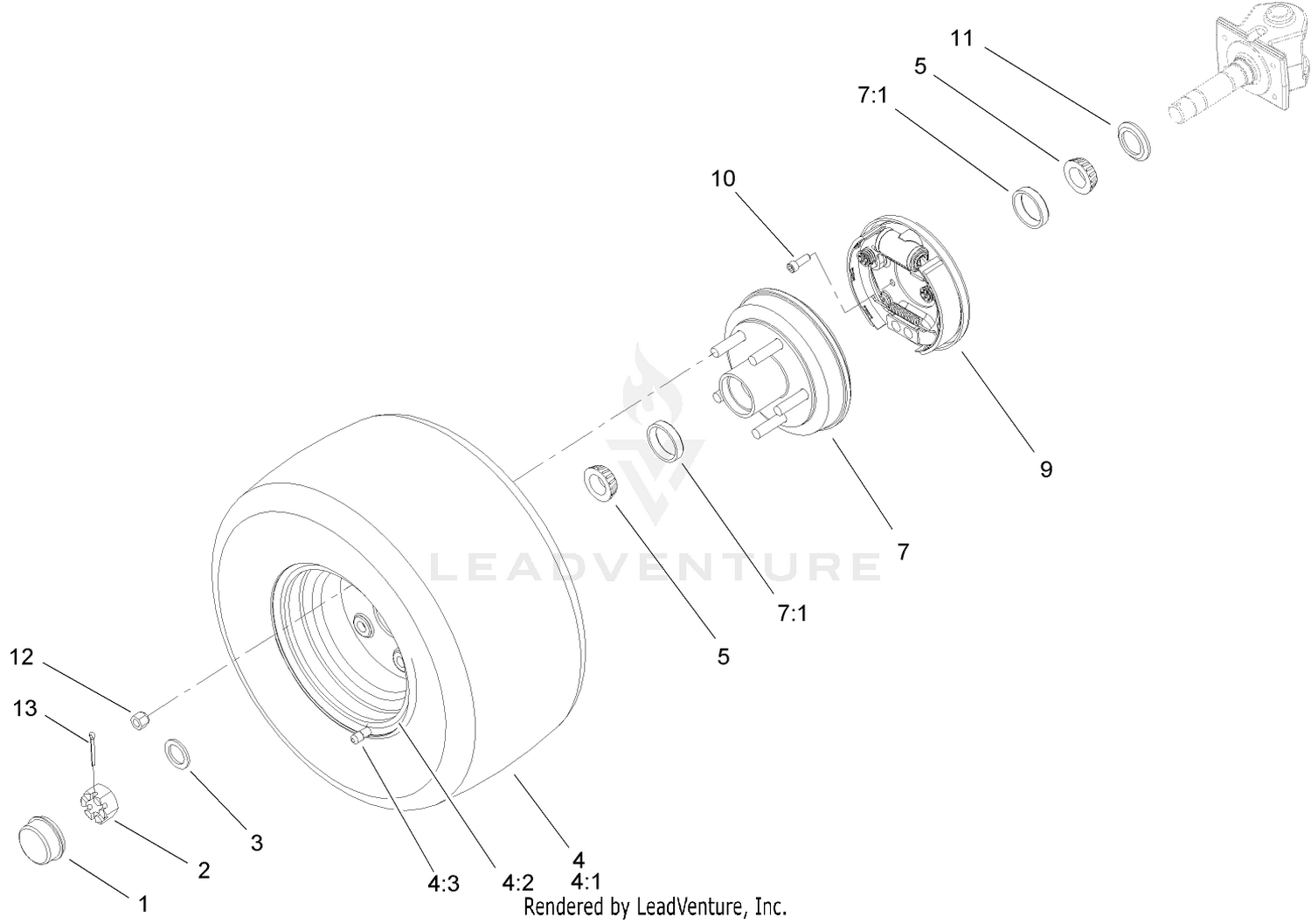

Front Wheel Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 1-809082 | NUT-SHH Price: $13.99 |
| 3 | 27-1850 | WASHER-PIVOT Price: $2.58 |
| 4 | 110-5135 | FRONT TIRE AND WHEEL ASM This part replaces 93-6487. Price: $369.31 |
| 5 | 254-92 | CONE-BEARING, OUTER Price: $15.84 |
| 7 | 100-8287 | HUB/DRUM-FRONT Price: $163.43 |
| 9 | 100-8285 | FRONT BRAKE ASM Price: $175.77 |
| 10 | 3273-14 | SCREW-HSH Price: $0.81 |
| 11 | 253-129 | SEAL Price: $21.73 |
| 12 | 242-35 | NUT-WHEEL This part replaces 321077. Price: $9.04 |
