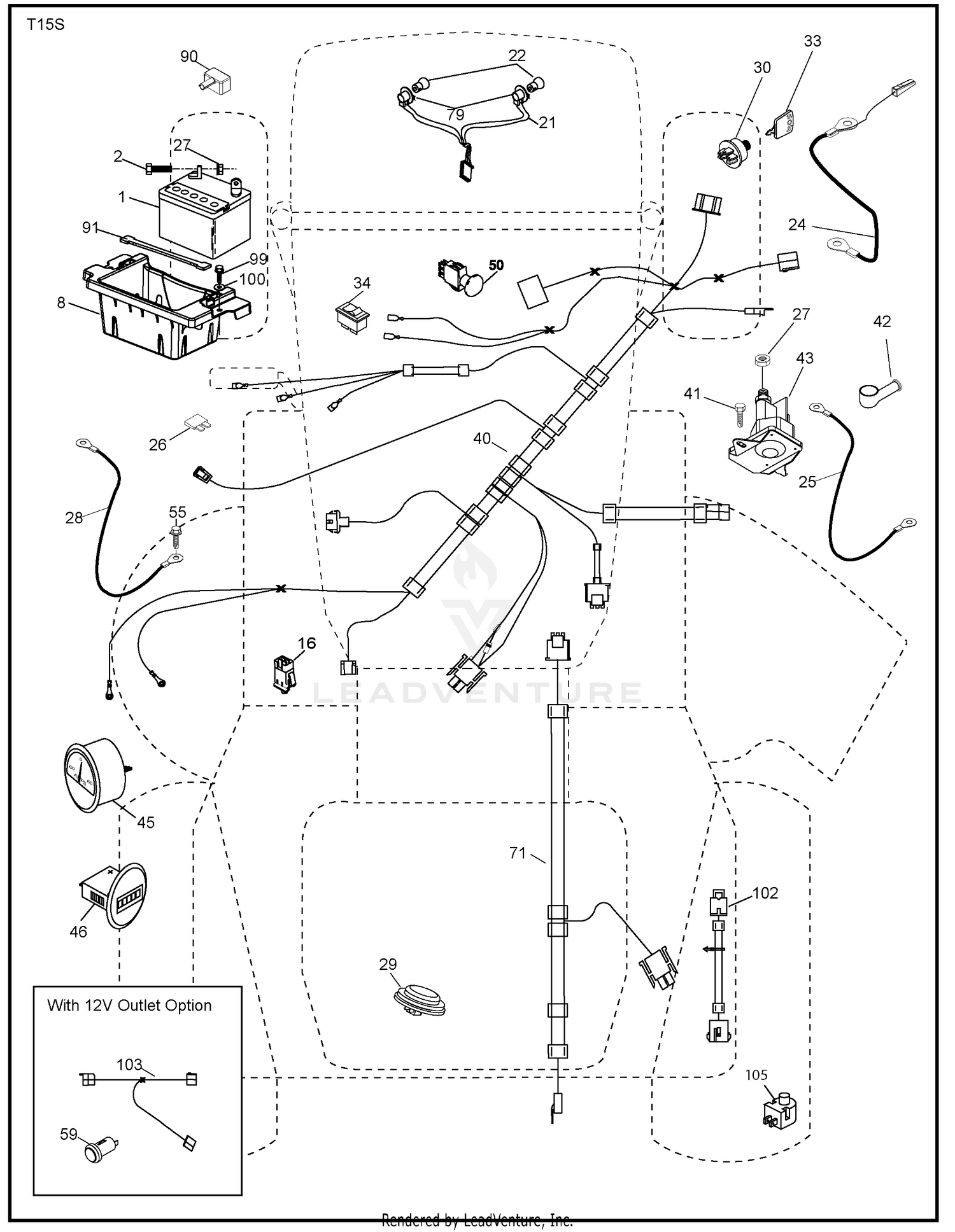

| Ref | Part Number | Description |
|---|
| 1 |
353-947 |
CAP-DUST, RUBBER Price: $7.73 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
237-65 |
O-RING Price: $2.50 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 4 |
237-80 |
O-RING Price: $6.10 |
| 5 |
237-22 |
O-RING Price: $2.43 |
| 6 |
324-4 |
SCREW-HH Price: $0.95 |
| 8 |
237-30 |
O-RING Price: $2.50 |
| 8 |
532414126 |
TRAY.ASM.BATTERY.FRT.TEX.CARB Price: $32.99 |
| 9 |
322-2 |
SCREW-HH Price: $0.69 |
| 10 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 11 |
2412-104 |
CLAMP-R Price: $2.37 |
| 12 |
32128-20 |
NUT-HF Price: $0.99 |
| 13 |
340-155 |
FITTING-STRAIGHT Price: $28.90 |
| 14 |
237-79 |
O-RING Price: $5.46 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 16 |
88-1290-03 |
BRACKET-ROD, SEAT This part replaces 88-1290. Price: $14.31 |
| 17 |
321-15 |
SCREW-HH Price: $0.61 |
| 18 |
322-6 |
SCREW-HH Price: $0.45 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 21 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
76-9970 |
FOUR WHEEL DRIVE VALVE ASM Price: $1,652.64 |
| 23 |
340-55 |
FITTING-HYD, 45 DEG Price: $85.06 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $7.99 |
| 25 |
92-5828 |
HOSE ASM This part replaces 86-2910. Price: $181.46 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 26 |
86-2710 |
HOSE ASM Price: $149.65 |
| 27 |
340-157 |
FITTING-HYD, TEE Price: $49.83 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 29 |
84-0720 |
VALVE-FUSE, VELOCITY Price: $407.33 |
| 30 |
340-165 |
FITTING-HYD, ELBOW Price: $54.87 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
340-7 |
FITTING-STRAIGHT Price: $14.00 |
| 32 |
354-77 |
FITTING-QUICK Price: $55.94 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 34 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 35 |
354-78 |
FITTING-STR Price: $49.33 |
| 36 |
237-146 |
O-RING Price: $3.75 |
| 37 |
340-18 |
FITTING-HYD, 90 DEG Price: $38.93 |
| 38 |
86-5500 |
DISCONTINUED Price: Call Us |
| 39 |
86-3150 |
HOSE ASM Price: $122.60 |
| 40 |
340-159 |
FITTING-HYD, 90 DEG Price: $55.33 |
| 40 |
532402167 |
HARNESS IGN. DASH Price: $99.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 41 |
86-5810 |
DISCONTINUED Price: Call Us |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 45 |
529910801 |
AMMETER This part replaces 532425270. Price: $27.99 |
| 46 |
529910701 |
HOUR METER This part replaces 532425271. Price: $69.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532400724 |
COVER.TERMINAL.BATTERY Price: $3.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 103 |
532421747 |
HARNESS.PIGTAIL.12V.OUTLET. Price: $12.99 |
